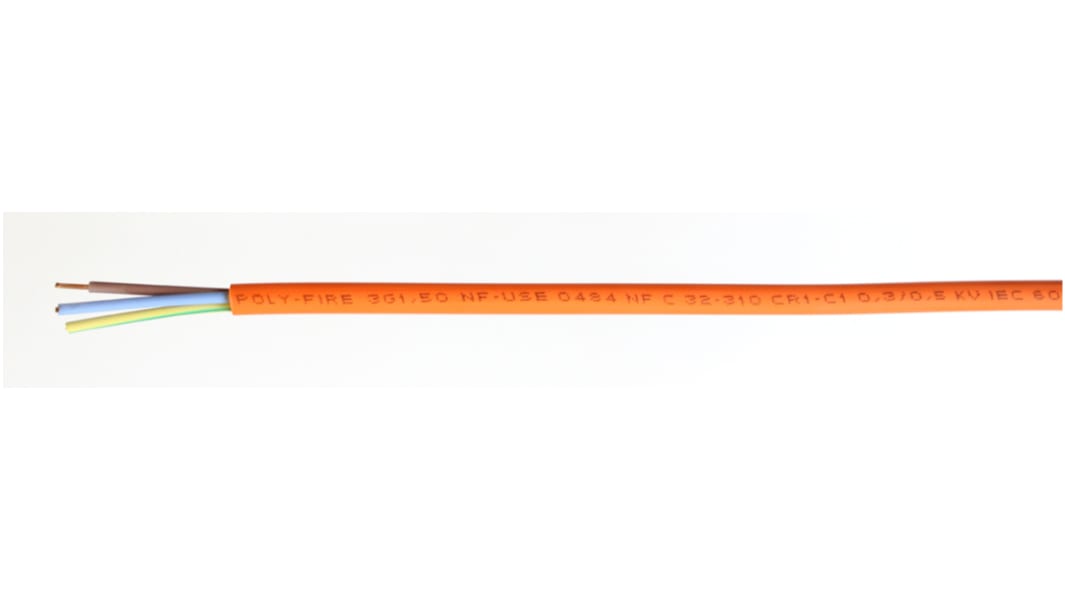

RS PRO, CR1/C1, 100m 3 Core, Orange Polyolefin Power Cable +90°C
- RS Stock No.:
- 136-8150
- Manufacturer:
- RS PRO
Subtotal (1 reel of 100 metres)**
TWD18,169.00
(exc. GST)
TWD19,077.45
(inc. GST)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD1,300.00 (ex VAT)
Reel(s) | Per Reel | Per Metre** |
|---|---|---|
| 1 - 4 | TWD18,169.00 | TWD181.69 |
| 5 + | TWD14,953.00 | TWD149.53 |
**price indicative
- RS Stock No.:
- 136-8150
- Manufacturer:
- RS PRO
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Cross Sectional Area | 1.5 mm² | |
| Number of Cores | 3 | |
| Sheath Colour | Orange | |
| Length | 100m | |
| Armoured | No | |
| Cable Type | CR1/C1 | |
| Current Rating | 10 A | |
| Sheath Material | Polyolefin | |
| Outer Diameter | 8.4mm | |
| Voltage Rating | 300 V, 500 V | |
| Conductor Strand Type | Solid | |
| Fire Behaviour | Fire Resistant | |
| Maximum Operating Temperature | +90°C | |
| Standards Met | NF C 32-013 Class 1 or IEC 60228 Class 2, NF C 32-070 Fire Retardant, NF C 32-310, NF C 32-310 Fire Resistant, NF EN 50267 2-1 No toxic no Corrosives Smoke, NF EN 50267-2-2 Halogen Free, NF EN 50268-2 Low smoke, NFC32-070 and Conform with IEC60332-1 | |
| Conductor Material | Copper | |
| Minimum Operating Temperature | -20°C | |
| Insulation Material | Polyolefin | |
| Number of Strands | 1 | |
| Series | CRCA | |
| American Wire Gauge | 15 AWG | |
| Cable Shape | Multi-Conductor | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Cross Sectional Area 1.5 mm² | ||
Number of Cores 3 | ||
Sheath Colour Orange | ||
Length 100m | ||
Armoured No | ||
Cable Type CR1/C1 | ||
Current Rating 10 A | ||
Sheath Material Polyolefin | ||
Outer Diameter 8.4mm | ||
Voltage Rating 300 V, 500 V | ||
Conductor Strand Type Solid | ||
Fire Behaviour Fire Resistant | ||
Maximum Operating Temperature +90°C | ||
Standards Met NF C 32-013 Class 1 or IEC 60228 Class 2, NF C 32-070 Fire Retardant, NF C 32-310, NF C 32-310 Fire Resistant, NF EN 50267 2-1 No toxic no Corrosives Smoke, NF EN 50267-2-2 Halogen Free, NF EN 50268-2 Low smoke, NFC32-070 and Conform with IEC60332-1 | ||
Conductor Material Copper | ||
Minimum Operating Temperature -20°C | ||
Insulation Material Polyolefin | ||
Number of Strands 1 | ||
Series CRCA | ||
American Wire Gauge 15 AWG | ||
Cable Shape Multi-Conductor | ||
