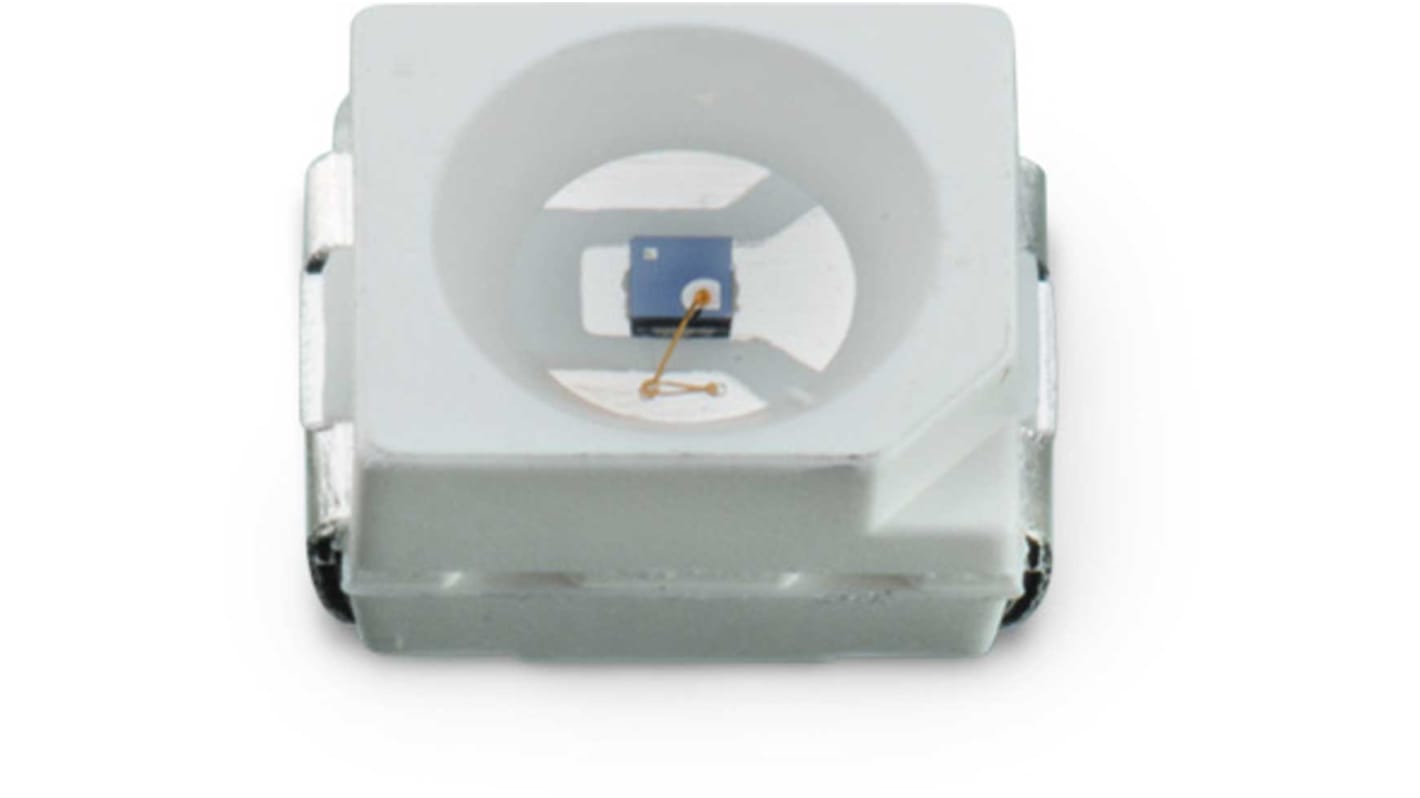

1541411NBA210 Wurth Elektronik, WL-STTW 120 ° IR + Visible Light Phototransistor, Surface Mount 2-Pin 3528 package
- RS Stock No.:
- 184-6983
- Mfr. Part No.:
- 1541411NBA210
- Manufacturer:
- Wurth Elektronik
Temporarily out of stock - back order for despatch 17/09/2024, delivery within 6 working days
Added
Price (VAT excluded) Each (On a Reel of 2000)
TWD7.80
(exc. GST)
TWD8.19
(inc. GST)
Units | Per unit | Per Reel* |
2000 - 2000 | TWD7.80 | TWD15,600.00 |
4000 - 6000 | TWD7.60 | TWD15,200.00 |
8000 + | TWD7.40 | TWD14,800.00 |
*price indicative |
- RS Stock No.:
- 184-6983
- Mfr. Part No.:
- 1541411NBA210
- Manufacturer:
- Wurth Elektronik
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
High sensitivity
Fast response time
Perfect match with IR and visible emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
Fast response time
Perfect match with IR and visible emitter
compatible with automatic placement machines
High reliability
Standard PLCC 2 package
Applications
Light sensors
Position sensors
Counters
Miniature switch
Encoder
Photo interrupter
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Specifications
Attribute | Value |
---|---|
Spectrums Detected | Infrared, Visible Light |
Number of Channels | 1 |
Maximum Dark Current | 100 (Collector Emitter)nA |
Angle of Half Sensitivity | 120 ° |
Polarity | NPN |
Number of Pins | 2 |
Mounting Type | Surface Mount |
Package Type | 3528 |
Dimensions | 3.5 x 2.8 x 1.9mm |
Collector Current | 20mA |
Maximum Wavelength Detected | 1100nm |
Minimum Wavelength Detected | 400nm |
Spectral Range of Sensitivity | 400 → 1100 nm |
Height | 1.9mm |
Width | 2.8mm |
Output Signal Type | PLCC |
Emitter Collector Voltage | 5V |
Collector Emitter Voltage | 35V |
Length | 3.5mm |
Series | WL-STTW |
