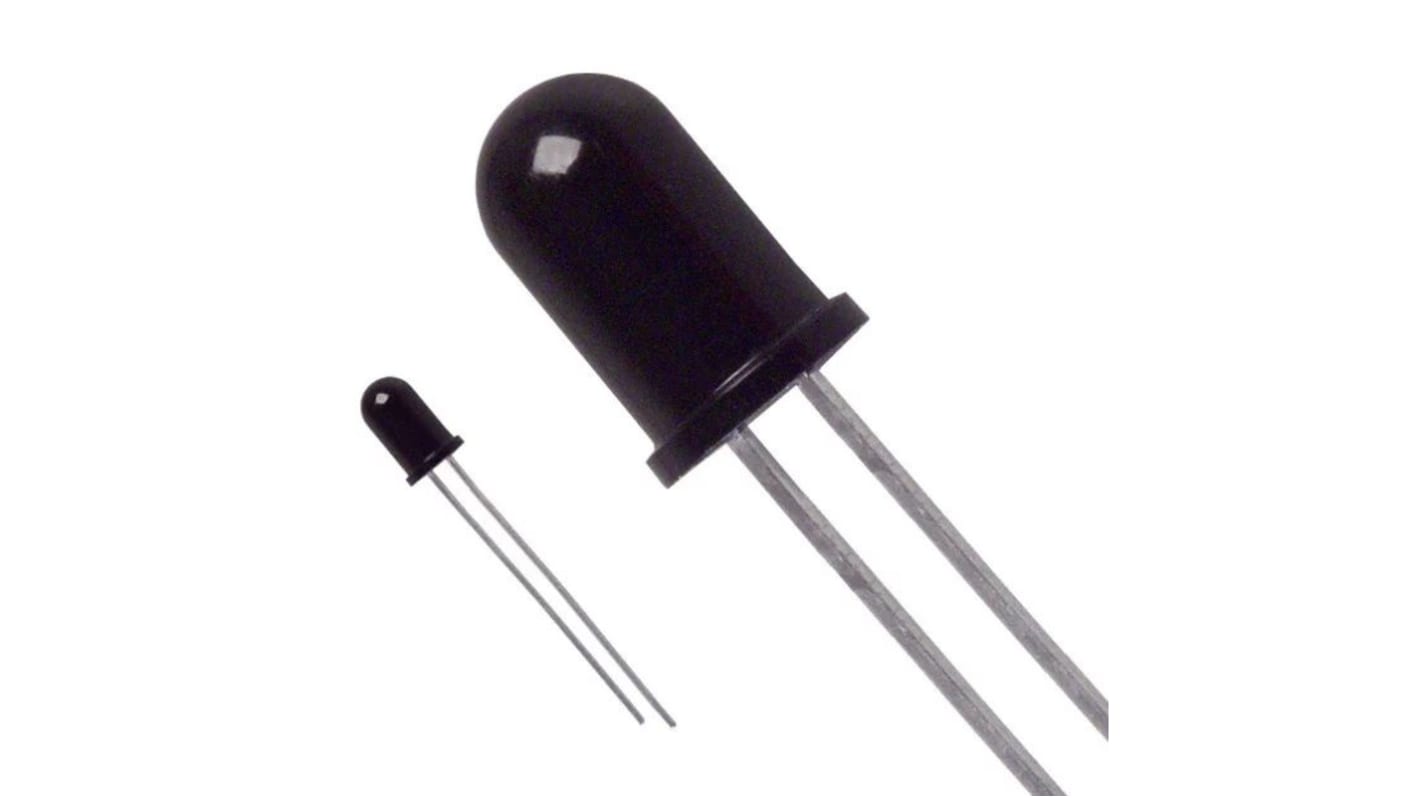

QSD124 onsemi, ±12 ° IR Phototransistor, Through Hole 2-Pin T-1 3/4 package

RS Stock No.:: 184-1084
Mfr. Part No.:: QSD124
Manufacturer:: onsemi

QSD124 onsemi, ±12 ° IR Phototransistor, Through Hole 2-Pin T-1 3/4 package

Temporarily out of stock - back order for despatch 22/05/2024, delivery within 6 working days

Added

Price (VAT excluded) Each (In a Bag of 250)

TWD10.80

(exc. GST)

TWD11.34

(inc. GST)

Units	Per unit	Per Bag*
250 - 250	TWD10.80	TWD2,700.00
500 - 750	TWD10.40	TWD2,600.00
1000 +	TWD10.10	TWD2,525.00
*price indicative

RS Stock No.:: 184-1084
Mfr. Part No.:: QSD124
Manufacturer:: onsemi

Product overview and Technical data sheets

Datasheet QSD124

Legislation and Compliance

Product Details

The QSD122, QSD123, QSD124 is a silicon phototransistor encapsulated in an infrared transparent, black T-1 3/4 package.

NPN silicon phototransistor
Package type: T-1 3/4
Notched emitter: QED12X/QED22X/QED23X
Narrow reception angle: 24°C
Daylight filter
Package material and colour: black epoxy
High sensitivity
Applications:
This product is general usage and suitable for many different applications.

For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.

Specifications

Attribute	Value
Spectrums Detected	Infrared
Typical Fall Time	7µs
Typical Rise Time	7µs
Number of Channels	1
Maximum Dark Current	100nA
Angle of Half Sensitivity	±12 °
Number of Pins	2
Mounting Type	Through Hole
Package Type	T-1 3/4
Dimensions	6.1 Dia. x 8.77mm
Collector Current	39mA
Diameter	6.1mm
Spectral Range of Sensitivity	880 nm
Maximum Wavelength Detected	880nm
Collector Emitter Voltage	30V
Saturation Voltage	0.4V
Emitter Collector Voltage	5V
Output Signal Type	Phototransistor
Height	8.77mm
