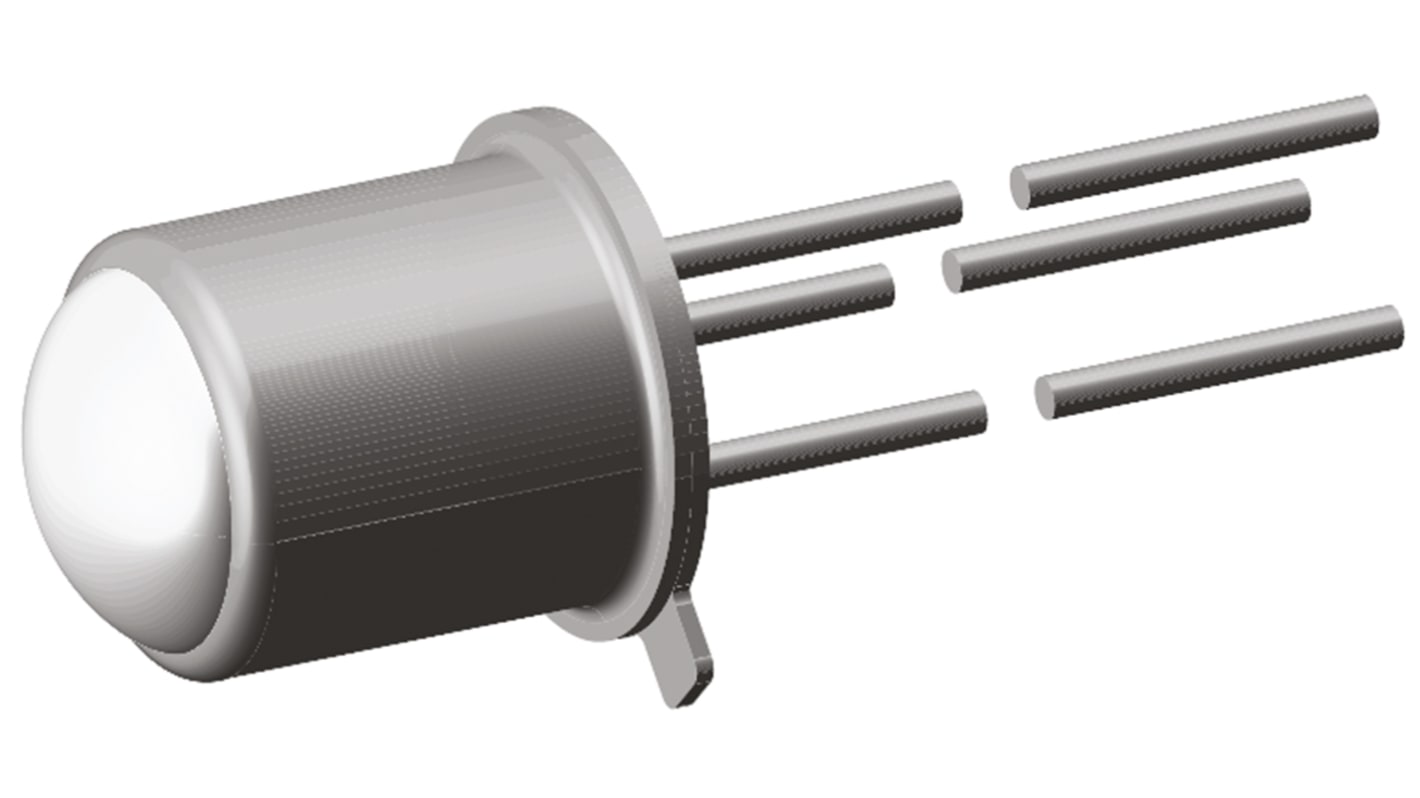

BPW76B Vishay, ±40 ° IR + Visible Light Phototransistor, Through Hole 3-Pin TO-18 package
- RS Stock No.:
- 165-6189
- Mfr. Part No.:
- BPW76B
- Manufacturer:
- Vishay
The image is for reference only, please refer to product details and specifications
Temporarily out of stock - back order for despatch 18/01/2027, delivery within 6 working days
Added
Price (VAT excluded) Each (In a Bag of 1000)
TWD52.60
(exc. GST)
TWD55.23
(inc. GST)
| Units | Per unit | Per Bag* |
| 1000 - 4000 | TWD52.60 | TWD52,600.00 |
| 5000 + | TWD50.00 | TWD50,000.00 |
| *price indicative | ||
- RS Stock No.:
- 165-6189
- Mfr. Part No.:
- BPW76B
- Manufacturer:
- Vishay
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- PH
Product Details
BPW76A and BPW76B Series Phototransistors
The BPW76A and BPW76B series, from Vishay Semiconductor, are a family of silicon NPN phototransistors. They are in hermetically sealed TO-18 packages with a glass window. They are sensitive to both visible and near IR radiation. The BPW76A and BPW76B phototransistors are ideal for use as detectors in electronic control and drive circuits.
Features of the BPW76A and BPW76B phototransistors:
TO-18 package
Through-hole mounting
4.7mm diameter
High photo sensitivity
High radiant sensitivity
Angle of half intensity: 40°
Operating temperature: -40 to +125 °C
TO-18 package
Through-hole mounting
4.7mm diameter
High photo sensitivity
High radiant sensitivity
Angle of half intensity: 40°
Operating temperature: -40 to +125 °C
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, Vishay Semiconductor
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Visible Light |
| Typical Fall Time | 5µs |
| Typical Rise Time | 6µs |
| Number of Channels | 1 |
| Maximum Light Current | 600µA |
| Maximum Dark Current | 100nA |
| Angle of Half Sensitivity | ±40 ° |
| Polarity | NPN |
| Number of Pins | 3 |
| Mounting Type | Through Hole |
| Package Type | TO-18 |
| Dimensions | 4.7 x 5.2mm |
| Collector Current | 50mA |
| Spectral Range of Sensitivity | 450 → 1080 nm |
| Minimum Wavelength Detected | 450nm |
| Maximum Wavelength Detected | 1080nm |
| Diameter | 4.7mm |
| Height | 5.2mm |
