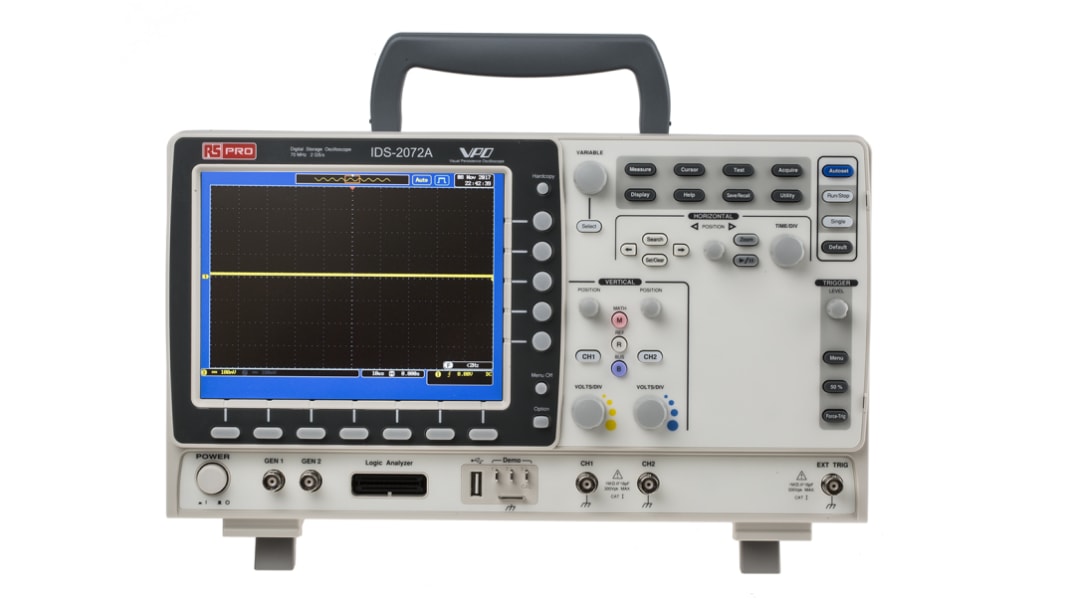

RS PRO IDS2072A, 70MHz Bench Oscilloscope, 2 Analogue Channels
- RS Stock No.:
- 123-3547
- Manufacturer:
- RS PRO
Discontinued product
Alternative
RS PRO IDS1072B Digital Bench Oscilloscope, 2 Analogue Channels, 70MHz
TWD17,734.00
Each
RS Stock No.: 123-3541
- RS Stock No.:
- 123-3547
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- TW
RS PRO IDS2072A Portable Digital Storage Oscilloscope, 70 MHz, 2 Channels
Looking for a versatile handheld oscilloscope to measure the voltage of an electrical signal as it changes in time? Oscilloscopes like this RS PRO portable digital storage device allow you to analyse and understand the behaviour of your electronic circuits by graphically displaying electrical signals.
This oscilloscope features visual persistence oscilloscope (VPO) technology that applies a grayscale display of electric waveforms to differentiate signals from one another based on their occurrence frequencies. It also allows you to use different colour modes to distinguish the occurrence frequencies among various waveforms on the high-resolution thin-film-transistor liquid-crystal (TFT LCD) display, so you can be sure your readings are accurate and well visible.
You can navigate the waveforms display using the zoom feature and the play/pause button. The oscilloscope has a very fast waveform update rate which guarantees you can accurately examine inrush signals and elusive glitches without missing any detail. You can see oscilloscopes generally used in electronic and electrical engineering and diagnostic, defect debugging and system development.
This oscilloscope features visual persistence oscilloscope (VPO) technology that applies a grayscale display of electric waveforms to differentiate signals from one another based on their occurrence frequencies. It also allows you to use different colour modes to distinguish the occurrence frequencies among various waveforms on the high-resolution thin-film-transistor liquid-crystal (TFT LCD) display, so you can be sure your readings are accurate and well visible.
You can navigate the waveforms display using the zoom feature and the play/pause button. The oscilloscope has a very fast waveform update rate which guarantees you can accurately examine inrush signals and elusive glitches without missing any detail. You can see oscilloscopes generally used in electronic and electrical engineering and diagnostic, defect debugging and system development.
Features and Benefits
• Bandwidth of 70 MHz
• Can interface
• Digital
• Dimensions of 380 (length) x 144.4 (width) x 220 mm (height)
• LCD display type
• Lin interface
• Maximum operating temperature of +50°C
• Minimum operating temperature of 0°C
• Maximum time base of 100 s/div
• Minimum time base of 1 ns/div
• Maximum vertical sensitivity of 10 V/div
• Minimum vertical sensitivity of 1 mV/div
• Two channels
• Digital storage
• Portable
• Europe, UK plug type
• Mains power source
• Record length of 2 M points
• Rise time of 5 ns
• Rs232 interface
• CAT I 300 V, CAT II 300 V safety category
• CAT I, CAT II safety category level
• Safety category voltage of 300 V
• Sample rate random of 2 GSa/s
• Screen size of 8 in
• USB interface
• Vertical resolution of 8 bit
• Weight of 4.2 kg
• Can interface
• Digital
• Dimensions of 380 (length) x 144.4 (width) x 220 mm (height)
• LCD display type
• Lin interface
• Maximum operating temperature of +50°C
• Minimum operating temperature of 0°C
• Maximum time base of 100 s/div
• Minimum time base of 1 ns/div
• Maximum vertical sensitivity of 10 V/div
• Minimum vertical sensitivity of 1 mV/div
• Two channels
• Digital storage
• Portable
• Europe, UK plug type
• Mains power source
• Record length of 2 M points
• Rise time of 5 ns
• Rs232 interface
• CAT I 300 V, CAT II 300 V safety category
• CAT I, CAT II safety category level
• Safety category voltage of 300 V
• Sample rate random of 2 GSa/s
• Screen size of 8 in
• USB interface
• Vertical resolution of 8 bit
• Weight of 4.2 kg
Attribute | Value |
---|---|
Bandwidth | 70MHz |
Number of Analogue Channels | 2 |
Oscilloscope Type | Bench |
Oscilloscope Form | Digital Storage |
Interface | CAN, LIN, RS232, USB |
Sample Rate Random | 2 Gsps |
Screen Size | 8in |
Record Length | 2M points |
Maximum Vertical Sensitivity | 10V/div |
Power Source | Mains |
Dimensions | 380 x 144.4 x 220mm |
Vertical Resolution | 8 bit |
Plug Type | Europe, UK |
Weight | 4.2kg |
Minimum Vertical Sensitivity | 1mV/div |
Digital/Analogue | Digital |
Minimum Time Base | 1ns/div |
Maximum Time Base | 100s/div |
Display Type | LCD |
Rise Time | 5ns |
Safety Category | CAT I 300 V, CAT II 300V |
