RS PRO Bevel Gear, 5mm Bore, 15 Teeth, 1.0 Module
- RS Stock No.:
- 182-7993
- Manufacturer:
- RS PRO
Stock check temporarily unavailable - call for stock availability
Added
Price (VAT excluded) Each (In a Pack of 2)
TWD116.00
(exc. GST)
TWD121.80
(inc. GST)
| Units | Per unit | Per Pack* |
| 2 - 8 | TWD116.00 | TWD232.00 |
| 10 - 48 | TWD112.00 | TWD224.00 |
| 50 + | TWD91.50 | TWD183.00 |
| *price indicative | ||
- RS Stock No.:
- 182-7993
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
Product Details

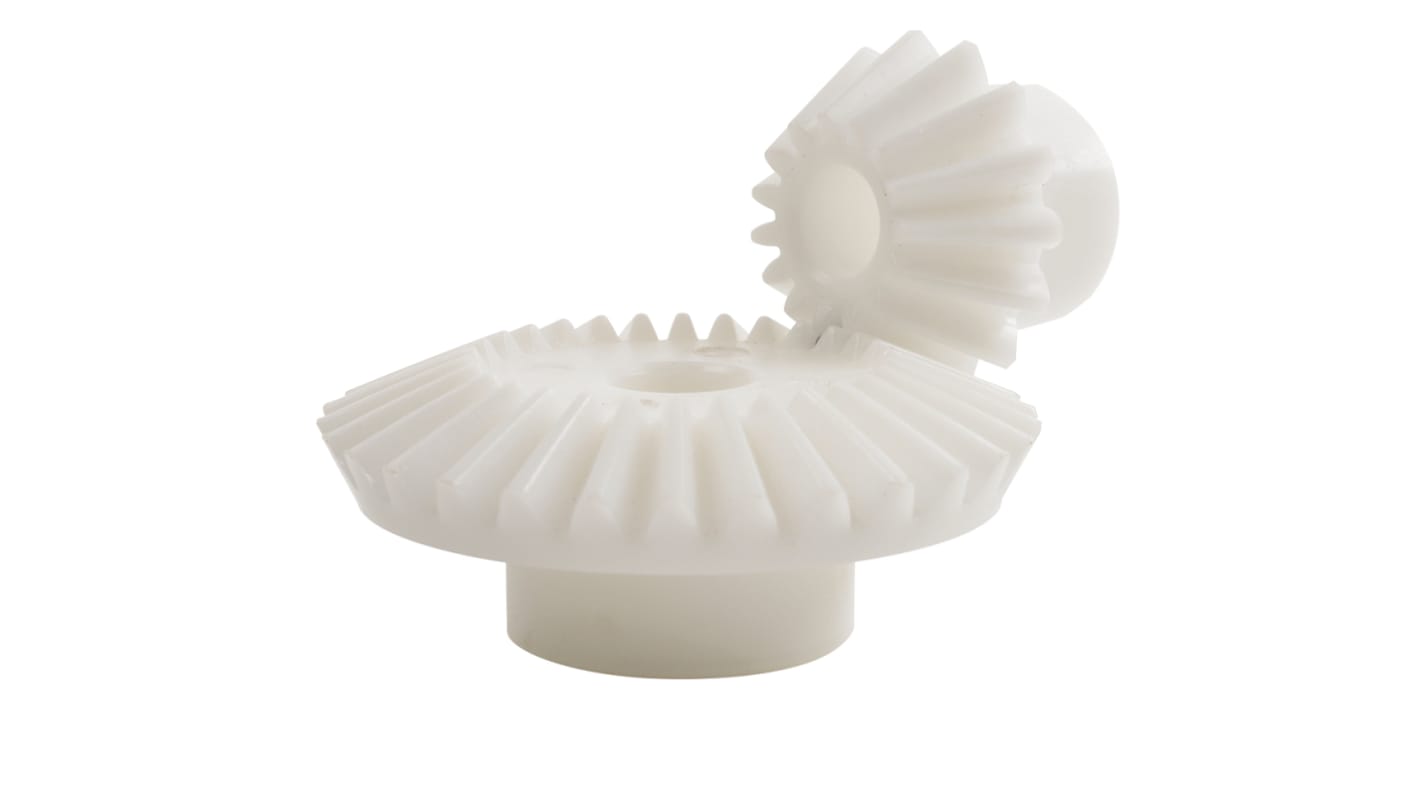

RS PRO Hostaform Bevel Gear
The RS PRO 2:1 metric moulded bevel gear is made from white HOSTAFORM®C. It has a pitch module of 1 and 15 teeth.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.
Other Information:
What are bevel gears?
Bevel Gear is a cone-shaped gear, which transmits power between two intersecting axels.
Why choose HOSTAFORM® gears?
HOSTAFORM® is a semi-crystalline, thermoplastic polymer. It is a versatile engineering plastic with good wear resistance, hardness, rigidity, excellent dimensional stability, long-term creep resistance and outstanding resistance to moisture, alkaline solutions, fuels and many chemicals.
Features and Benefits
• Standard tolerances, unless otherwise stated 0.25mm
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20 pressure angle
• Shaft axis to intersect within 0.025mm
• Angular accuracy between shafts 5mins
• Mounting distance tolerance 0.05mm
• Bore tolerance H8
• Cut to the Gleason System
• 20 pressure angle
Certifications
• EN certified
• DIN 3964
• DIN 3967
• DIN 3971
• DIN 3964
• DIN 3967
• DIN 3971
Specifications
Attribute | Value |
|---|---|
| Bore | 5mm |
| Module | 1.0 |
| Gear Type | Bevel |
| Number of Teeth | 15 |
| Nominal Gear Ratio | 2:1 |
| Pitch | 1mm |
| Pressure Angle | 20° |
