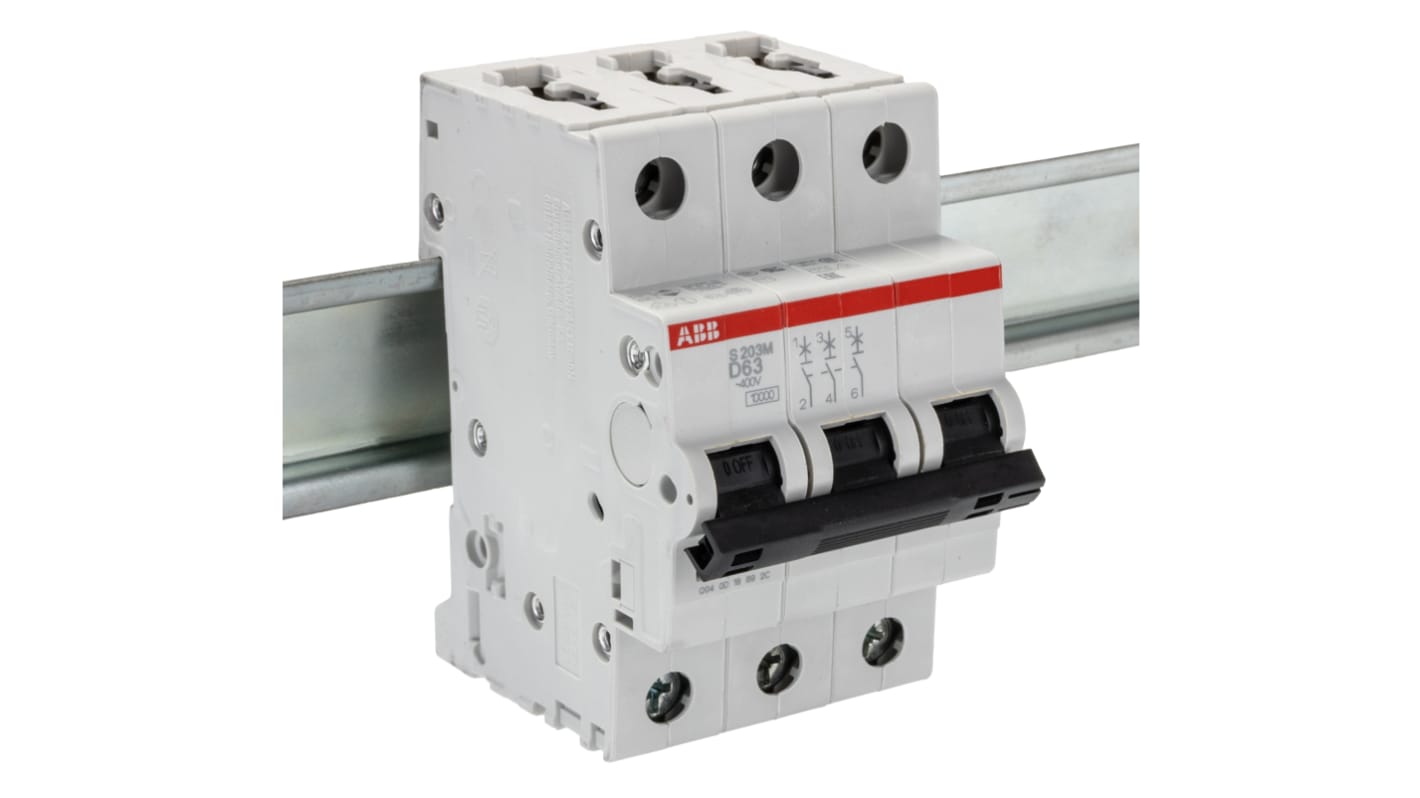

ABB System Pro M Compact S200M MCB, 3P, 63A Curve D, 400V AC, 15 kA Breaking Capacity

RS Stock No.:: 746-8191
Mfr. Part No.:: 2CDS273001R0631 S203M-D63
Manufacturer:: ABB

ABB System Pro M Compact S200M MCB, 3P, 63A Curve D, 400V AC, 15 kA Breaking Capacity

View all MCBs

Price Each**

TWD3,414.00

(exc. GST)

TWD3,584.70

(inc. GST)

3 In stock for delivery within 6 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over TWD2,857.00 (ex VAT)

Units	Per unit
1 +	TWD3,414.00

**price indicative

RS Stock No.:: 746-8191
Mfr. Part No.:: 2CDS273001R0631 S203M-D63
Manufacturer:: ABB

Type D Triple Pole 10kA - System Pro M Compact

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

ABB S200M Series MCB, 63A Current Rating, 15kA Breaking Capacity (at Maximum Voltage Rating) - 2CDS273001R0631 S203M-D63

This versatile device is essential for protecting electrical circuits in commercial and industrial environments. Acting as a circuit breaker, it effectively intervenes during overloads and short circuits to safeguard equipment and systems. Its robust design and advanced features make it a practical choice for reliable short circuit protection.

Features & Benefits

• Current rating of 63A for handling substantial electrical loads
• 15kA breaking capacity to manage fault conditions
• Type D characteristics suitable for high inrush current Applications
• Thermal electromechanical mechanism for precise tripping
• Designed for hassle-free installation on a DIN rail
• Secure screw terminal contacts for reliable wiring connections

Applications

• Protecting lighting circuits in commercial properties
• Providing machinery overload protection in industrial settings
• Ensuring safe operation of electrical equipment in control panels
• Managing circuits effectively within distribution boards

How does the device protect against short circuits?

It disconnects the circuit immediately upon detecting an overload or fault, thus preventing damage.

What type of wiring is suitable for connections?

The device features screw terminal connections, accommodating various wiring types.

Can this device be used in residential applications?

While primarily intended for commercial and industrial use, it is suitable for larger residential systems as well.

What is the required installation method for this circuit breaker?

It easily mounts on standard DIN rail systems for straightforward installation.

How often should this device be inspected for proper functioning?

Regular inspections should be part of routine electrical maintenance to ensure continued reliability.

Attribute	Value
Number of Poles	3P
Current Rating	63A
Tripping Characteristics	Type D
Rated AC Voltage	400V
Breaking Capacity at Maximum Voltage Rating	15 kA
Range	System Pro M Compact
Series	S200M
Circuit Breaker Type	MCB
Length	88mm
Width	52.5mm
Mounting Style	DIN Rail Mount
Depth	69mm
Model Number	S203M-D63
Terminal Contact Type	Screw
Special Features	Short Circuit Protection
Reset Actuator Type	Lever
Application	Commercial, Industrial
