ams OSRAM 2.15 V Red LED PLCC 6 Surface Mount Advanced Power TOPLED LS G6SP-CADB-1-1
- RS Stock No.:
- 778-1315
- Mfr. Part No.:
- LS G6SP-CADB-1-1
- Manufacturer:
- ams OSRAM

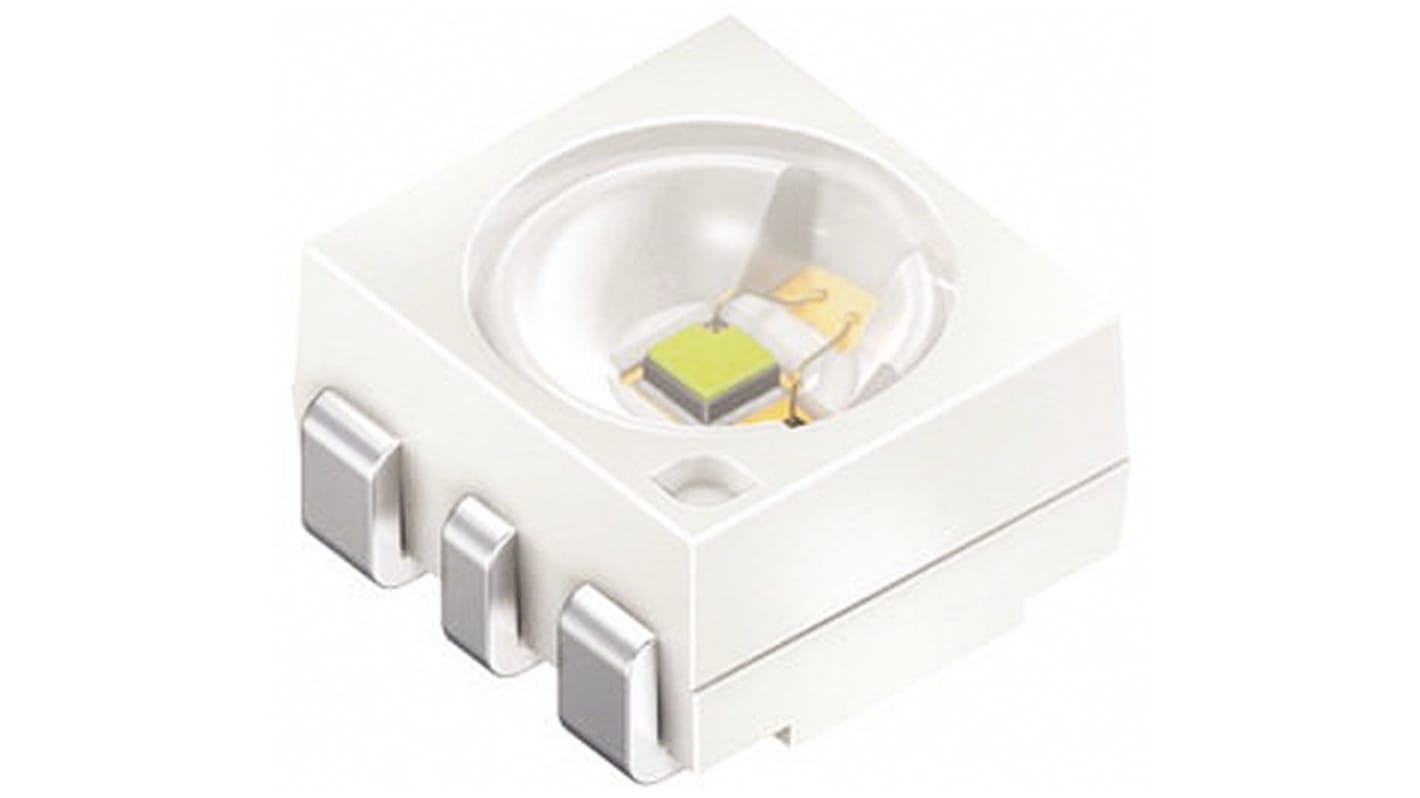

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 pack of 10 units)*
TWD154.00
(exc. GST)
TWD161.70
(inc. GST)
FREE delivery for orders over NT$1,300.00
Temporarily out of stock
- 310 unit(s) shipping from March 12, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 240 | TWD15.40 | TWD154.00 |
| 250 - 490 | TWD15.00 | TWD150.00 |
| 500 + | TWD14.90 | TWD149.00 |
*price indicative
- RS Stock No.:
- 778-1315
- Mfr. Part No.:
- LS G6SP-CADB-1-1
- Manufacturer:
- ams OSRAM
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ams OSRAM | |
| Product Type | LED | |
| LED Colour | Red | |
| Package Type | PLCC 6 | |
| Maximum Forward Current | 200mA | |
| Mount Type | Surface Mount | |
| Packaging | Tape & Reel | |
| Forward Voltage | 2.15V | |
| Number of Pins | 6 | |
| Viewing Angle | 20 ° | |
| Lens Dimensions | 2.4 x 2.1 mm | |
| LED Luminosity | 7100 mcd | |
| LED Luminous Flux | 13.4 lm | |
| Lens Shape | Round | |
| Dominant Wavelength | 630 nm | |
| Standards/Approvals | RoHS | |
| Series | Advanced Power TOPLED | |
| Lens Colour | Clear | |
| Lens Finish | Clear | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand ams OSRAM | ||
Product Type LED | ||
LED Colour Red | ||
Package Type PLCC 6 | ||
Maximum Forward Current 200mA | ||
Mount Type Surface Mount | ||
Packaging Tape & Reel | ||
Forward Voltage 2.15V | ||
Number of Pins 6 | ||
Viewing Angle 20 ° | ||
Lens Dimensions 2.4 x 2.1 mm | ||
LED Luminosity 7100 mcd | ||
LED Luminous Flux 13.4 lm | ||
Lens Shape Round | ||
Dominant Wavelength 630 nm | ||
Standards/Approvals RoHS | ||
Series Advanced Power TOPLED | ||
Lens Colour Clear | ||
Lens Finish Clear | ||
Automotive Standard No | ||
OSRAM Advanced Power TOPLED Series
The Advanced Power TOPLED series of LEDs, from Osram, delivers high light output and luminous efficency. The LED’s compact package provides very low thermal resistance and excellent heat dissipation. This mid-power LED sits between OSRAM's Power TOPLED and Golden DRAGON series. Available in a variety of colour options, the Advanced Power TOPLED series can be mounted easily to a PCB, offering design flexibility. The Advanced Power TOPLED is suitable for many applications including: Display backlighting, micro incandescent lamp replacement, indoor displays, signal and symbol illumination, portable lamps, fibre-optic sources, automotive lighting and marker lights.
Features of the Advanced Power TOPLED:
Mid-power LED
Maximum power from the standard TOPLED package
3.5 x 3.2 x 2.0 mm PLCC-6 package size
Viewing angle 120°
Low thermal resistance
High optical power
Up to 50,000 hours lifetime
Note
Amber LEDs – Originally designed for use in automotive brake-light applications, OSRAM amber LEDs can appear red due to a high dominant wavelength value. Refer to a dominant wavelength colour chart to find your chosen LED colour.
