Broadcom 2.9 V RGB LED PLCC 6 Surface ASMB-TTF0-0A20B ASMB-TTF0-0A20B
- RS Stock No.:
- 208-0514
- Mfr. Part No.:
- ASMB-TTF0-0A20B
- Manufacturer:
- Broadcom

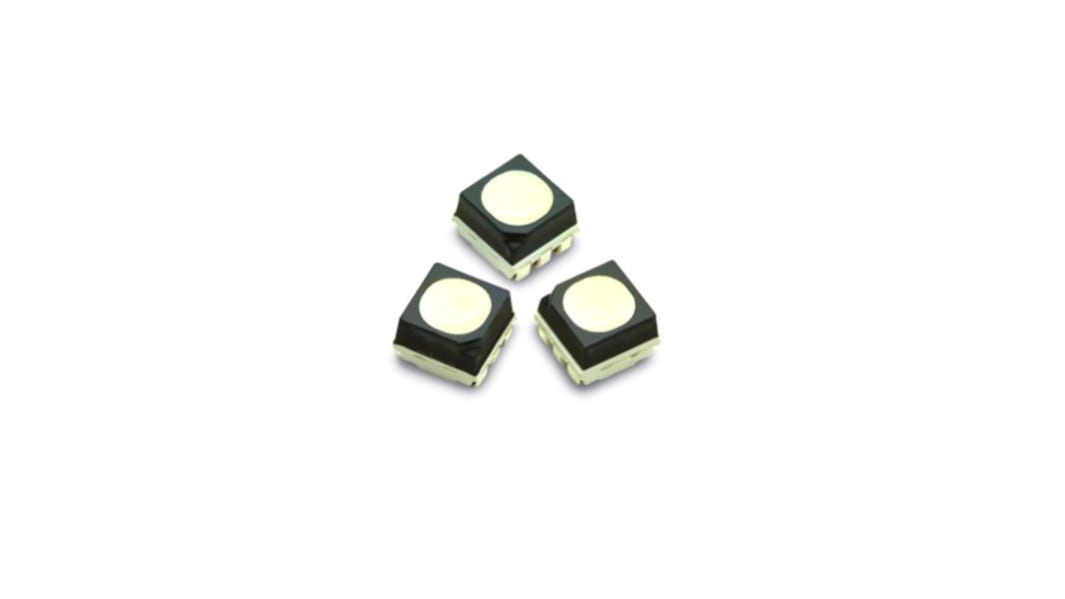

The image is for reference only, please refer to product details and specifications
Get a bulk buy discount
Add 750 more to save TWD225.00
View bulk pricing optionsSubtotal (1 pack of 50 units)*
TWD715.00
(exc. GST)
TWD751.00
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- 200 unit(s) ready to ship from another location
- Plus 19,500 unit(s) shipping from November 17, 2026
- Plus 12,000 unit(s) shipping from December 28, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 50 - 700 | TWD14.30 | TWD715.00 | - |
| 750 - 1450 | TWD14.00 | TWD700.00 | TWD225.00 |
| 1500 + | TWD13.70 | TWD685.00 | TWD900.00 |
*price indicative
- RS Stock No.:
- 208-0514
- Mfr. Part No.:
- ASMB-TTF0-0A20B
- Manufacturer:
- Broadcom
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| LED Colour | Blue, Green, Red | |
| Product Type | LED | |
| Package Type | PLCC 6 | |
| Maximum Forward Current | 30mA | |
| Mount Type | Surface | |
| Packaging | Tape and Reel | |
| Number of LEDs | 3 | |
| Forward Voltage | 2.9V | |
| Maximum Power Dissipation | 120mW | |
| Number of Pins | 6 | |
| Viewing Angle | 110 ° | |
| LED Luminosity | 990;2470;572 mcd | |
| Lens Dimensions | 3.7 x 3.5 mm | |
| Lens Shape | Rectangular | |
| Dominant Wavelength | 628nm | |
| Standards/Approvals | RoHS | |
| Series | ASMB-TTF0-0A20B | |
| Lens Colour | Clear | |
| Lens Finish | Diffused Encapsulation | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
LED Colour Blue, Green, Red | ||
Product Type LED | ||
Package Type PLCC 6 | ||
Maximum Forward Current 30mA | ||
Mount Type Surface | ||
Packaging Tape and Reel | ||
Number of LEDs 3 | ||
Forward Voltage 2.9V | ||
Maximum Power Dissipation 120mW | ||
Number of Pins 6 | ||
Viewing Angle 110 ° | ||
LED Luminosity 990;2470;572 mcd | ||
Lens Dimensions 3.7 x 3.5 mm | ||
Lens Shape Rectangular | ||
Dominant Wavelength 628nm | ||
Standards/Approvals RoHS | ||
Series ASMB-TTF0-0A20B | ||
Lens Colour Clear | ||
Lens Finish Diffused Encapsulation | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Broadcom ASMB-TTF0-0A20B Series LED, 110° Viewing Angle, 3.7x3.5mm Lens Dimensions - ASMB-TTF0-0A20B
This LED is a surface-mount multicolour light-emitting diode designed for Compact indicator and signalling tasks in electronic assemblies. It delivers focused Visual output through a diffused rectangular lens and is supplied in high-volume tape-and-reel packaging for automated placement.
Features and Benefits:
• Supports 30 mA forward current for reliable drive capability
• Emits high luminous outputs for clear indication performance
• Offers a 110° viewing angle for broad visibility
• Diffused rectangular lens reduces glare and softens output
• Maximum power dissipation 120 mW minimises thermal stress
• Emits high luminous outputs for clear indication performance
• Offers a 110° viewing angle for broad visibility
• Diffused rectangular lens reduces glare and softens output
• Maximum power dissipation 120 mW minimises thermal stress
Applications
• Suitable for status indicators on industrial control panels
• Ideal for panel illumination in instrumentation displays
• Used for multicolour signalling in consumer electronics
• Can be used for Visual alerts in medical devices
• Ideal for panel illumination in instrumentation displays
• Used for multicolour signalling in consumer electronics
• Can be used for Visual alerts in medical devices
What lead configuration does it use for PCB mounting?
It is supplied in a 6-pin PLCC package intended for surface mounting.
What colours are available and how do their brightnesses compare?
The component provides blue, green and red outputs with distinct luminous intensities of 990 mcd, 2470 mcd and 572 mcd respectively.
What electrical characteristic defines the red emitter’s spectral position?
The red emitter has a dominant Wavelength of 628 nm.
How is the component packaged for manufacturing use?
Units are provided on tape and reel to support automated pick-and-place assembly.
Is the part suitable for automotive certification requirements?
It is not certified to automotive standards but complies with RoHS environmental restrictions.
