Wurth Elektronik2 V Red LED 3216 (1206) SMD, WL-SMCW 150120RS75000
- RS Stock No.:
- 162-3754
- Mfr. Part No.:
- 150120RS75000
- Manufacturer:
- Wurth Elektronik
The image is for reference only, please refer to product details and specifications
View all LEDs
Temporarily out of stock - back order for despatch 01/08/2023, delivery within 6 working days
Price (VAT excluded) Each (On a Reel of 4000)
TWD5.50
(exc. GST)
TWD5.78
(inc. GST)
units | Per unit | Per Reel* |
4000 - 4000 | TWD5.50 | TWD22,000.00 |
8000 - 12000 | TWD5.40 | TWD21,600.00 |
16000 + | TWD5.30 | TWD21,200.00 |
*price indicative |
- RS Stock No.:
- 162-3754
- Mfr. Part No.:
- 150120RS75000
- Manufacturer:
- Wurth Elektronik
- COO (Country of Origin):
- CN
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

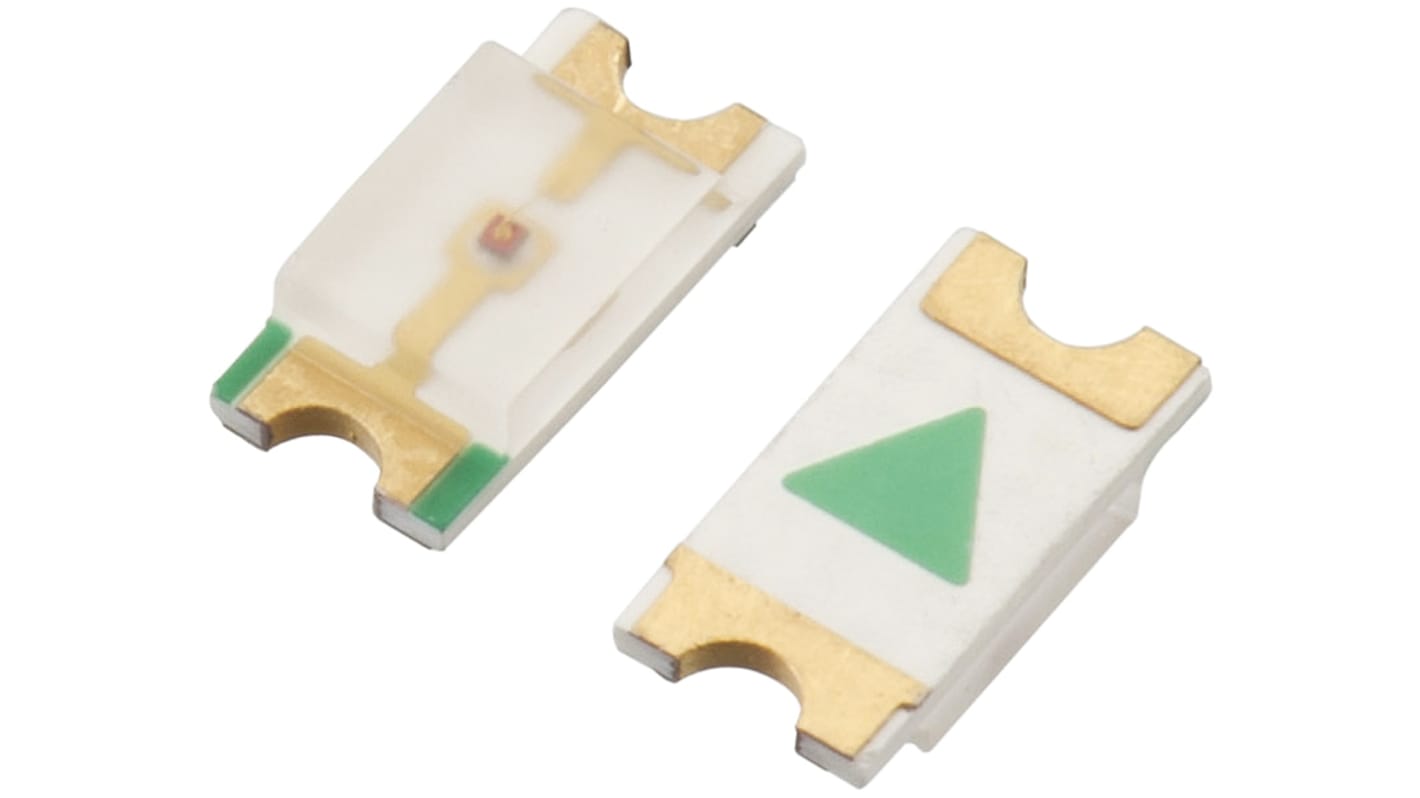

WL-SMCW SMD Chip LEDs
The WL-SMCW series from Wurth Elektronik are single colour SMD chip LEDs with water-clear lens. WL-SMCW LEDs are available in a range of package sizes including 0603, 0805 and 1206. These top-view LEDs exhibit exceptionally high brightness from an ultra-compact SMT package. They have a wide viewing angle and low energy consumption, and offer high reliability and long service life. The LEDs are suitable for a multitude of applications including backlighting for mobile and portable devices, switch and indicator illumination, message boards and displays, optical indicators, toys and general lighting.
Features of the WL-SMCW LEDs:
Range of different single colour options
Industry-standard packages: 0603 / 0805 / 1206
Water-clear rectangular lens
Top viewing package
Wide viewing angle
Range of different single colour options
Industry-standard packages: 0603 / 0805 / 1206
Water-clear rectangular lens
Top viewing package
Wide viewing angle
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Visible Light LEDs, Wurth
A wide range of visible light LEDs from Würth Elektronik available in both SMT and through-hole packages. Both water-clear and diffused types are available and all devices feature high luminous efficacy with low energy consumption. The LEDs are suitable for a very wide range of applications which include backlighting for LCDs, indicator and switch illumination, indoor and outdoor message displays, industrial control system and traffic signals, marker lights, directional indicators and decorative lighting.
Specifications
Attribute | Value |
LED Colours | Red |
Package Type | 3216 (1206) |
Mounting Type | Surface Mount |
Number of LEDs | 1 |
Forward Voltage | 2 V |
Luminous Intensity | 150 mcd |
Number of Pins | 2 |
Viewing Angle | 140 ° |
Lens Shape | Rectangle |
Dominant Wavelength | 625 nm |
Series | WL-SMCW |
Lens Colour | Clear |
Lens Finish | Clear |
Dimensions | 3.2 x 1.6 x 0.68mm |
Forward Current | 30mA |
Temporarily out of stock - back order for despatch 01/08/2023, delivery within 6 working days
Price (VAT excluded) Each (On a Reel of 4000)
TWD5.50
(exc. GST)
TWD5.78
(inc. GST)
units | Per unit | Per Reel* |
4000 - 4000 | TWD5.50 | TWD22,000.00 |
8000 - 12000 | TWD5.40 | TWD21,600.00 |
16000 + | TWD5.30 | TWD21,200.00 |
*price indicative |
