MEAN WELL, 343V Output, 200 W Output, 700mA 3 in 1

View all LED Drivers

Subtotal (1 unit)*

TWD1,995.00

(exc. GST)

TWD2,094.75

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from September 16, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +TWD1,995.00

*price indicative

RS Stock No.:
149-570
Distrelec Article No.:
303-07-868
Mfr. Part No.:
ELG-200-C700B-3Y
Manufacturer:
MEAN WELL
Find similar products by selecting one or more attributes.
Select all

Brand

MEAN WELL

Product Type

LED Driver

Output Voltage

343V

Maximum Output Power

200W

Input Voltage

100, 305V

Mount Type

Screw

Dimming Operation

3 in 1

Input Voltage Type

AC/DC

IP Rating

IP67, IP65

LED Voltage

142, 286V

Operating Modes

Constant Current

Driver Current

700mA

Number of Outputs

1

Standards/Approvals

BS EN/EN62384, KC61347-2-13, BS EN/EN61547, GB19510.14, BS EN/ES/NZS 61347-1, KN61547, R-41027766, EAC TP TC 004, UL8750(type”HL”), IS 15885(Part 2/Sec13), IP65 or KC61347-1, EAC TP TC 020, BS EN/ES/NZS 61347-2-13, GB19510.1, BISIS15885(for 700A only), KC KN15, BS EN/EN61000-4-2, CSA C22.2 No. 250.13-12

Series

ELG-200-C

Power Dissipation

0.5W

RoHS Status: Exempt

COO (Country of Origin):
CN

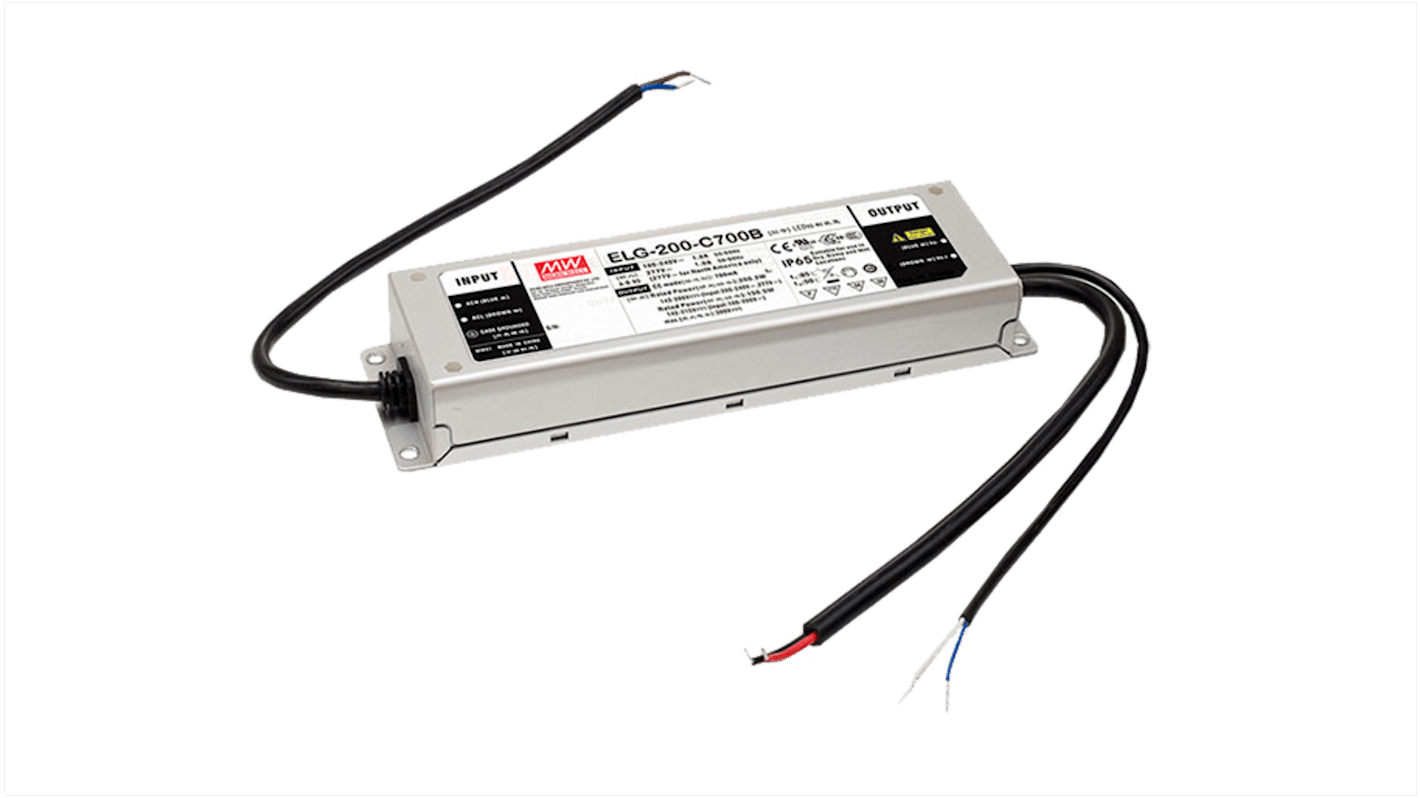

The MEANWELL high-quality AC-DC Single output LED Driver with PFC. It offers an output of 343VDC at 0.7A and allows dimming with 0-10VDC or PWM resistance. With an IP67 rating, this driver is suitable for a range of applications where reliable, efficient power is required.

Provides a constant current output for LED lighting applications

Supports a wide input voltage range of 100-305V

Designed with PFC (Power Factor Correction) for improved efficiency

IP67 rated for dust and water resistance

Dimming options available for flexible lighting control
