RS PRO Adhesive Lined Heat Shrink Tubing, Assorted Set Sleeve Dia. x Set Length 2:1, 3:1 Ratio
- RS Stock No.:
- 487-3852
- Manufacturer:
- RS PRO
Bulk discount available
Price Each**
TWD4,284.00
(exc. GST)
TWD4,498.20
(inc. GST)
2 In CN stock for delivery within 2 working day(s) (local stock)*
106 In Global stock for delivery within 6 working day(s)
* Delivery dates may change based on your chosen quantity and delivery address.
FREE delivery for orders over TWD2,857.00 (ex VAT)
Units | Per unit |
---|---|
1 - 14 | TWD4,284.00 |
15 - 74 | TWD4,175.00 |
75 + | TWD3,437.00 |
**price indicative
- RS Stock No.:
- 487-3852
- Manufacturer:
- RS PRO
- COO (Country of Origin):
- GB

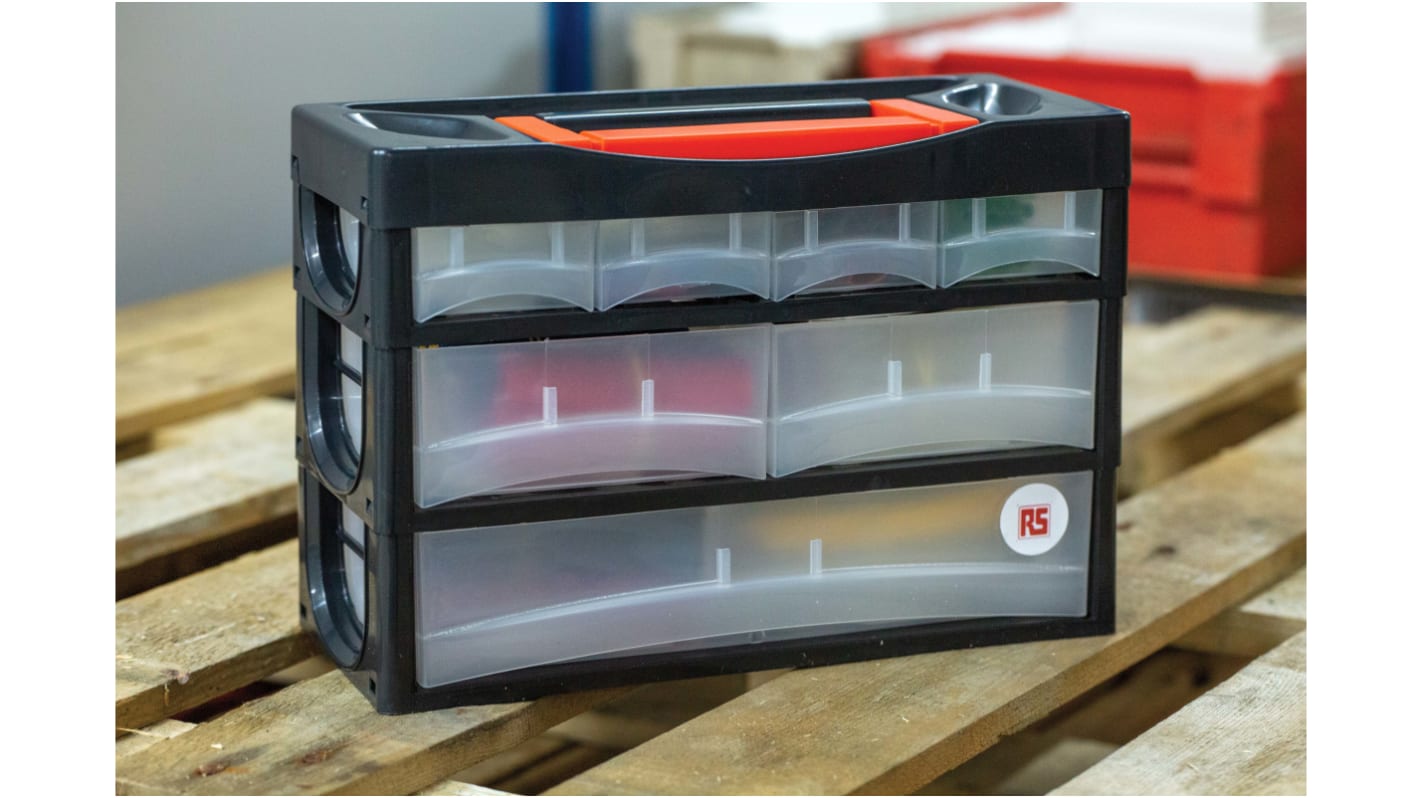

RS Pro Portable Heat Shrink Kit
From RS Pro a portable heat shrink kit consisting of a range of high-quality heat shrink tubing. The tubing contained in this versatile kit is in a range of colours, (including harmonised colours) and diameters to suit a range of different applications. The box itself is made from plastic with clear click close draws and a carrying handle on the top. The box can also be stacked or wall mounted for easy access
What is Heat Shrink Tubing?
Heat shrink tubing is a type of extruded plastic tubing that can be cut to size and fitted over a wire or cable joint to protect and insulate the connection. When heated is applied the tubing shrinks permanently providing a protective seal. The amount the tube shrinks depends on its heat ratio. When you buy the tubing it is in its expanded state, this expanded tubing has memory so when it is heated it returns to its original state
How to Use Heat Shrink Tubing
The diameter of the wire or cable is measured and the correct sized heat shrink tubing selected. A piece of the tube is cut to size which is long enough to cover the connection or joint after heating. This then slides onto the wire. After the cable or wire has been joined the piece of heat-shrinkable tube is moved over the joint and heated with a heat gun until it shrinks and forms a tight wrapping around the joint
Kit Contents
This heat shrink kit contains a variety of different heat shrink types. These can also be purchased separately and cut to size for use as refills.
Standard Flame Retardant Heat Shrink
Cross-linked flexible polyolefin tubing
Shrink ratio of 2:1
Flame retardant
Flexible
Minimum shrink temperature: 90℃
-55 to 135°C operating temperature range
Brightly coloured
Shrink ratio of 2:1
Flame retardant
Flexible
Minimum shrink temperature: 90℃
-55 to 135°C operating temperature range
Brightly coloured
Standard Heat Shrink (Clear)
Cross-linked flexible polyolefin tubing
Shrink ratio of 2:1
Flexible
Minimum shrink temperature: 110℃
-55 to 135°C operating temperature range
Transparent
Shrink ratio of 2:1
Flexible
Minimum shrink temperature: 110℃
-55 to 135°C operating temperature range
Transparent
Adhesive Lined Dual Wall Heat Shrink
Flexible polyolefin tubing
Shrink ratio of 3:1
Lined with adhesive for waterproof sealing
Flame retardant
Flexible
Minimum shrink temperature: 110℃
-55 to 125°C operating temp range
Ideal for use where encapsulation or waterproofing is required
Shrink ratio of 3:1
Lined with adhesive for waterproof sealing
Flame retardant
Flexible
Minimum shrink temperature: 110℃
-55 to 125°C operating temp range
Ideal for use where encapsulation or waterproofing is required
Flame Retardant Zero Halogen Heat Shrink
Cross-linked flexible polyolefin tubing
Shrink ratio of 2:1
Flexible
Flame retardant
Halogen free
Minimum shrink temperature: 150℃
-55 to 105°C operating temperature range
Ideal for use in applications where toxic emissions during a fire hazard must be kept low
Shrink ratio of 2:1
Flexible
Flame retardant
Halogen free
Minimum shrink temperature: 150℃
-55 to 105°C operating temperature range
Ideal for use in applications where toxic emissions during a fire hazard must be kept low
Thin Wall Fluoropolymer Polymer Heat Shrink
Fluoropolymer tubing
Shrink ratio of 2:1
Flame retardant
Fluid resistant
Highly flexible
Low shrink temperature of 70℃
High operating temperature range of -55 to + 200
Low outgassing
High clarity
Shrink ratio of 2:1
Flame retardant
Fluid resistant
Highly flexible
Low shrink temperature of 70℃
High operating temperature range of -55 to + 200
Low outgassing
High clarity
This kit also contains a range of colour-coded crimp splices covered in in dual wall heat shrink tubing with an adhesive liner
What is Heat Shrink Tubing Used For?
Heat shrink is very versatile and is used in both commercial and industrial applications for protecting and sealing and encapsulating cable joints and in-line components such as disconnect terminals and wire splices. Heat shrinkable tubing can also be used to carry out repairs on existing worn or torn cable or wiring insulation Applications include the following:
Electrical insulation
Environmental protection against moisture, dust, and chemicals.
Mechanical protection to wires and small parts from abrasion
Mechanical strain relief on cable and connector joints to prevent damage caused by flexing or bending
Bundling and organizing harness wires, cable, and tubing
Colour coded identification of cables, wires, and components
Environmental protection against moisture, dust, and chemicals.
Mechanical protection to wires and small parts from abrasion
Mechanical strain relief on cable and connector joints to prevent damage caused by flexing or bending
Bundling and organizing harness wires, cable, and tubing
Colour coded identification of cables, wires, and components
Note
Kit also includes refill stock numbers for ease of use.
Attribute | Value |
---|---|
Sleeve Diameter | Set |
Colour | Assorted |
Shrunk Diameter | Set |
Sleeve Type | Heat Shrink |
Adhesive Lined | Yes |
Shrink Ratio | 2:1, 3:1 |
Sleeve Length | Set |
Material | Polyolefin |
Operating Temperature Range | Maximum of +350 °C |
Flame Retardant | Yes |
Standards Met | RoHS Compliant |
