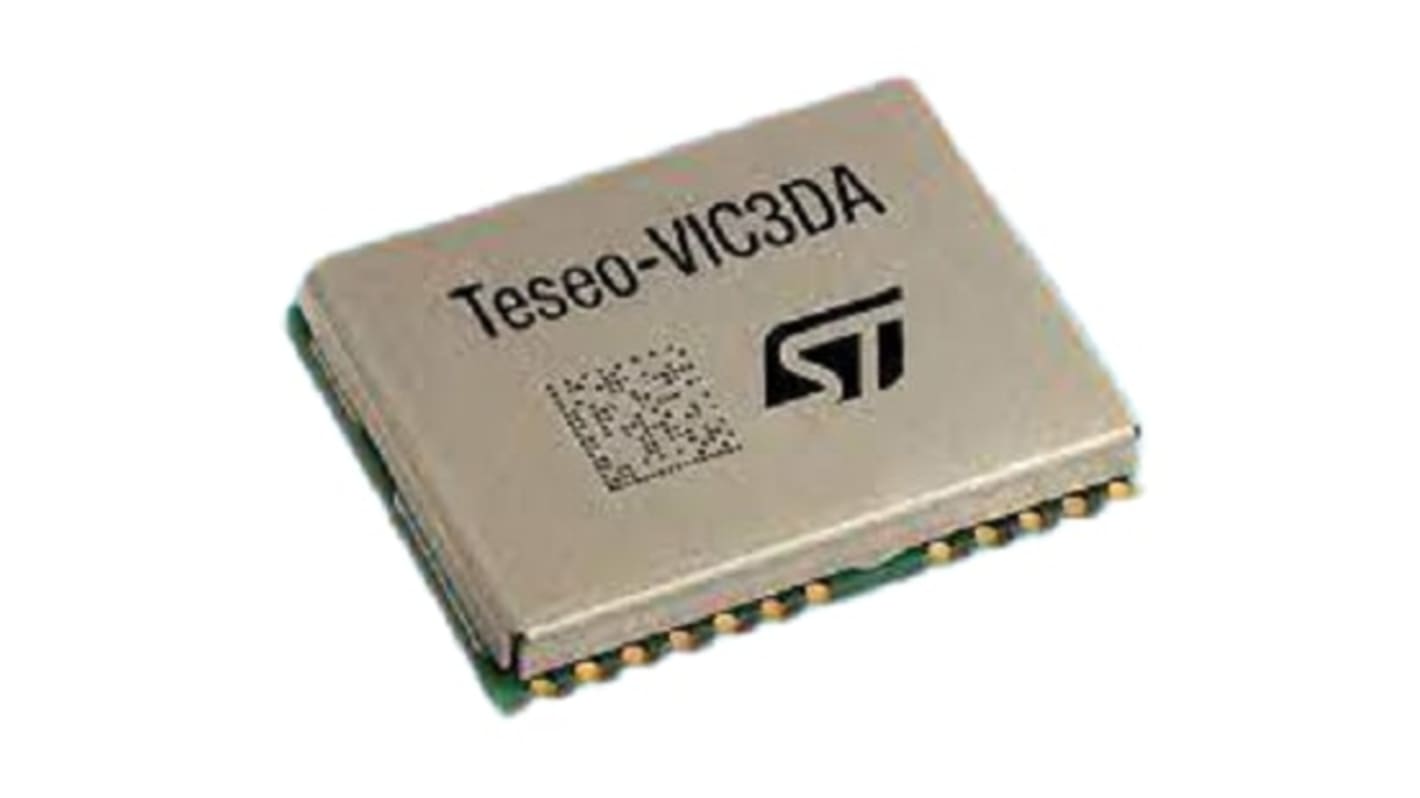

STMicroelectronics TESEO-VIC3DA GPS Module -156 dBm
- RS Stock No.:
- 234-8906
- Mfr. Part No.:
- TESEO-VIC3DA
- Manufacturer:
- STMicroelectronics
The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 tray of 120 units)*
TWD84,900.00
(exc. GST)
TWD89,145.60
(inc. GST)
FREE delivery for orders over NT$1,300.00
Temporarily out of stock
- 480 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 120 - 120 | TWD707.50 | TWD84,900.00 |
| 240 + | TWD686.30 | TWD82,356.00 |
*price indicative
- RS Stock No.:
- 234-8906
- Mfr. Part No.:
- TESEO-VIC3DA
- Manufacturer:
- STMicroelectronics
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Product Type | GPS Module | |
| Acquisition Sensitivity | -156dBm | |
| Tracking Sensitivity | -163dBm | |
| Height | 2.42mm | |
| Interface Type | I2C, UART | |
| Length | 16mm | |
| Minimum Supply Voltage | 2.97V | |
| Maximum Supply Voltage | 3.63V | |
| Time to First Fix - Cold Start | 32s | |
| Minimum Operating Temperature | -40°C | |
| Protocol | NMEA | |
| Maximum Operating Temperature | 85°C | |
| Width | 11.95 mm | |
| Series | TESEO-VIC3DA | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Product Type GPS Module | ||
Acquisition Sensitivity -156dBm | ||
Tracking Sensitivity -163dBm | ||
Height 2.42mm | ||
Interface Type I2C, UART | ||
Length 16mm | ||
Minimum Supply Voltage 2.97V | ||
Maximum Supply Voltage 3.63V | ||
Time to First Fix - Cold Start 32s | ||
Minimum Operating Temperature -40°C | ||
Protocol NMEA | ||
Maximum Operating Temperature 85°C | ||
Width 11.95 mm | ||
Series TESEO-VIC3DA | ||
Standards/Approvals No | ||
The STMicroelectronics Teseo-VIC3DA module is an easy to use dead-reckoning Global Navigation Satellite System (GNSS) standalone module, embedding TeseoIII single die standalone positioning receiver IC working simultaneously on multiple constellations.
AEC-Q100 qualification on going
Simultaneous multiconstellation
Teseo dead-reckoning Automotive way firmware
-163 dBm sensitivity tracking
