Amphenol Socapex RJF544 Male RJ45 Connector Cat5e, RJF544
- RS Stock No.:
- 452-6916
- Mfr. Part No.:
- RJF5446
- Manufacturer:
- Amphenol Socapex
View all Ethernet Connectors
806 In stock for delivery within 6 working days
Price (VAT excluded) Each
Was TWD1,015.00
You pay
TWD760.00
(exc. GST)
TWD798.00
(inc. GST)
| units | Per unit |
| 1 - 14 | TWD760.00 |
| 15 - 24 | TWD741.00 |
| 25 + | TWD723.00 |
- RS Stock No.:
- 452-6916
- Mfr. Part No.:
- RJF5446
- Manufacturer:
- Amphenol Socapex
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- FR
Product Details
Amphenol RJ45 Connector

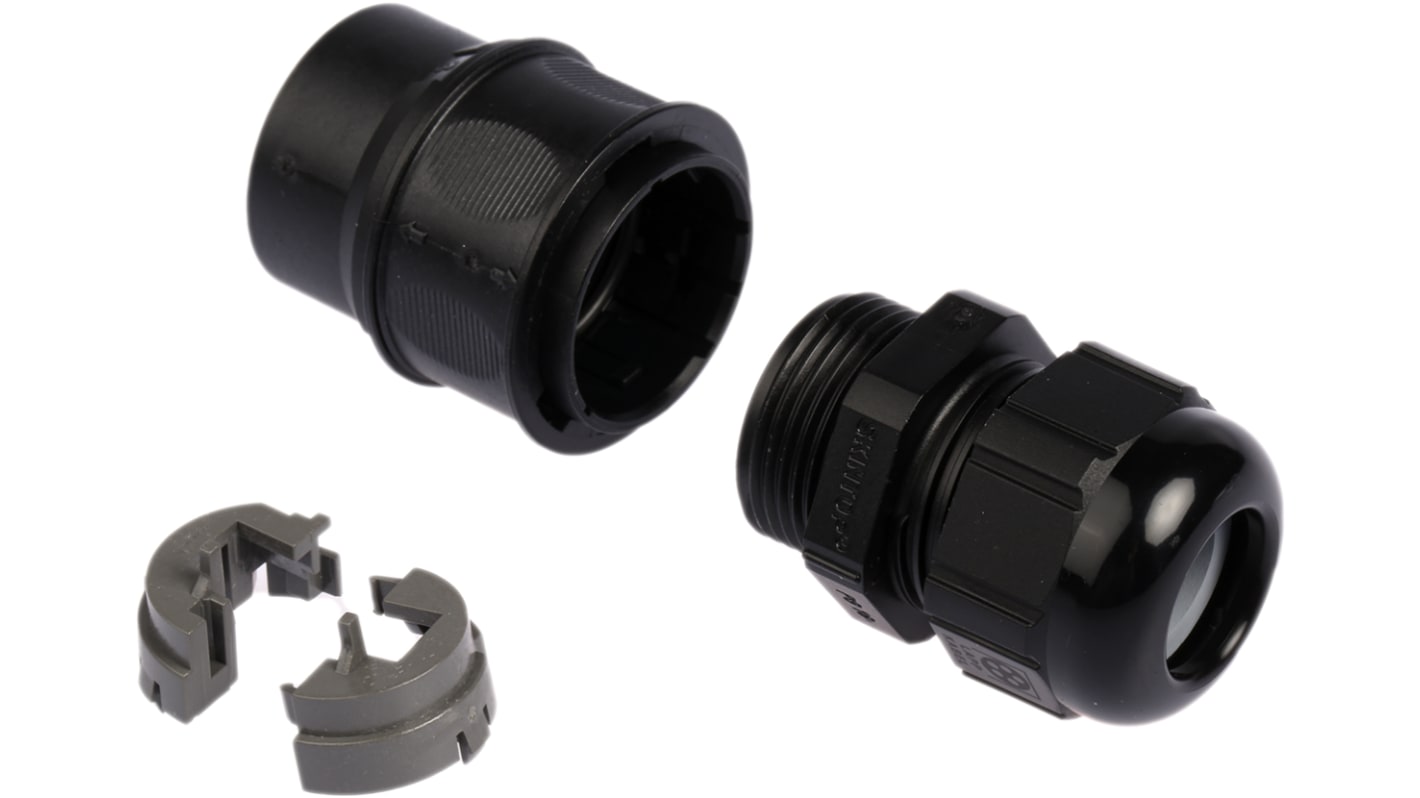

The Amphenol RJF 544 series Cat5e female RJ45 connector is a panel-mount shielded plug. This connector has a composite push-pull plug shell. This RJField allows you to use an Ethernet Cat.5e connection for 10 BaseT, 100 BaseTX or 1000 BaseT networks in harsh environments. This RJ45 plug protector can be installed without any tools or wiring operations.
Features and Benefits
Operating temperature ranging between -40°C and 85°C
Orientation is straight
Sealed against fluids and dust
Shock, vibration and traction resistant
Orientation is straight
Sealed against fluids and dust
Shock, vibration and traction resistant
Applications
CNC machines
Industrial process control
Robotics
Special machines
Video control/CCTV
Wireless base stations and access points
Industrial process control
Robotics
Special machines
Video control/CCTV
Wireless base stations and access points
Certifications
DIN 5510-2
IP48 rated
NF F 16-102
UL94 V0
IP48 rated
NF F 16-102
UL94 V0
Specifications
| Attribute | Value |
| Gender | Male |
| Ethernet Connector Type | RJ45 Connector |
| LAN Category | Cat5e |
| Mounting Type | Cable Mount |
| Number of Ports | 1 |
| Number of Ways | 4 |
| Shield Type | Unshielded |
| Orientation | Straight |
| IP Rating | IP68 |
| Length | 64mm |
| Depth | 32.5mm |
| Series | RJF544 |
| Series Number | RJF544 |
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
