RS PRO Earth Tester, 1.5 kΩ Countersunk, Flange Head 600V

View all Earth Testers
Bulk discount available

Subtotal (1 unit)*

TWD21,316.00

(exc. GST)

TWD22,381.80

(inc. GST)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 19 unit(s) shipping from April 21, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4TWD21,316.00
5 +TWD20,250.00

*price indicative

RS Stock No.:
203-5463
Manufacturer:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Maximum Resistance Measurement

1.5kΩ

Product Type

Earth Tester

Accuracy

±20 %

Display Type

LCD

Measurement Type

Ground Resistance

Battery Life

3000h

Power Source

9 V Battery

Weight

640g

Height

47mm

Includes

User Manual, Carrying Case, Battery

Length

257mm

Standards/Approvals

VDE

Maximum Operating Temperature

50°C

Safety Category Voltage

600V

Width

100 mm

Safety Category Level

Countersunk, Flange Head

Minimum Operating Temperature

0°C

COO (Country of Origin):
TW

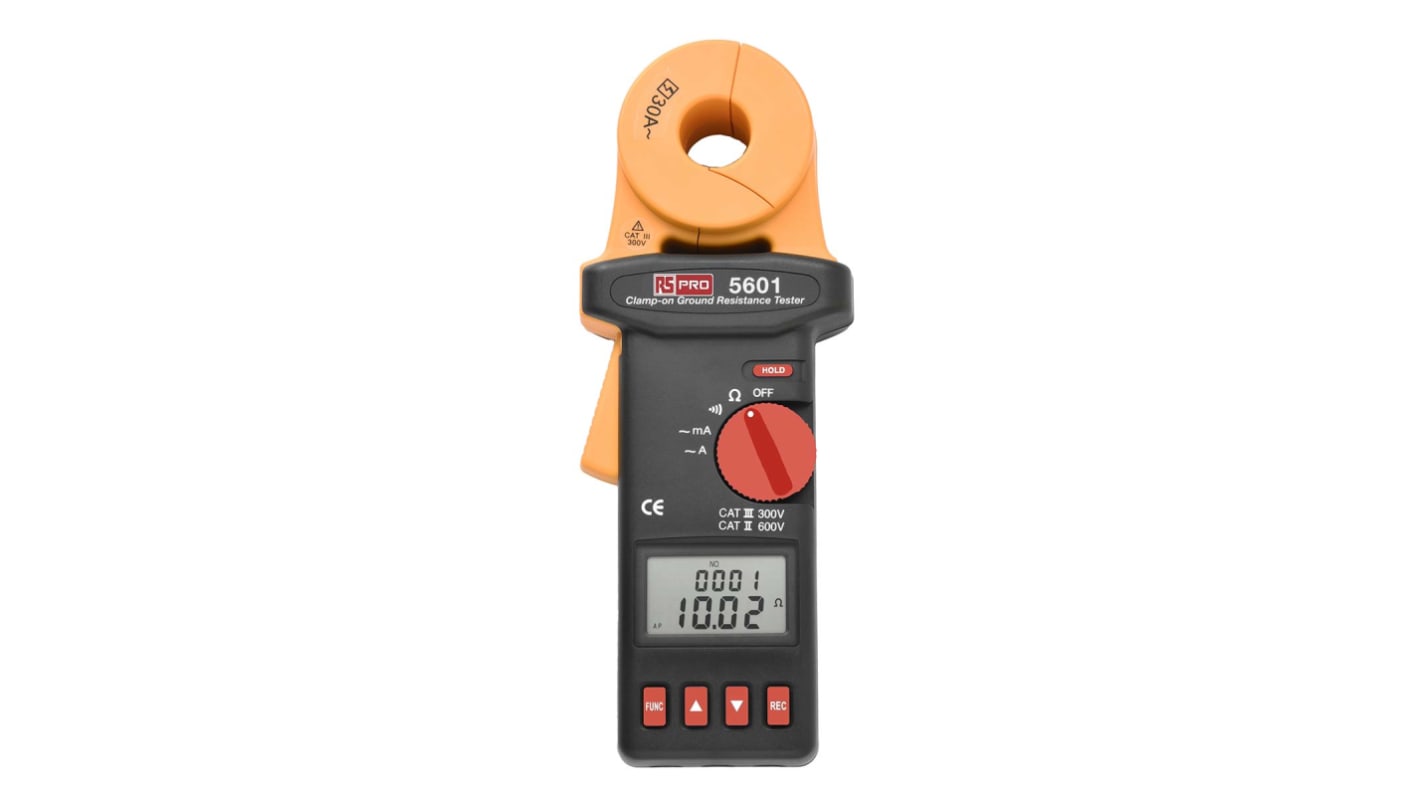

RS PRO Clamp-On Ground Tester, 0.025Ω to 1500Ω, 0.3mA to 30A


Introducing the clamp-on ground tester from RS PRO, a robust and versatile hand held grounding and earth tester ideal for non-contact ground resistance measurement in a range of applications. This compact clamp device offers ground resistance measurement of 0.025Ω to 1500Ω and leakage current measurement of 0.3mA to 30A true RMS, ensuring accurate and reliable results. The simple clamp-on design of the tester allows for safe non-contact measurement of ground wires without the need for an auxiliary electrode, making it highly user-friendly and easy to use. The RS PRO clamp-on ground tester also features a user-friendly interface with an LCD screen, allowing you to easily monitor and take readings. Furthermore, up to 116 records can be logged with the device thanks to the data logging function ensuring data can be easily stored and located.

Features and Benefits


  • Clamp-on design allowing for non-contact ground resistance measurement

  • No auxiliary electrode needed for quick and easy measurement

  • Ground resistance measurement: 0.025Ω to 1500Ω

  • Leakage current measurement: 0.3mA to 30A, True RMS

  • Jaw diameter of 23mm for easy testing of grounding wires

  • Programmable high and low alarm to easily identify errors

  • Clear and easy to read LCD display screen

  • Data logging of up to 116 records

  • Compact and lightweight design

    • Applications


    Earth & ground resistance testers are essential devices used for testing and measuring the grounding resistance of electrical devices, ensuring there is a safe path to earth in the event of over voltage. Earth and ground testers allow you to quickly and efficiently identify any issues with grounding and are available in a wide range of formats such as hand held clamps and desktop. They are suitable for use in areas such as:

  • Telecommunication

  • Electrical Power Plant

  • Factory and Facility

  • Cable TV System

  • Cellular Phone System

  • Gas Station & Tank

    • Standards


    CE CAT III 300V, CAT II 600V.

    FAQs


    What batteries are required?


    This device requires a 9V battery to operate.

    What is included?


  • Resistance Calibration Plate x 1

  • 9V Battery (Installed) x 1

  • User Manual x 1

  • Carrying Box x 1

    • Why is grounding important?


    Grounding is an essential element for any electrical installation as it protects appliances and stabilises voltage levels. Earthing is also important is it also provides a safe path for electrical currents to travel to earth in the event of over voltage or lightning strike, ultimately preventing injury through electric shock or death.
