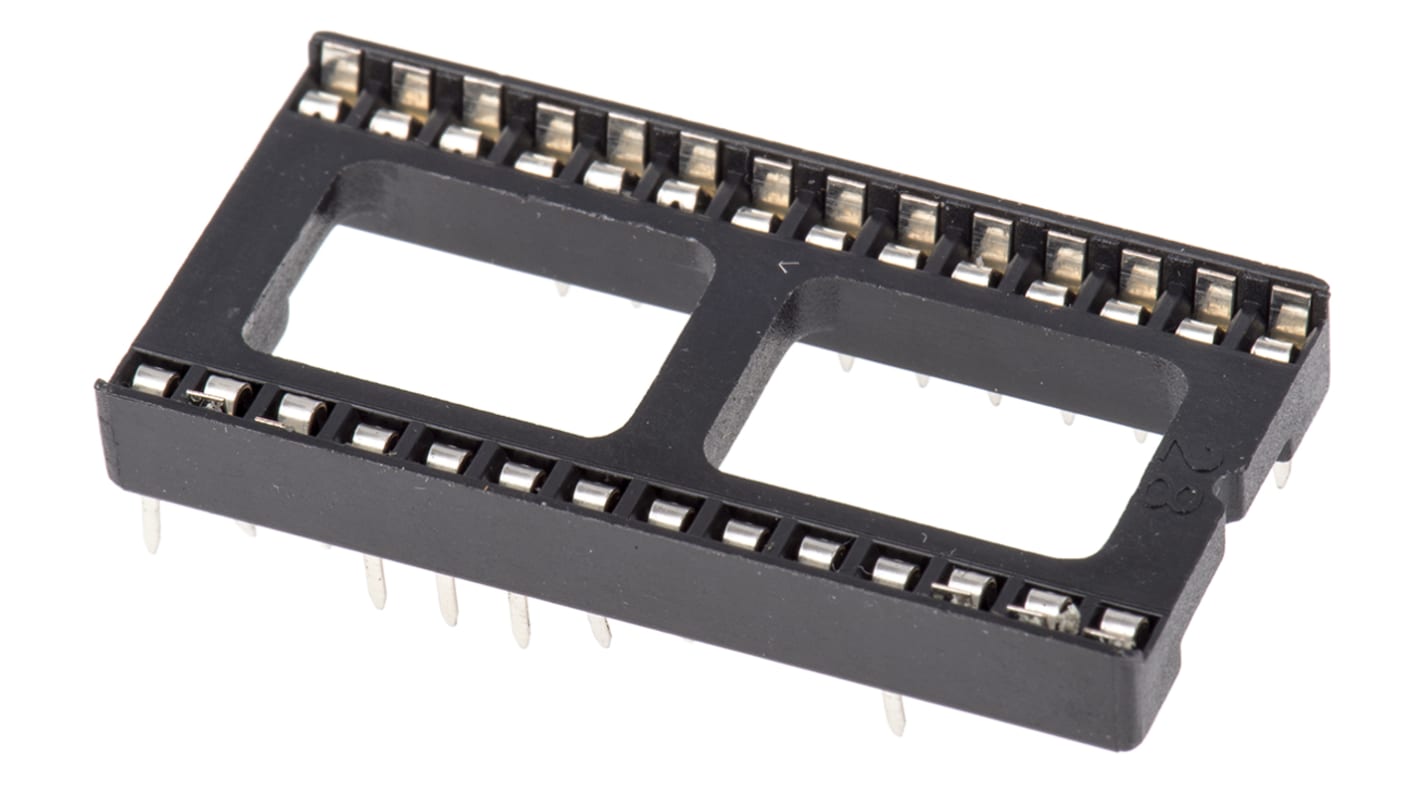

ASSMANN WSW 2.54mm Pitch Vertical 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A

RS Stock No.:: 674-2454
Mfr. Part No.:: A 28-LC-TT
Manufacturer:: ASSMANN WSW

ASSMANN WSW 2.54mm Pitch Vertical 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A

Bulk discount available

Subtotal (1 pack of 10 units)**

TWD144.00

(exc. GST)

TWD151.20

(inc. GST)

150 In stock for delivery within 6 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over TWD1,300.00 (ex VAT)

Real time qty checker

Units	Per unit	Per Pack**
10 - 490	TWD14.40	TWD144.00
500 - 2490	TWD14.10	TWD141.00
2500 +	TWD11.70	TWD117.00

**price indicative

RS Stock No.:: 674-2454
Mfr. Part No.:: A 28-LC-TT
Manufacturer:: ASSMANN WSW

IC Socket pitch 2.54mm Data Sheet

Attribute	Value
Number of Contacts	28
Mounting Type	Through Hole
Pin Type	Stamped
Pitch	2.54mm
Row Width	15.24mm
Frame Type	Open Frame
Termination Method	Solder
Contact Plating	Tin
Current Rating	1A
Orientation	Vertical
Length	35.56mm
Width	17.78mm
Depth	5.1mm
Dimensions	35.56 x 17.78 x 5.1mm
Minimum Operating Temperature	-55°C
Voltage Rating	60 V ac
Maximum Operating Temperature	+85°C
Contact Material	Phosphor Bronze
Housing Material	PBT

ASSMANN WSW 2.54mm Pitch Vertical 28 Way, Through Hole Stamped Pin Open Frame IC Dip Socket, 1A

FREE delivery for orders over TWD1,300.00 (ex VAT)

Assmann 2.54mm Open Frame IC DIP Sockets with Stamped Contacts
