RS PRO 2.54mm Pitch 40 Way, Through Hole Turned Pin IC Dip Socket, 3A
- RS Stock No.:
- 183-1571
- Manufacturer:
- RS PRO
Stock check temporarily unavailable - call for stock availability
Added
Price (VAT excluded) Each (In a Tube of 12)
Was TWD588.00
You pay
TWD41.70
(exc. GST)
TWD43.78
(inc. GST)
| Units | Per unit | Per Tube* |
| 12 - 108 | TWD41.70 | TWD500.40 |
| 120 - 588 | TWD39.90 | TWD478.80 |
| 600 + | TWD32.80 | TWD393.60 |
| *price indicative | ||
- RS Stock No.:
- 183-1571
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

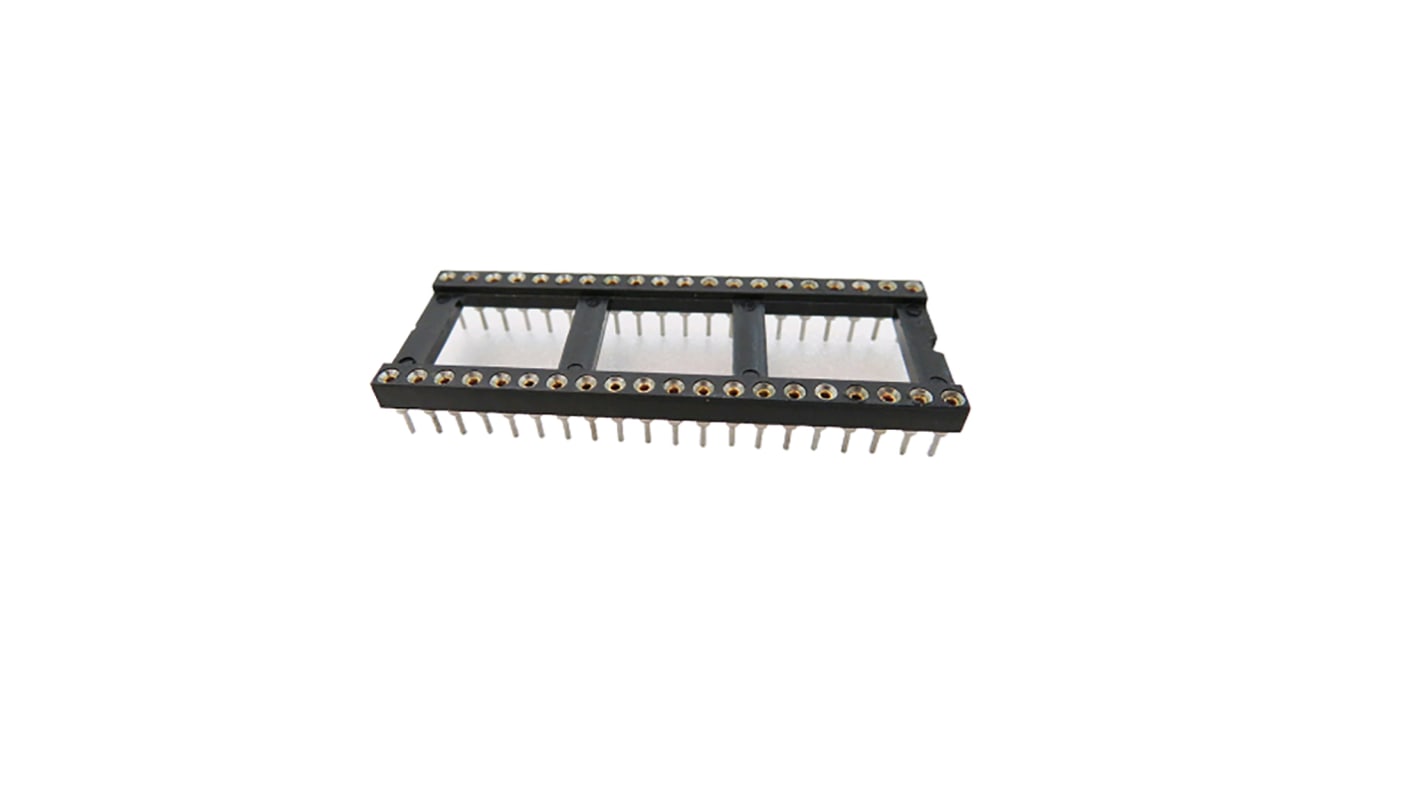

RS PRO Screw Machine IC Socket
The RS PRO screw machine IC pin socket has a pitch of 2.54mm, length of 50.8mm, a width of 17.78mm and depth of 3mm. It has a current rating of 3A and voltage rating of 60VAC/VDC. The socket features solid, precision turned sleeves with a closed bottom design to eliminate flux intrusion and solder wicking during soldering. The stamped spring copper insert provides an excellent connection and allows repeated insertion and withdrawals. The insulators are moulded of high temp thermoplastic. The inner contact has gold flash over nickel plating and the outer sleeve has tin over nickel plating.
Features and Benefits
• Anti-solder wicking design
• Clip material beryllium copper
• High pressure contacts
• Machine insertable
• Number of contacts 40
• Operating temperature for gold plated ranges between -55 °C and 105 °C
• Operating temperature for tin plated ranges between -40 °C and 105 °C
• Pin material brass
• Precision stamped internal spring contacts
• Through hole mounting type
• Clip material beryllium copper
• High pressure contacts
• Machine insertable
• Number of contacts 40
• Operating temperature for gold plated ranges between -55 °C and 105 °C
• Operating temperature for tin plated ranges between -40 °C and 105 °C
• Pin material brass
• Precision stamped internal spring contacts
• Through hole mounting type
Certifications
• UL94V-0 approved
Specifications
Attribute | Value |
|---|---|
| Number of Contacts | 40 |
| Mounting Type | Through Hole |
| Pin Type | Turned |
| Pitch | 2.54mm |
| Row Width | 15.24mm |
| Termination Method | Solder |
| Current Rating | 3A |
| Length | 50.8mm |
| Width | 17.78mm |
| Depth | 3mm |
| Dimensions | 50.8 x 17.78 x 3mm |
| Housing Material | Thermoplastic |
| Maximum Operating Temperature | +105 (Gold Plated, Tin Plated)°C |
| Minimum Operating Temperature | -40 (Tin Plated) °C, -55 (Gold Plated) °C |
| Voltage Rating | 60 V ac/dc |
