Schneider Electric TeSys D LC1D Contactor, 240 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac

RS Stock No.:: 187-920
Distrelec Article No.:: 301-50-616
Mfr. Part No.:: LC1D09U7
Manufacturer:: Schneider Electric

Schneider Electric TeSys D LC1D Contactor, 240 V ac Coil, 3-Pole, 9 A, 4 kW, 3NO, 690 V ac

Price Each**

Was TWD1,565.00

You pay

TWD1,295.00

(exc. GST)

TWD1,359.75

(inc. GST)

3 In CN stock for delivery within 2 working day(s) (local stock)*

90 In Global stock for delivery within 6 working day(s)

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over TWD2,857.00 (ex VAT)

Units	Per unit
1 +	TWD1,295.00

**price indicative

Better World

Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.

RS Stock No.:: 187-920
Distrelec Article No.:: 301-50-616
Mfr. Part No.:: LC1D09U7
Manufacturer:: Schneider Electric

Schneider Electric LC1D TeSys D Contactors

TeSys D Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The range has been designed for integration in control systems and can be used to create motor starters for any type of application. The TeSys D contactors offer quick simple setup while maintaining compliance with international standards.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Bidirectional peak limiting diode suppressor to protect the coil
• Easily installed accessories
• Flexible control circuit to suit a wide range of applications

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.

AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.

AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running. Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

What accessories are available?

• Auxiliary contact blocks with serrated wiping action
• Front mount dust tight auxiliary contact blocks
• Pneumatic time delay blocks
• Transient voltage surge suppressors
• Interface modules and electronic timers
• Mechanical latching blocks

Is the TeSys D range a double break pole type contactor?

Yes the Tesys D range uses linear translation movement that provides double breaking of the poles.

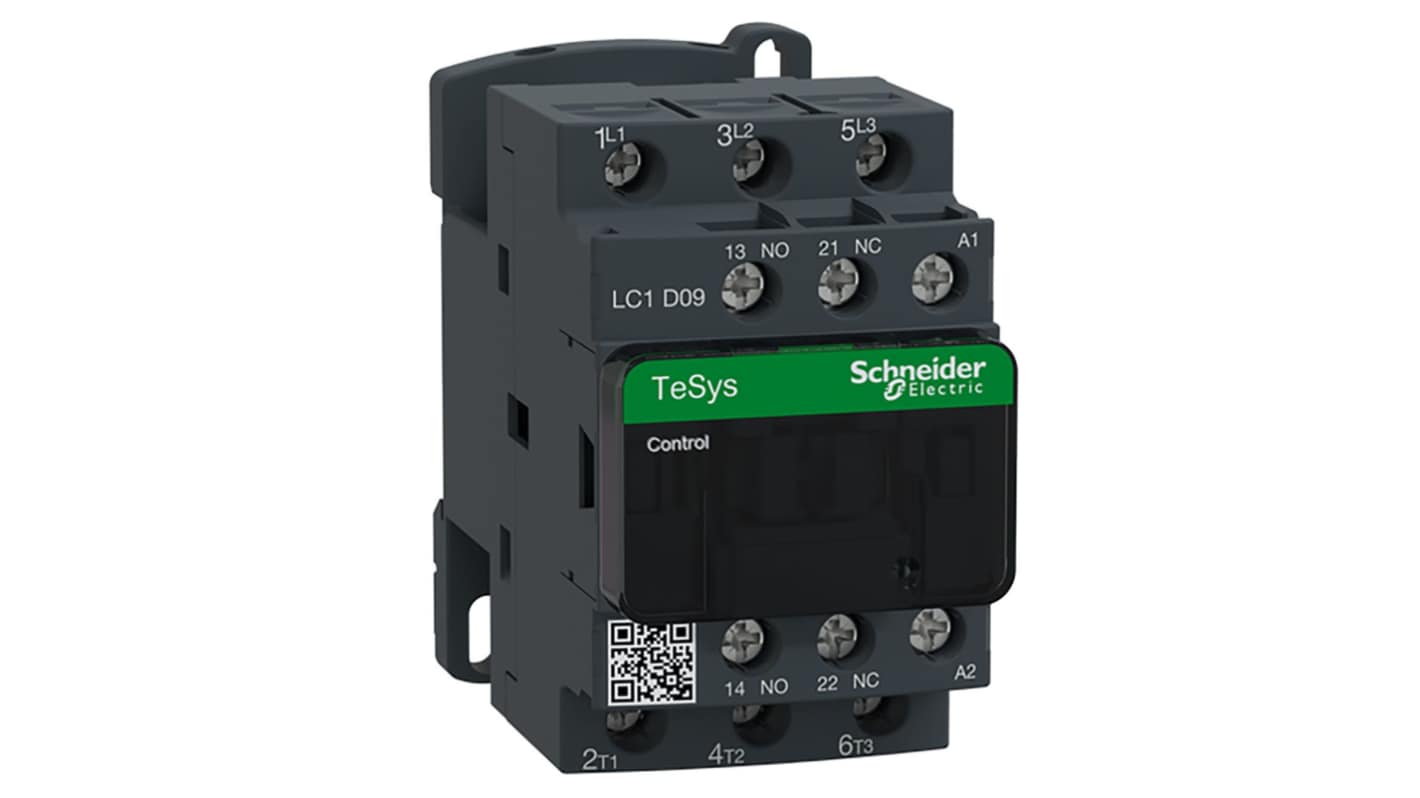

Schneider Electric LC1D09U7 Contactor

The Schneider Electric LC1D09U7 model is a 3 pole contactor featuring a 240 V ac operating coil, with an AC-3 full load current rating of 9 A.

Features & Benefits

• 3NO normal state configuration for versatile control options
• Screw terminal type for easy and secure connections
• 4kW power rating for efficient operation
• Compact design with a width of 45 mm for space-saving installation
• High current rating of 9A for robust performance

Applications

• Ideal for motor control applications
• Can be used for switching on and off electrical power supply in industrial installations
• Suitable for use in automation, electronics, electrical, and mechanical industries

Can it handle high power loads?

This TeSys Deca contactor has a power rating of 4 kW, making it suitable for handling high power loads efficiently.

Will it work in different temperature conditions?

With a wide operating temperature range from -5 °C to +60 °C, this contactor is suitable for various temperature environments.

Is it easy to install?

With screw terminal type and compact design, the installation of this contactor is straightforward and hassle-free.

Attribute	Value
Coil Voltage	240 V ac
Number of Poles	3
Contact Voltage Rating	690 V ac
Contact Current Rating	9 A
Power Rating	4 kW
Series	LC1D
Range	TeSys D
Function	Motor Control
Normal State Configuration	3NO
Number Of Auxiliary Contacts	2
Terminal Type	Screw
Width	45mm
Length	77mm
Depth	84mm
Better World Verification	Green Premium
Better World Product	Yes
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-5°C
Pole and Throw Configuration	3P
Mounting Style	Rail Mount
Control Voltage	240 V ac
