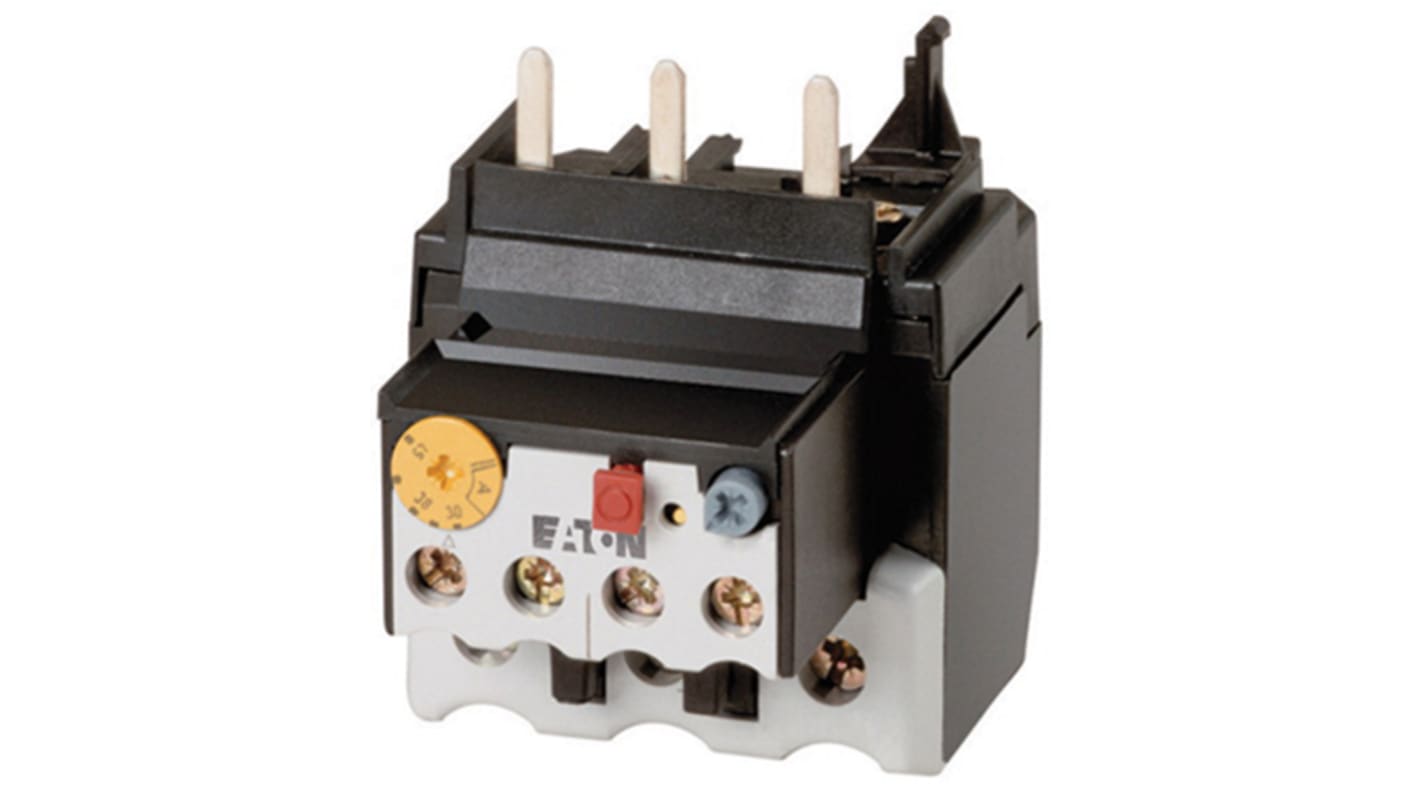

Eaton, ZB65 Overload Relay 1 NO/1 NC, 10A, 16 A F.L.C, 16A Contact Rating, 7.5 W, 500V ac
- RS Stock No.:
- 513-0285
- Mfr. Part No.:
- 278456 ZB65-16
- Manufacturer:
- Eaton
Subtotal (1 unit)*
TWD3,014.00
(exc. GST)
TWD3,164.70
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 8 unit(s) shipping from October 06, 2026
- Plus 5 unit(s) shipping from October 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | TWD3,014.00 |
*price indicative
- RS Stock No.:
- 513-0285
- Mfr. Part No.:
- 278456 ZB65-16
- Manufacturer:
- Eaton
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Overload Relay | |
| FLC Motor Rating | 10, 16A | |
| Relay Contact Current | 16A | |
| Mount Type | Direct | |
| Series | ZB65 | |
| Power Rating | 7.5W | |
| Normal State Configuration | 1 NO/1 NC | |
| Terminal Type | Screw | |
| IP Rating | IP00 | |
| Reset Method | Automatic & Manual | |
| Minimum Operating Temperature | -5°C | |
| Number of Auxiliary Contacts | 2 | |
| Width | 60mm | |
| Adjustable Current Range | 10 → 16 A | |
| Contact Voltage | 690V ac | |
| Length | 172mm | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | CSA-C22.2 No. 60947-4-1-14, CE Approved, CSA File No.:012528, CSA Class No.:3211-03, CSA Approved, VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL Approved, UL 508, IEC/EN 60947-4-1, IEC/EN 60947 | |
| Depth | 132mm | |
| Control Voltage | 500V ac | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Overload Relay | ||
FLC Motor Rating 10, 16A | ||
Relay Contact Current 16A | ||
Mount Type Direct | ||
Series ZB65 | ||
Power Rating 7.5W | ||
Normal State Configuration 1 NO/1 NC | ||
Terminal Type Screw | ||
IP Rating IP00 | ||
Reset Method Automatic & Manual | ||
Minimum Operating Temperature -5°C | ||
Number of Auxiliary Contacts 2 | ||
Width 60mm | ||
Adjustable Current Range 10 → 16 A | ||
Contact Voltage 690V ac | ||
Length 172mm | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals CSA-C22.2 No. 60947-4-1-14, CE Approved, CSA File No.:012528, CSA Class No.:3211-03, CSA Approved, VDE 0660, UL File No.:E29184, UL Category Control No.:NKCR, UL Approved, UL 508, IEC/EN 60947-4-1, IEC/EN 60947 | ||
Depth 132mm | ||
Control Voltage 500V ac | ||
RoHS Status: Exempt
ZB65 Overload Relays
These are for use with DILM contactors DILM40 to DILM65
Fits below DILM 40 to DILM65 contactors
Provides short circuit protection for motors
When fitting overload relay remote from contactor, or using more than one overload relay, use remote mounting base (stock no. 513-0336)
Note
Eaton formerly known as Moeller
