TS2166-A Okdo, Ambient Light Sensor, Ambient Light
- RS Stock No.:
- 257-6791
- Mfr. Part No.:
- TS2166-A
- Manufacturer:
- Okdo
Temporarily out of stock - back order for despatch 06/08/2024, delivery within 6 working days
Added
Price (VAT excluded) Each
TWD221.00
(exc. GST)
TWD232.05
(inc. GST)
| Units | Per unit |
| 1 - 4 | TWD221.00 |
| 5 - 9 | TWD214.00 |
| 10 + | TWD210.00 |
- RS Stock No.:
- 257-6791
- Mfr. Part No.:
- TS2166-A
- Manufacturer:
- Okdo
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

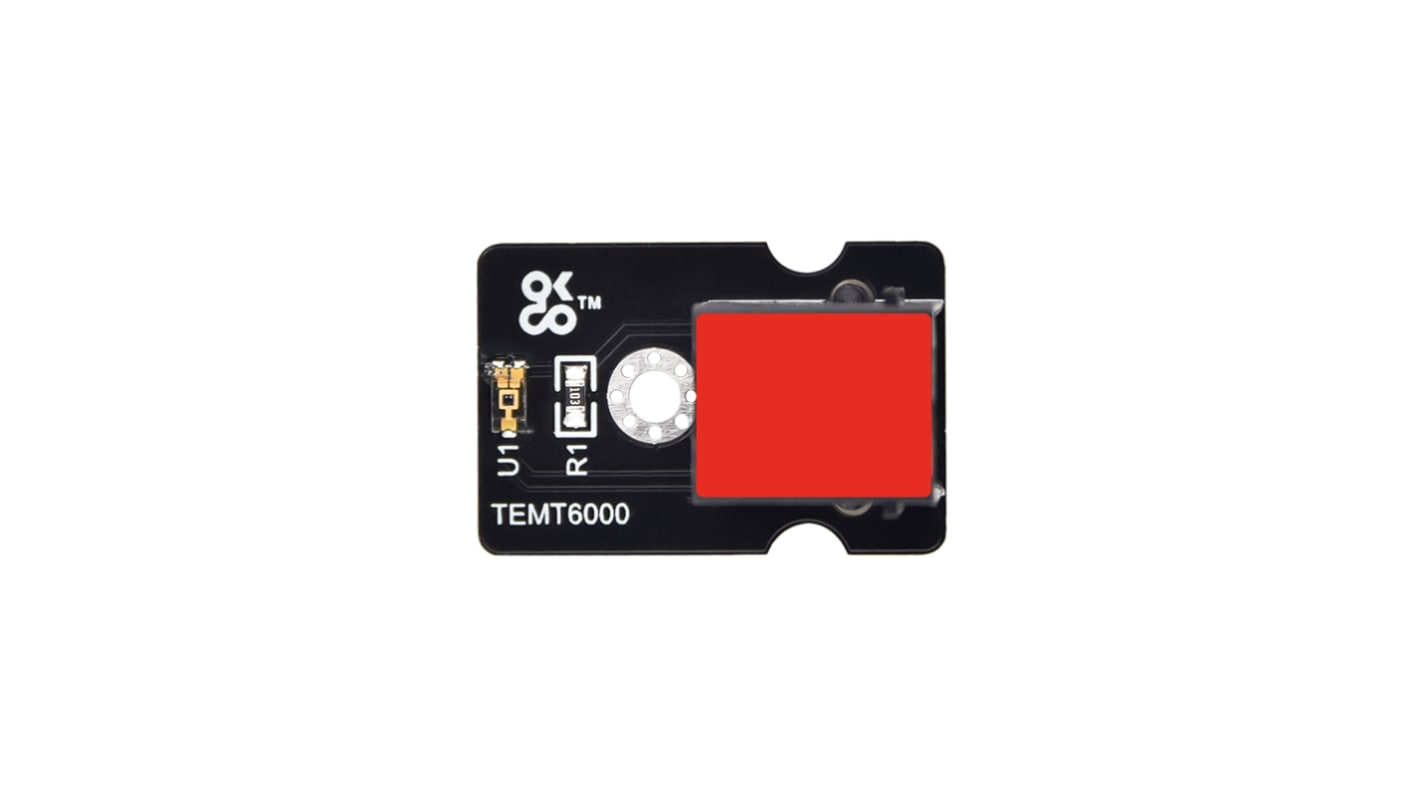

The Okdo TelePort TEMT6000 ambient light sensor is composed of a high- sensitive photosensitive (NPN type) triode. Its brightness is proportion to its the current of basic electrode. It can capture tiny light illumination changes and magnify about 100 times, then be easily recognized by the microcontroller for AD conversion. In addition, the stronger the incident light, the larger the analog voltage at the signal pin.
Based on the TEMT6000 sensor with a spectral response similar to the human eye
No need toaddfilterstoremove IR and UV spectrum
Ideal to detect ambient light levels
No need toaddfilterstoremove IR and UV spectrum
Ideal to detect ambient light levels
Specifications
Attribute | Value |
|---|---|
| Sensor Type | Ambient Light |
| Dimensions | 30 x 20 x 18mm |
| Height | 18mm |
| Length | 30mm |
| Maximum Operating Supply Voltage | 5 V |
| Maximum Operating Temperature | 80 °C |
| Minimum Operating Supply Voltage | 3.3 V |
| Minimum Operating Temperature | -40 °C |
| Width | 20mm |
