    RS PRO ICM3091N Clamp Meter, Max Current 400A ac

    RS PRO
    RS Stock No.:
    123-2242
    Manufacturer:
    RS PRO
    View all Clamp Meters
    1 In CN stock for delivery within 2 working day(s) (local stock)
    67 In Global stock for delivery within 6 working day(s)
    Add to Basket
    units

    Added

    Price (VAT excluded) Each

    TWD2,999.00

    (exc. GST)

    TWD3,148.95

    (inc. GST)

    unitsPer unit
    1 - 4TWD2,999.00
    5 +TWD2,469.00
    RS Stock No.:
    123-2242
    Manufacturer:
    RS PRO

    Product overview and Technical data sheets


    Legislation and Compliance

    COO (Country of Origin):
    TW

    Product Details

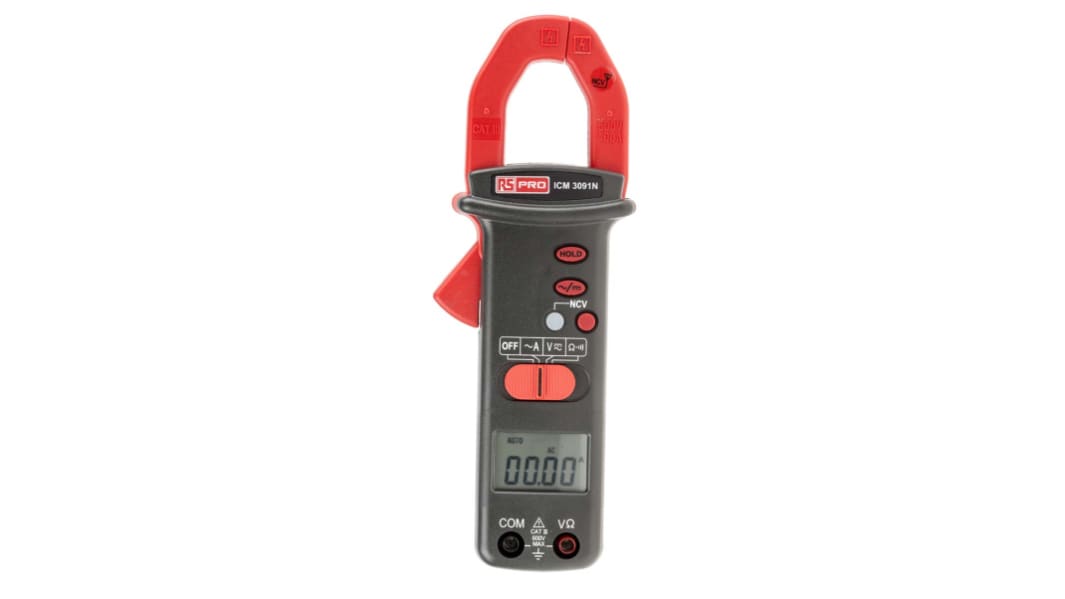

    RS PRO ICM 3091N AC Clamp Meter, 400 A


    RS PRO ICM3091N is a great value auto-ranging AC clamp meter which features a 3 digit LCD display and non-contact voltage detection. This meter is ideal for measuring a range of electrical parameters including AC Current, AC Voltage, Continuity Beeper, DC Voltage and Resistance.

    Features and Benefits:


    • 3 digit LCD display (maximum reading 3999)

    • NCV function (Non-contact voltage detection)

    • Jaw opening suitable for cables 25.4 mm diameter

    • Data hold function

    • Auto power off (30 minutes)

    • Auto ranging

    • Over-range indication ("OL")

    • Operates on 2 x AA batteries (approx 100 hour life)

    • Low battery indication

    • Dimensions 192 x 64 x 31 mm

    • Weight 250 g approximately

    Typical Applications


    Clamp meters are an electrical test tool used to measure electrical characteristics such as AC current, AC and DC voltage, resistance, continuity and more. Clamp meters are often a combination of a basic digital multimeter and a current sensor, offering a versatile electrical measurement tool. Clamp meters are commonly used by:

    • Industrial maintenance technicians

    • Control technicians

    • Electricians – in-house and contractors

    • Facilities, building maintenance and HVAC technicians

    • Service organisations

    FAQs


    What battery does this require?
    The RS PRO ICM3091N clamp meter requires AA (x 2) batteries.

    What is supplied?

    • AA batteries (installed)

    • Test lead

    • User manual

    • Carrying case

    Standards

    IEC1010-1 CAT III 600 V, IEC 1010-2-032

    Supplied with

    Carry case, AA batteries (x2), user manual, test lead

    Specifications

    AttributeValue
    Absolute Maximum AC Current Measurement400A ac
    Absolute Maximum AC Voltage Measurement600V ac
    Absolute Maximum DC Voltage Measurement600V dc
    Absolute Maximum Resistance Measurement400Ω
    Model NumberICM3091N
    AC Current Measurement Resolution10mA
    Clamp Meter TypePower Clamp Meter
    Best AC Current Accuracy±(2% rdg + 10dgts)
    Best AC Voltage Accuracy±(1.5% rdg + 10dgts)
    Best DC Voltage Accuracy±(1% rdg + 5dgts)
    Functions MeasuredAC Current, AC Voltage, Continuity Beeper, DC Voltage, Resistance
    Battery TypeAA
    Resistance Measurement Resolution100mΩ
    Dimensions64 x 31 x 192mm
    DC Voltage Measurement Resolution100mV
    Display TypeLCD
    Best Resistance Measurement Accuracy±1 % + 5 Digits
    Maximum Operating Temperature+40°C
    Minimum Operating Temperature0°C
    Height192mm
    Non-Contact Voltage DetectorYes
    Weight250g
    AC Voltage Measurement Resolution100mV
    Length64mm
    Battery Life100 h
    Jaw Capacity Busbars25.4mm
    Power SourceBattery
    Width31mm
