DiodesZetex Bridge Rectifier, 1000 V 350 A, 4-Pin Single
- RS Stock No.:
- 751-4436
- Mfr. Part No.:
- GBJ2510-F
- Manufacturer:
- DiodesZetex

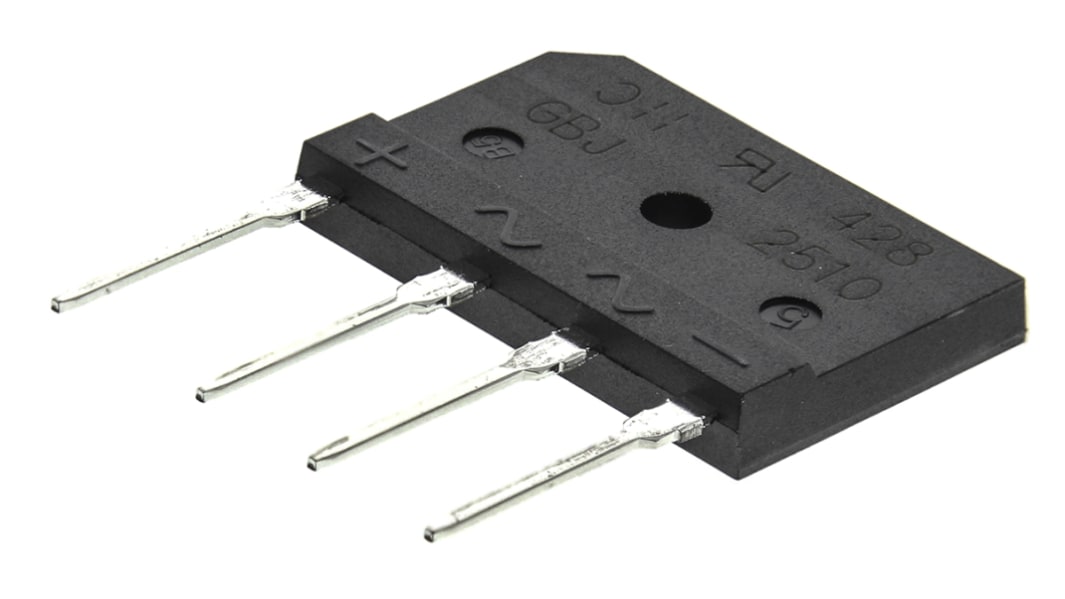

The image is for reference only, please refer to product details and specifications
Bulk discount available
Subtotal (1 pack of 5 units)*
TWD359.00
(exc. GST)
TWD376.95
(inc. GST)
Add 20 units to get free delivery
In Stock
- 10 unit(s) ready to ship from another location
- Plus 180 unit(s) shipping from February 25, 2026
- Plus 55 unit(s) shipping from February 27, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | TWD71.80 | TWD359.00 |
| 25 + | TWD66.00 | TWD330.00 |
*price indicative
- RS Stock No.:
- 751-4436
- Mfr. Part No.:
- GBJ2510-F
- Manufacturer:
- DiodesZetex
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | DiodesZetex | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 1000V | |
| Mount Type | Through Hole | |
| Package Type | GBJ | |
| Number of Phases | 1 | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 350A | |
| Minimum Operating Temperature | -65°C | |
| Forward Current If | 25A | |
| Peak Forward Voltage Vf | 1.05V | |
| Height | 20.3mm | |
| Peak Reverse Current Ir | 500μA | |
| Width | 4.8 mm | |
| Series | GBJ | |
| Standards/Approvals | No | |
| Length | 30.3mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand DiodesZetex | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 1000V | ||
Mount Type Through Hole | ||
Package Type GBJ | ||
Number of Phases 1 | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Peak Non-Repetitive Forward Surge Current Ifsm 350A | ||
Minimum Operating Temperature -65°C | ||
Forward Current If 25A | ||
Peak Forward Voltage Vf 1.05V | ||
Height 20.3mm | ||
Peak Reverse Current Ir 500μA | ||
Width 4.8 mm | ||
Series GBJ | ||
Standards/Approvals No | ||
Length 30.3mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
SIL PCB Mounting, GBJ series
Diodes Inc GBJ series bridge rectifiers in SIL PCB Mounting package
Glass Passivated Die Construction
High Case Dielectric Strength of 2500VRMS
Low Reverse Leakage Current
Bridge Rectifiers - Diodes Inc
A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
Approvals
UL, E94661
