Chassis Mount Microphone Transformer 50kΩ
- RS Stock No.:
- 210-6352
- Mfr. Part No.:
- X187B
- Manufacturer:
- OEP
View all Audio Transformers
14 In stock for delivery within 6 working days
Price (VAT excluded) Each
Was TWD2,520.00
You pay
TWD2,142.00
(exc. GST)
TWD2,249.10
(inc. GST)
| units | Per unit |
| 1 - 9 | TWD2,142.00 |
| 10 + | TWD2,077.00 |
- RS Stock No.:
- 210-6352
- Mfr. Part No.:
- X187B
- Manufacturer:
- OEP
- COO (Country of Origin):
- GB
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
Microphone Input Transformers

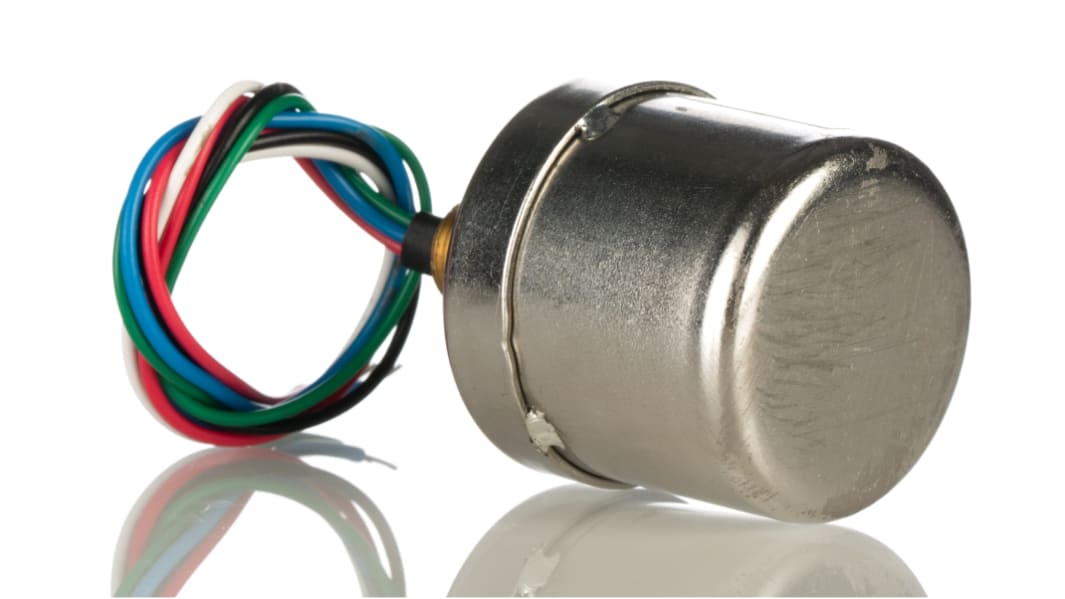

From OEP, this microphone input transformer is suitable for matching 200Ω-600Ω microphones into high impedance loads (50kΩ approx.) The centre tapped primaries mean this input transformer is well suited to balanced microphone applications, and is enclosed in a Mu-metal screening can to minimise hum pick-up. Ideal for use in instrument recording.
Features and Benefits:
• Varnish impregnated windings
• Mounting by single 0·375in. threaded bush through which pass flexible connecting leads
• Input: Blue, Red (CT White)
• Output: Black, Green
• Primary Impedance: 200 - 600Ω
• Secondary Impedance: 50kΩ
• Frequency Response: -3dB at 25Hz/40kHZ
• Dimensions: 32 x 34 mm
• Varnish impregnated windings
• Mounting by single 0·375in. threaded bush through which pass flexible connecting leads
• Input: Blue, Red (CT White)
• Output: Black, Green
• Primary Impedance: 200 - 600Ω
• Secondary Impedance: 50kΩ
• Frequency Response: -3dB at 25Hz/40kHZ
• Dimensions: 32 x 34 mm
Specifications
| Attribute | Value |
| Primary Impedance | 600Ω |
| Secondary Impedance | 50kΩ |
| Primary DC Resistance | 30.9Ω |
| Secondary DC Resistance | 1520Ω |
| Dimensions | 34 (Dia.) x 31mm |
| Mounting Type | Chassis Mount |
| Termination Type | Termination Wire |
| Weight | 100g |
| Depth | 31mm |
| Diameter | 34mm |
| Turns Ratio | 1 → 9.13 |
| Maximum Operating Frequency | 30kHz |
| Minimum Operating Frequency | 25Hz |
