Panel Mount Audio Transformer 8 Ω, 16 Ω 3W
- RS Stock No.:
- 123-7242
- Mfr. Part No.:
- R35A03F/4
- Manufacturer:
- OEP
2 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD2,188.00
(exc. GST)
TWD2,297.40
(inc. GST)
| Units | Per unit |
| 1 - 9 | TWD2,188.00 |
| 10 + | TWD2,082.00 |
- RS Stock No.:
- 123-7242
- Mfr. Part No.:
- R35A03F/4
- Manufacturer:
- OEP
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

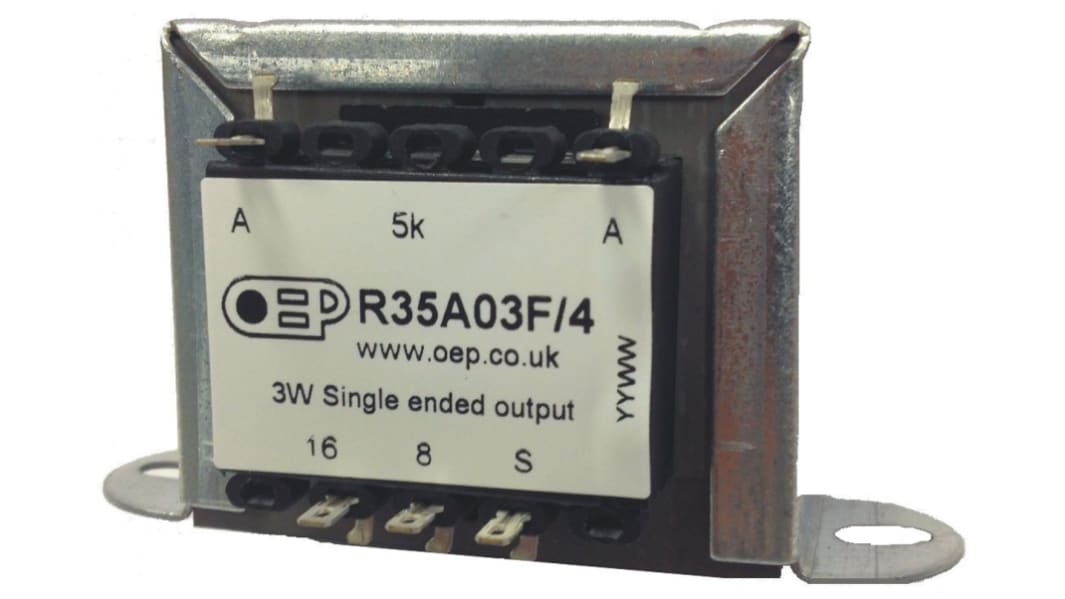

OEP R35A03F/4 Audio Output Transformers
R35A03F/4 pro audio transformers from OEP have a 3W output and are designed for use with single ended amplifiers with EL84 valves
Typical inductance is 6 H at 1000Hz, 1V
Hi-pot, primary to secondary is 2 kVrMS for 2 seconds
45 mA maximum DC in primary
Hi-pot, primary to secondary is 2 kVrMS for 2 seconds
45 mA maximum DC in primary
Specifications
Attribute | Value |
|---|---|
| Primary Impedance | 5kΩ |
| Secondary Impedance | 8 Ω, 16 Ω |
| Primary DC Resistance | 365Ω |
| Power Rating | 3W |
| Secondary DC Resistance | 900mΩ |
| Dimensions | 87.3 x 52 x 49.5mm |
| Mounting Type | Panel Mount |
| Termination Type | Solder |
| Weight | 465g |
| Depth | 49.5mm |
| Length | 87.3mm |
| Width | 52mm |
| Maximum Operating Frequency | 20kHz |
| Construction | Open Frame |
| Maximum Temperature | +60°C |
| Minimum Operating Frequency | 50Hz |
| Core Type | Laminated |
| Isolation Voltage | 2000V |
| Minimum Temperature | -20°C |
