- RS Stock No.:
- 124-8858
- Mfr. Part No.:
- QUARTZ-LITE-21-LTE(EU) + ACC
- Manufacturer:
- Siretta
View all Routers
17 In stock for delivery within 6 working days
Price (VAT excluded) Each
TWD17,570.00
(exc. GST)
TWD18,448.50
(inc. GST)
units | Per unit |
1 - 4 | TWD17,570.00 |
5 + | TWD15,811.00 |
- RS Stock No.:
- 124-8858
- Mfr. Part No.:
- QUARTZ-LITE-21-LTE(EU) + ACC
- Manufacturer:
- Siretta
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

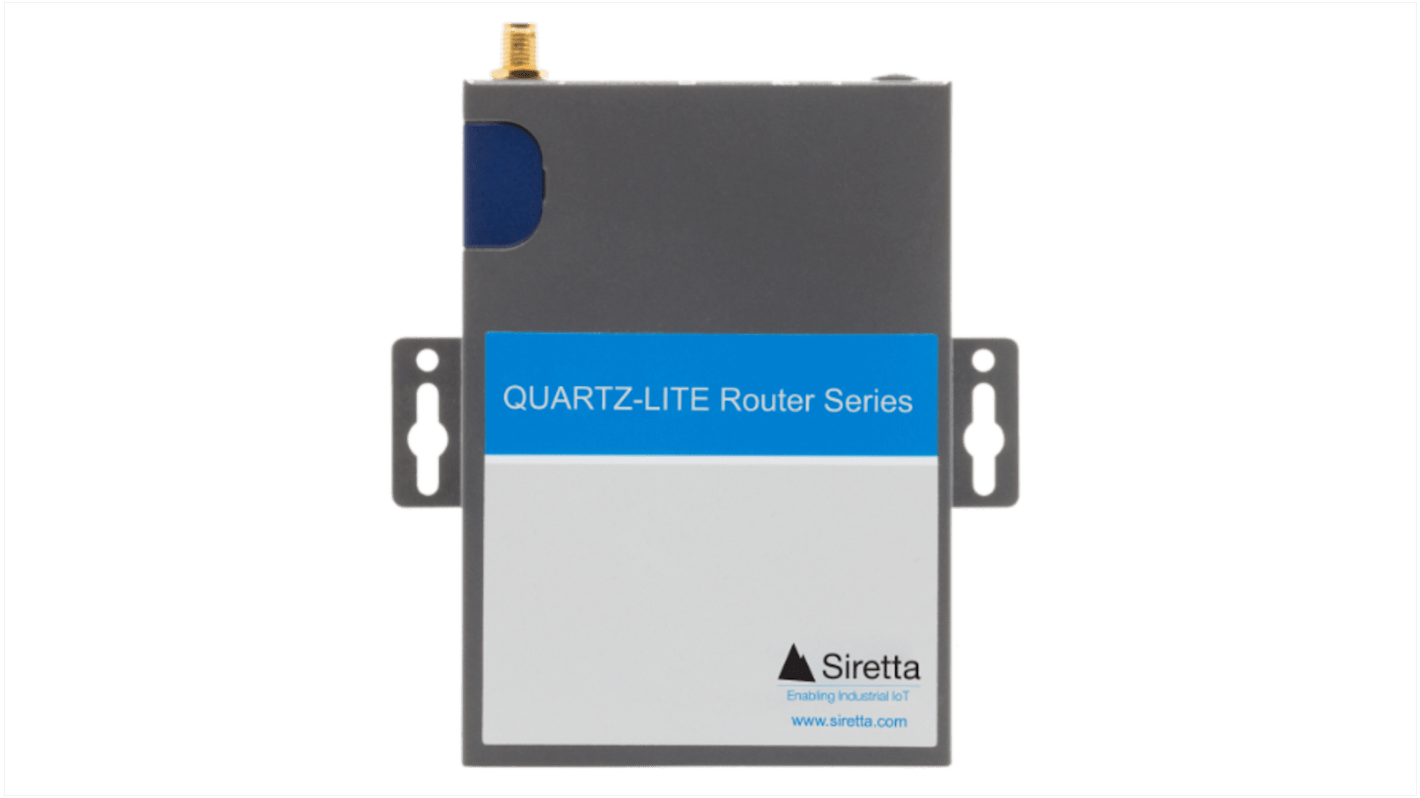

Siretta QUARTZ Router
The Siretta QUARTZ router has high speed European LTE/4G technology, which offers reliable, secure and high-speed wireless connectivity. It has dual port Ethernet capability and a single SIM as a standard, with 150Mbs data rate Wi-Fi. The QUARTZ series is a quality range designed for use in industrial environments, needing high performance and a robust hard enclosure as a standard. It is an ideal wireless data transfer device for high-speed data applications transferring large amounts of data.
Features and Benefits
European 4G/LTE bands
Strong resistance to electromagnetic interference
Built-in watchdog, multi-link detection
Wi-Fi antenna interface
Excellent temperature endurance
Modem type is LTE
Number of port: 1 x SIM, 2 x LAN
Built-in watchdog, multi-link detection
Supports DNS proxy and Dynamic DNS (DNSS)
Supports timing operation
Supports LED status indication
Supports APN and VDPN wireless private network access
Supports 802.11b/g/n Wi-Fi, 150Mbps data rate
Local and remote management
SNMP network management, NTP support
WAN supports PPOE, Static IP, DHCP Client (with 2x LAN)
Operating temperature ranges between -30°C and 70°C
The supply voltage ranges between 7.5VDC and 32VDC
Strong resistance to electromagnetic interference
Built-in watchdog, multi-link detection
Wi-Fi antenna interface
Excellent temperature endurance
Modem type is LTE
Number of port: 1 x SIM, 2 x LAN
Built-in watchdog, multi-link detection
Supports DNS proxy and Dynamic DNS (DNSS)
Supports timing operation
Supports LED status indication
Supports APN and VDPN wireless private network access
Supports 802.11b/g/n Wi-Fi, 150Mbps data rate
Local and remote management
SNMP network management, NTP support
WAN supports PPOE, Static IP, DHCP Client (with 2x LAN)
Operating temperature ranges between -30°C and 70°C
The supply voltage ranges between 7.5VDC and 32VDC
Applications
Remote management
Telemetry condition monitoring
CCTVs
ATMs
Vending machines
Telemetry condition monitoring
CCTVs
ATMs
Vending machines
Certifications
ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007
BS EN 61340-5-1:2007
Specifications
Attribute | Value |
Router Type | Modem Router |
Model | QUARTZ-LITE-W21-UMTS(EU) |
Wireless Connectivity | 4G LTE |
Network Speed | 150Mbit/s |
WiFi Standard | 802.11 b/g/n |
Wireless Data Rate | 150Mbit/s |
WiFi Band | 0.9 GHz, 2.1GHz |
Dimensions | 73.5 x 103 x 23.5mm |
Weight | 300g |
Depth | 103mm |
Width | 73.5mm |
Height | 23.5mm |
