Avago HSMF-A2xx Series LEDs

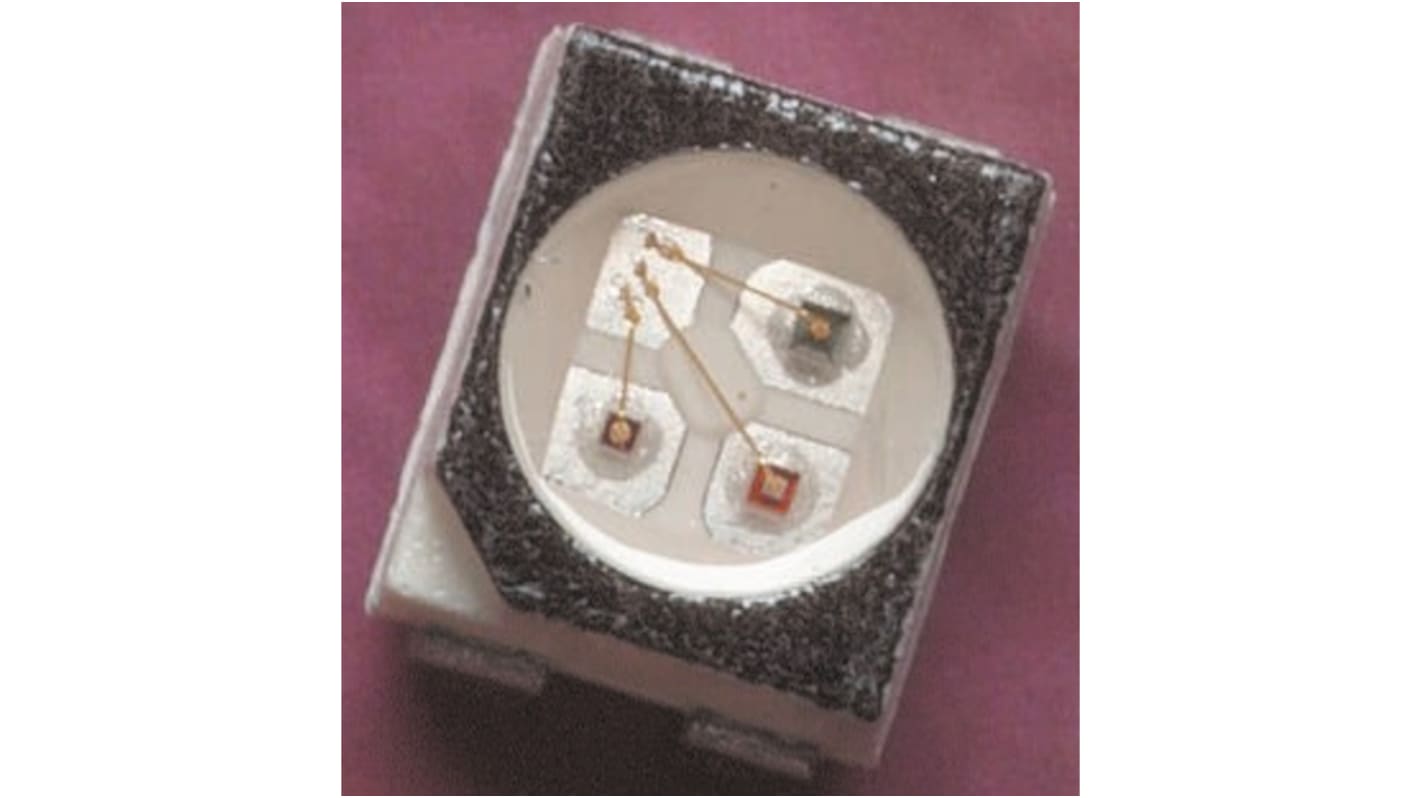

Avago Technologies' HSMx-A2 series are bi-colour surface mount (SMT) LED indicators. They are in the industry standard PLCC-4 package. Their high reliability enables this family of LEDs to be ideal fo ra varety of applications, including harsh interior automotive and interior signs. The HSMx-A2 series have a wide viewing angle and a built-in reflector, increasing the intensity of their light output. Their flat top surface makes the LEDs easy to mate with light pipes. Suitable for general backlighting in automobile interior, office equipment, industrial equipment and home appliances.

Features of the HSMF-A2xx LEDs:
- 3.2 x 2.8 x 1.9 mm PLCC-4 package size
- Viewing angle 120°
- High reliability
- Enhanced silicone resin material
- High brightness
- AllnGaP and InGaN dice technology
- Variety of colours

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

Visible Light LEDs, Avago Technologies

Units	Per unit
500 - 990	TWD16.90
1000 +	TWD16.80

Select all	Attribute	Value
	Brand	Broadcom
	LED Colours	Green, Red
	Package Type	PLCC 4
	Mounting Type	Surface Mount
	Number of LEDs	2
	Forward Voltage	2.2 V
	Luminous Intensity	8 mcd
	Number of Pins	4
	Viewing Angle	120 °
	Lens Shape	Round
	Dominant Wavelength	560 / 626 nm
	Lens Colour	Clear
	Dimensions	3.2 x 2.8 x 1.8mm

	Select all
	Brand Broadcom
	LED Colours Green, Red
	Package Type PLCC 4
	Mounting Type Surface Mount
	Number of LEDs 2
	Forward Voltage 2.2 V
	Luminous Intensity 8 mcd
	Number of Pins 4
	Viewing Angle 120 °
	Lens Shape Round
	Dominant Wavelength 560 / 626 nm
	Lens Colour Clear
	Dimensions 3.2 x 2.8 x 1.8mm

Broadcom2.2 V Green & Red LED PLCC 4 SMD, HSMF-A203-A00J1
