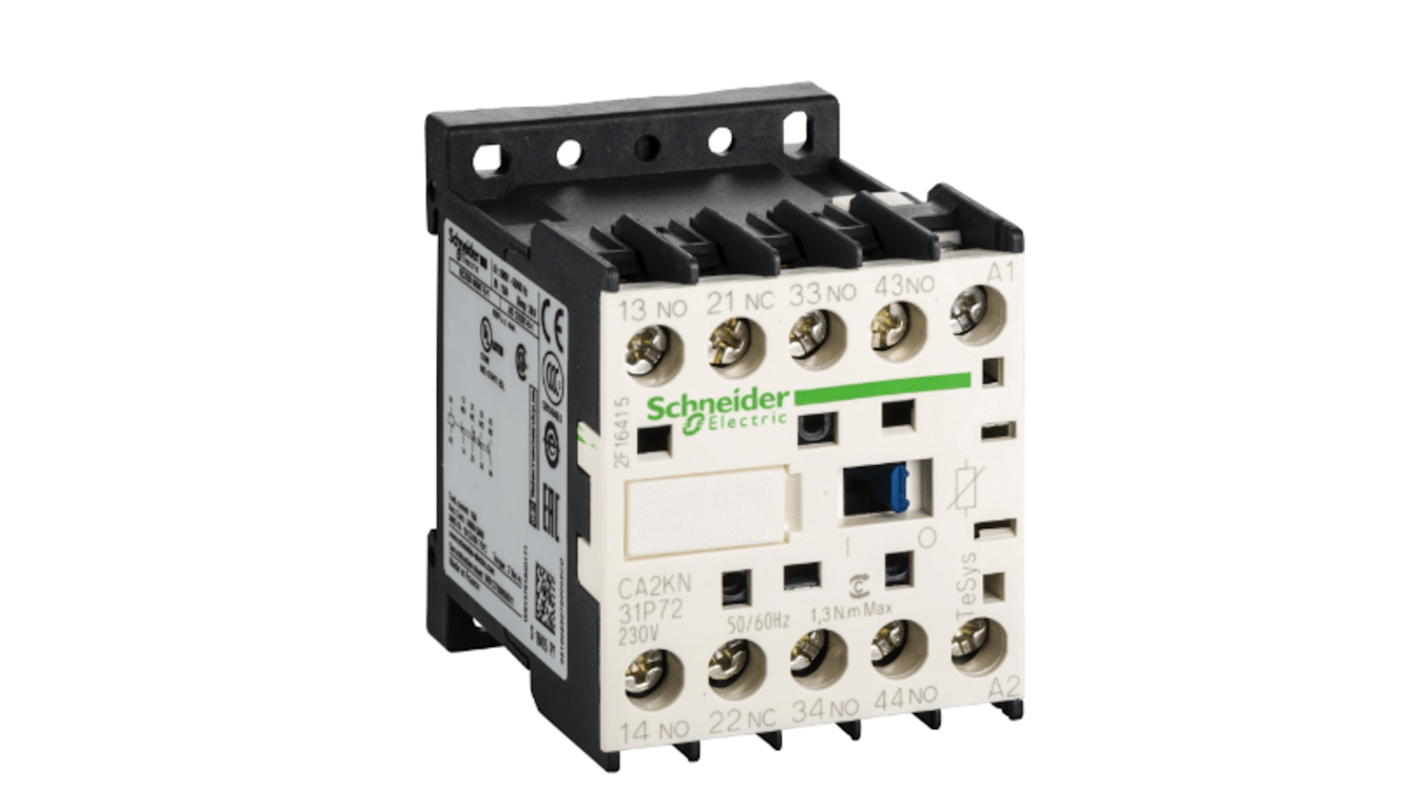

Schneider Electric TeSyS CA Contactor, 230V Coil, 3-Pole, 1.3 W 230V, 3 NO/1 NC
- RS Stock No.:
- 220-1214
- Mfr. Part No.:
- CA2KN31P72
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
TWD2,254.00
(exc. GST)
TWD2,366.70
(inc. GST)
FREE delivery for orders over NT$1,300.00
In Stock
- 12 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | TWD2,254.00 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS Stock No.:
- 220-1214
- Mfr. Part No.:
- CA2KN31P72
- Manufacturer:
- Schneider Electric
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Contactor | |
| Coil Voltage | 230V | |
| Number of Poles | 3 | |
| Power Rating | 1.3W | |
| Series | TeSyS CA | |
| Function | Control Circuit | |
| Mount Type | Plate, Rail Mount | |
| Normal State Configuration | 3 NO/1 NC | |
| Number of Auxiliary Contacts | 4 | |
| Auxiliary Contact Configuration | 3 NO/1 NC | |
| Terminal Type | Screw Clamp | |
| Minimum Operating Temperature | -25°C | |
| Operational Current Ie | 10A | |
| Control Circuit Voltage Uc | 230V | |
| Contactor Application | Control Circuit | |
| Maximum Operating Temperature | 50°C | |
| Standards/Approvals | IEC 60947 | |
| Width | 45mm | |
| Length | 58mm | |
| Depth | 57mm | |
| Better World Product | Yes | |
| Pole and Throw Configuration | 4 | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Contactor | ||
Coil Voltage 230V | ||
Number of Poles 3 | ||
Power Rating 1.3W | ||
Series TeSyS CA | ||
Function Control Circuit | ||
Mount Type Plate, Rail Mount | ||
Normal State Configuration 3 NO/1 NC | ||
Number of Auxiliary Contacts 4 | ||
Auxiliary Contact Configuration 3 NO/1 NC | ||
Terminal Type Screw Clamp | ||
Minimum Operating Temperature -25°C | ||
Operational Current Ie 10A | ||
Control Circuit Voltage Uc 230V | ||
Contactor Application Control Circuit | ||
Maximum Operating Temperature 50°C | ||
Standards/Approvals IEC 60947 | ||
Width 45mm | ||
Length 58mm | ||
Depth 57mm | ||
Better World Product Yes | ||
Pole and Throw Configuration 4 | ||
Schneider Electric TesSys CA2K Series Contactor, 230V Coil Voltage, 10A Operational Current - CA2KN31P72
This contactor is a three-pole control relay designed for use in control circuits where Compact size and clear auxiliary switching are required. It operates from an AC control supply and is intended for industrial electrical and automation panels, providing reliable switching of control loads in environments with ambient temperatures from -25 to 50°C.
Features & Benefits
• 3NO and 1NC auxiliary contacts provide versatile control switching
• 230V control Coil ensures compatibility with standard AC supplies
• 10A conventional thermal current supports moderate control loads
• 110A making capacity manages high inrush from inductive loads
• Screw clamp terminals simplify wiring and secure conductor connection
• 1.3W heat dissipation reduces panel thermal loading
• 230V control Coil ensures compatibility with standard AC supplies
• 10A conventional thermal current supports moderate control loads
• 110A making capacity manages high inrush from inductive loads
• Screw clamp terminals simplify wiring and secure conductor connection
• 1.3W heat dissipation reduces panel thermal loading
Applications
• Suitable for motor control pilot circuits requiring auxiliary logic
• Ideal for interlock and sequencing functions in automation racks
• used with contactor assemblies in building services control panels
• Can be used for switching solenoids and small actuators in machinery
• Ideal for interlock and sequencing functions in automation racks
• used with contactor assemblies in building services control panels
• Can be used for switching solenoids and small actuators in machinery
How is the device mounted in switchgear?
It accepts both plate and DIN-rail mounting, allowing installation on flat panels or standard rail systems.
What conductor sizes can be terminated on the terminals?
Screw clamp terminals support solid conductors 1.5 to 4mm² and flexible conductors 0.34 to 4mm² depending on whether ferrules are fitted.
How quickly does the relay respond on energisation?
NO contacts close within approximately 10 to 20 MS after Coil energisation while NC contacts open within about 5 to 15 MS.
What mechanical endurance can be expected under frequent operation?
Mechanical life is rated to 10 M cycles with a maximum operating rate up to 10,000 cyc/h for high-duty applications.
Are there specific protection or power limits for associated fusing?
Associated fuse rating is 10A gG in line with applicable standards for the intended utilisation categories.
