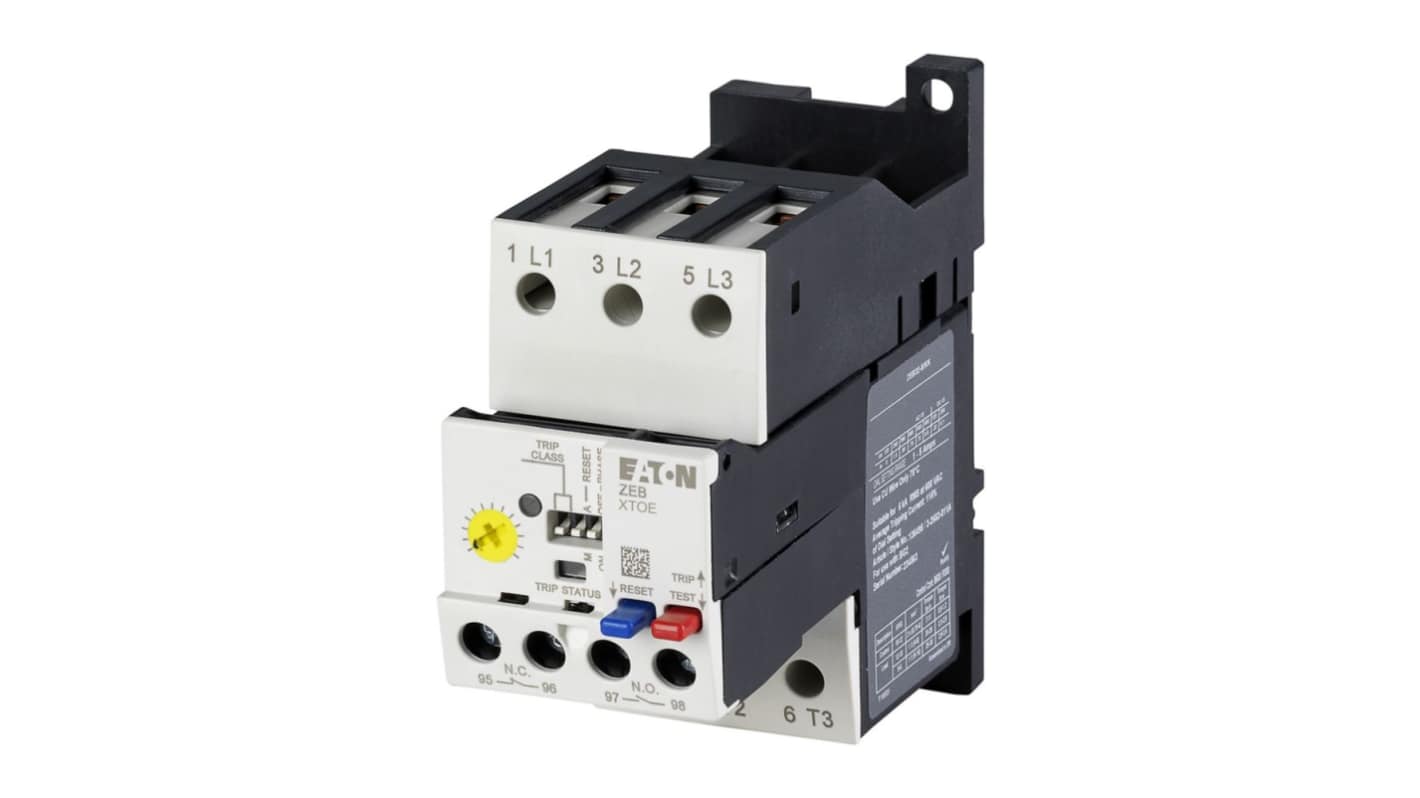

Eaton Electronic Overload Relay 1 NO/1 NC, 1.65A F.L.C, 5A Contact Rating, 690V 1P
- RS Stock No.:
- 243-359
- Mfr. Part No.:
- 136498 ZEB32-1,65-GF/KK
- Manufacturer:
- Eaton
Subtotal (1 unit)*
TWD11,428.00
(exc. GST)
TWD11,999.40
(inc. GST)
FREE delivery for orders over NT$1,300.00
Stocked by manufacturer
- Ready to ship from July 06, 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | TWD11,428.00 |
*price indicative
- RS Stock No.:
- 243-359
- Mfr. Part No.:
- 136498 ZEB32-1,65-GF/KK
- Manufacturer:
- Eaton
Specifications
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Electronic Overload Relay | |
| FLC Motor Rating | 1.65A | |
| Relay Contact Current | 5A | |
| Series | Moeller | |
| Pole and Throw Configuration | 1P | |
| Terminal Type | Screw | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Push Button | |
| IP Rating | IP20 | |
| Width | 45mm | |
| Minimum Operating Temperature | -25°C | |
| Number of Auxiliary Contacts | 2 | |
| Adjustable Current Range | 0.33 to 1.65 A | |
| Maximum Operating Temperature | 65°C | |
| Length | 108mm | |
| Standards/Approvals | CE CSA File No.:2290956 CSA-C22.2 No. 14 VDE 0660 UL UL Category Control No.:NKCR IEC/EN 60947-4-1 CSA CSA Class No.:3211-03 IEC/EN 60947 UL 508 UL File No.:E1230 | |
| Depth | 110mm | |
| Control Voltage | 690V | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Electronic Overload Relay | ||
FLC Motor Rating 1.65A | ||
Relay Contact Current 5A | ||
Series Moeller | ||
Pole and Throw Configuration 1P | ||
Terminal Type Screw | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Push Button | ||
IP Rating IP20 | ||
Width 45mm | ||
Minimum Operating Temperature -25°C | ||
Number of Auxiliary Contacts 2 | ||
Adjustable Current Range 0.33 to 1.65 A | ||
Maximum Operating Temperature 65°C | ||
Length 108mm | ||
Standards/Approvals CE CSA File No.:2290956 CSA-C22.2 No. 14 VDE 0660 UL UL Category Control No.:NKCR IEC/EN 60947-4-1 CSA CSA Class No.:3211-03 IEC/EN 60947 UL 508 UL File No.:E1230 | ||
Depth 110mm | ||
Control Voltage 690V | ||
RoHS Status: Exempt
The Eaton Moeller series ZEB overload relay is a premium solution tailored for both efficiency and safety in industrial environments. This electronic overload relay features a separate mounting design and is equipped with sophisticated earth-fault protection, making it ideal for diverse applications. Boasting a current setting range from 0.33 A to 1.65 A, the relay ensures optimal performance under varying load conditions. Its compact dimensions and lightweight construction further enhance its usability, allowing for seamless integration into existing setups. With certifications from leading international standards, this product guarantees reliability and peace of mind, providing essential overload and earth-fault protection for vital machinery. The Eaton Moeller series embodies innovation and quality, catering to the rigorous demands of modern industries.
Sleek and robust electronic design optimises performance
Phase-failure sensitivity ensures enhanced operational safety
Automatic reset function promotes operational continuity
IP20 degree of protection enhances durability in various environments
Flexible mounting options facilitate easy installation
Suitable for a wide range of voltage and current applications
Integrated with advanced electromagnetic compatibility features
Minimal heat generation contributes to overall energy savings
Meets stringent international certifications for quality assurance
