- RS Stock No.:
- 194-6811
- Mfr. Part No.:
- FLUKE-805 FC/805 ES
- Manufacturer:
- Fluke
6 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD129,311.00
(exc. GST)
TWD135,776.55
(inc. GST)
Units | Per unit |
1 + | TWD129,311.00 |
- RS Stock No.:
- 194-6811
- Mfr. Part No.:
- FLUKE-805 FC/805 ES
- Manufacturer:
- Fluke
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details

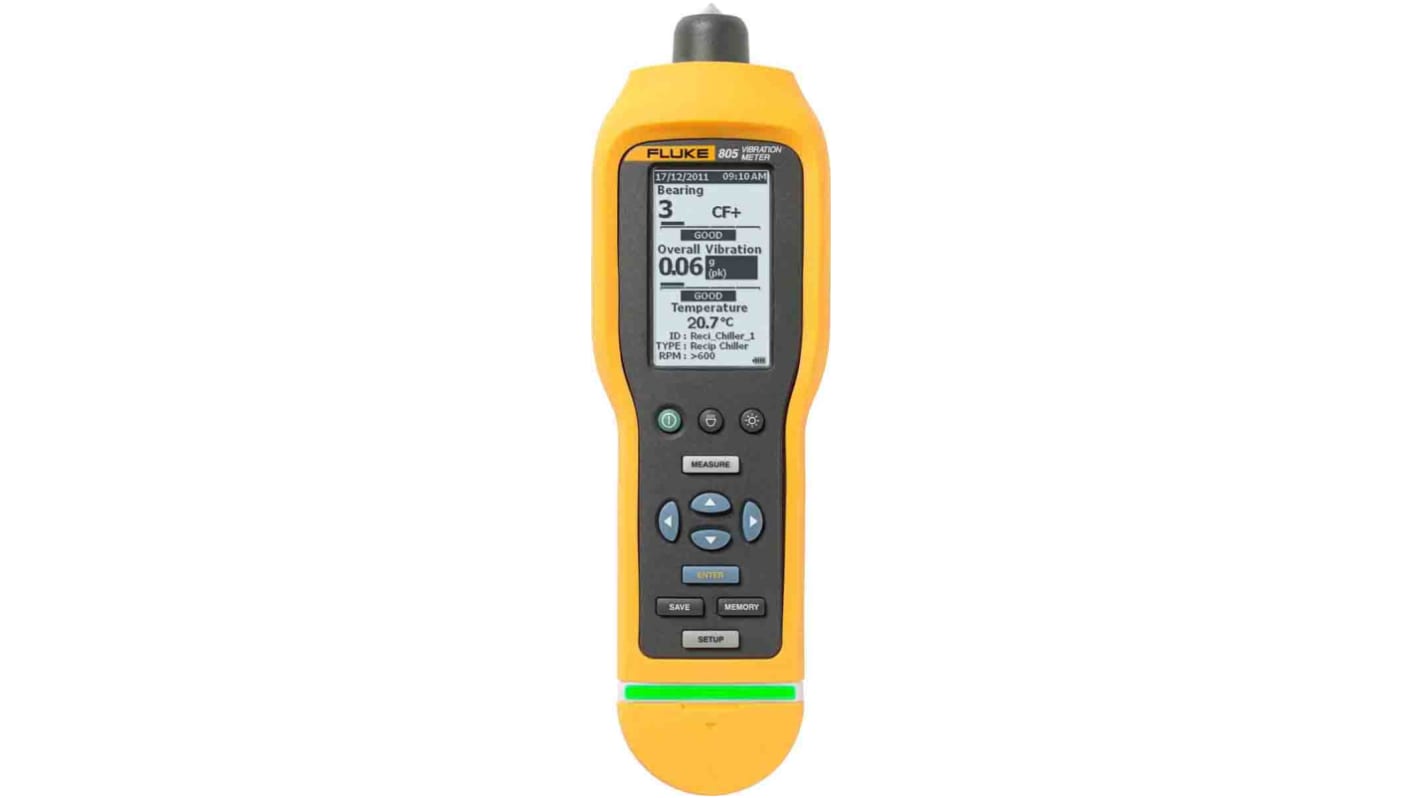

FLUKE Vibration Meter, 10 to 1000Hz Low-Frequency Range, 4000 to 20,000Hz High-Frequency Range - FLUKE-805 FC/805 ES
To accurately measure the acceleration, displacement and velocity of machinery, pick this vibration meter from FLUKE. It helps you keep a finger on the pulse of mechanical performance to prevent service interruptions. With a 100g peak-to-peak vibration limit, this instrument handles heavy-duty applications without flinching. It features an inbuilt 16-bit A/D converter that conveniently displays fluctuating analogue signals as digital measurements. Thanks to a broad operating temperature range between -20°C and +50°C, this meter's a sure bet in tough conditions.
Features & Benefits
On-board memory stores up to 3500 readings for easy comparisons
Large LCD clearly shows results
IP54-rated unit for limited dust protection and resistance to water sprays
Large LCD clearly shows results
IP54-rated unit for limited dust protection and resistance to water sprays
Applications
Industrial machinery
Railways
Aerospace systems
Medical imaging equipment
Railways
Aerospace systems
Medical imaging equipment
Can I connect this vibration meter to my PC?
Yes, you can link it to your PC or other smart device through the FLUKE Connect App. This makes it easy to create and sync asset lists, schedules and outcomes. You can even store and share data in the cloud.
Can I use this instrument in poorly lit conditions?
Yes, this meter has a built-in torch to light up dark areas.
Specifications
Attribute | Value |
---|---|
Measurement Parameters | Acceleration, Displacement, Velocity |
Maximum Acceleration | 100 (Vibration meter) g, 50 (Sensor) g |
Minimum Acceleration | 0.01 (Sensor) g, 50 (Vibration meter) g |
Communication Protocol | USB |
Maximum Operating Temperature | +50°C |
Minimum Operating Temperature | -20°C |
Display Type | LCD |
Keypad Type | 12 |
Battery Type | AA |
Model Number p | 805 FC + 805 ES |
