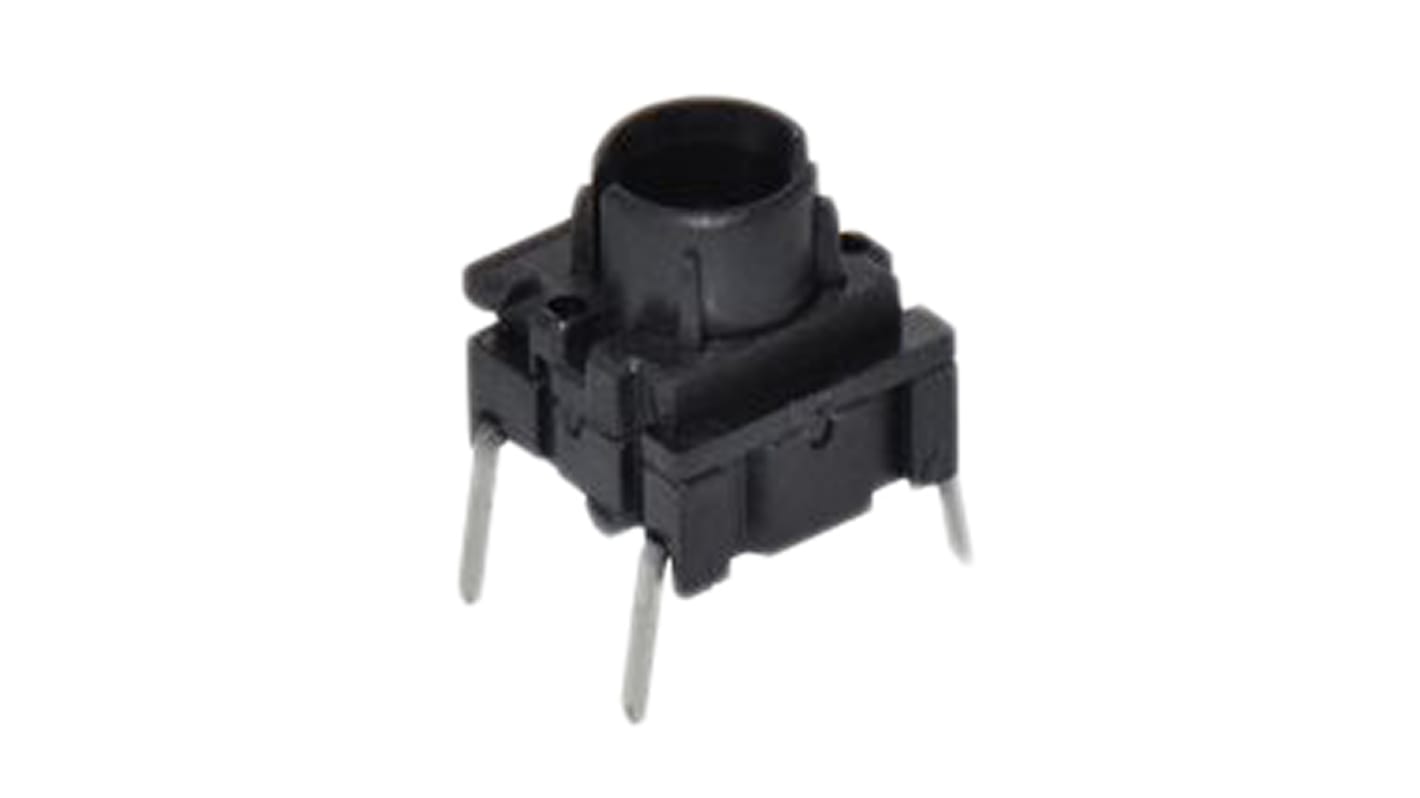

IP67 Yellow Side Cap Tactile Switch, SPST 50 mA 6.5 (Dia.)mm PCB
- RS Stock No.:
- 912-0352
- Mfr. Part No.:
- 3FTH940
- Manufacturer:
- MEC
479 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD199.00
(exc. GST)
TWD208.95
(inc. GST)
| Units | Per unit |
| 1 - 9 | TWD199.00 |
| 10 - 24 | TWD193.00 |
| 25 + | TWD185.00 |
- RS Stock No.:
- 912-0352
- Mfr. Part No.:
- 3FTH940
- Manufacturer:
- MEC
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- DK
Product Details
Multimec® 3F Switches
SPNO momentary action
Sealed to IP67
Sealed to IP67
Specifications
Attribute | Value |
|---|---|
| Contact Configuration | SPST |
| Terminal Type | Pc Pin |
| Switch Operation | Momentary |
| Actuator Length | 6.5 (Dia.)mm |
| Actuator Colour | Yellow |
| Actuator Type | Side Cap |
| Length | 12.5mm |
| Width | 10.4mm |
| Dimensions | 12.5 x 10.4mm |
| Illuminated | Yes |
| Mounting Type | PCB |
| Contact Current Rating | 50 mA |
| IP Rating | IP67 |
| Operating Force | 3.5 N |
| Voltage Rating | 24V dc |
| Maximum Operating Temperature | +160°C |
| Operating Temperature Range | -40 → +160°C |
| Minimum Operating Temperature | -40°C |
| Mechanical Life | 10000000Operations |
