RS PRO 42 bar Carbon Steel Thermodynamic Steam Trap, 1 in BSP Female
- RS Stock No.:
- 720-9207
- Manufacturer:
- RS PRO
8 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD11,101.00
(exc. GST)
TWD11,656.05
(inc. GST)
| Units | Per unit |
| 1 - 4 | TWD11,101.00 |
| 5 + | TWD9,137.00 |
- RS Stock No.:
- 720-9207
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- PT
Product Details

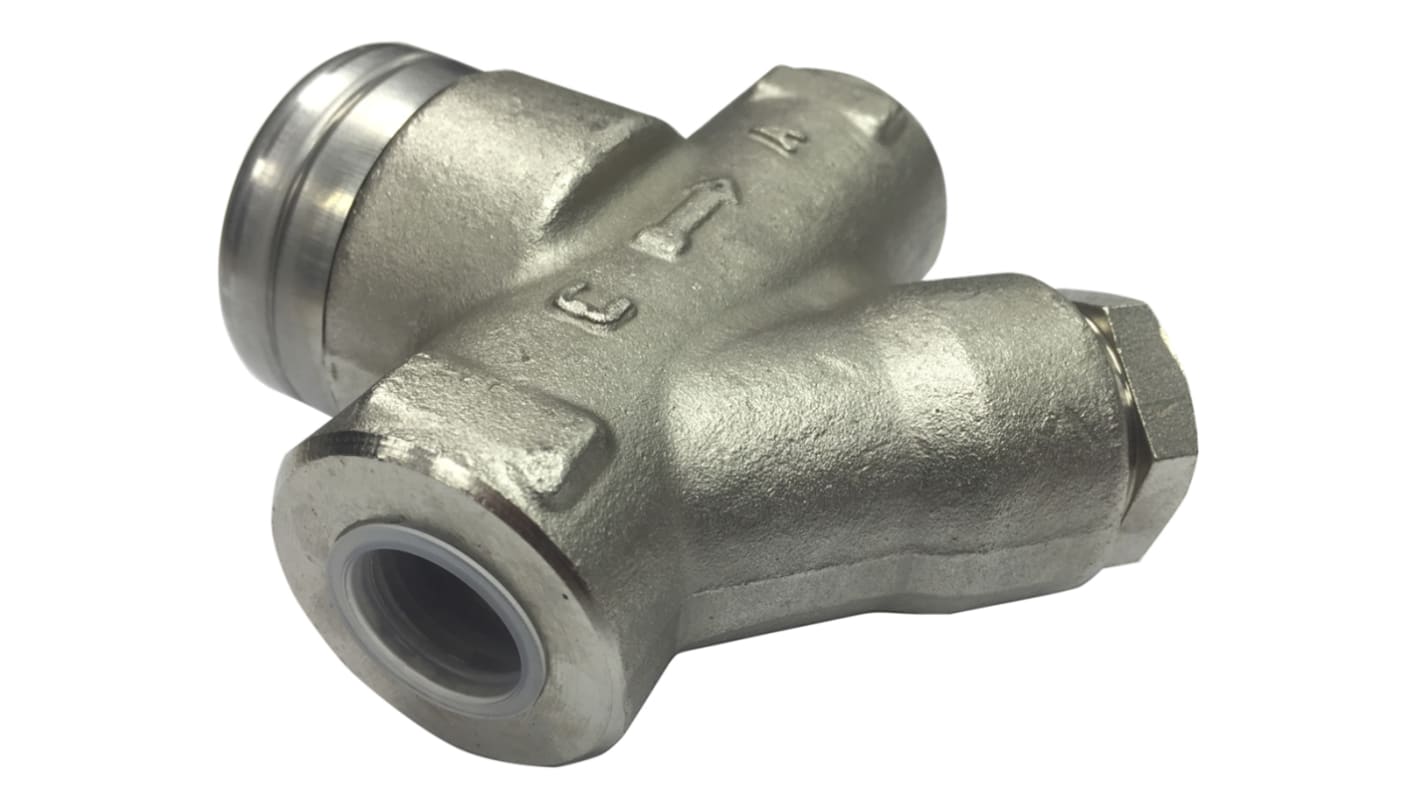

Thermodynamic Steam Trap
A compact, lightweight and easy to install thermodynamic disc steam trap which is excellent for high pressure systems including steam tracing applications. Manufactured from stainless steel this steam trap has only one moving part and offers a wide operating range, without adjustment.
Connections are female screwed
Intermittent discharge
Operates on superheated steam
The seat and the disc can be easily replaced in the field without removing the trap from the line
Unaffected by water hammer and vibrations
Built-in, easy to clean strainer
Intermittent discharge
Operates on superheated steam
The seat and the disc can be easily replaced in the field without removing the trap from the line
Unaffected by water hammer and vibrations
Built-in, easy to clean strainer
Specifications
Attribute | Value |
|---|---|
| Trap Type | Thermodynamic |
| Connection | 1 in BSP Female |
| Orientation | Horizontal |
| Maximum Working Pressure | 42 bar |
| Maximum Temperature | +300°C |
| Body Material | Carbon Steel |
| Gasket Material | Graphite |
| Connection Gender | Female |
| Connection Size | 1in |
| Thread Standard or Connection Type | BSP |
