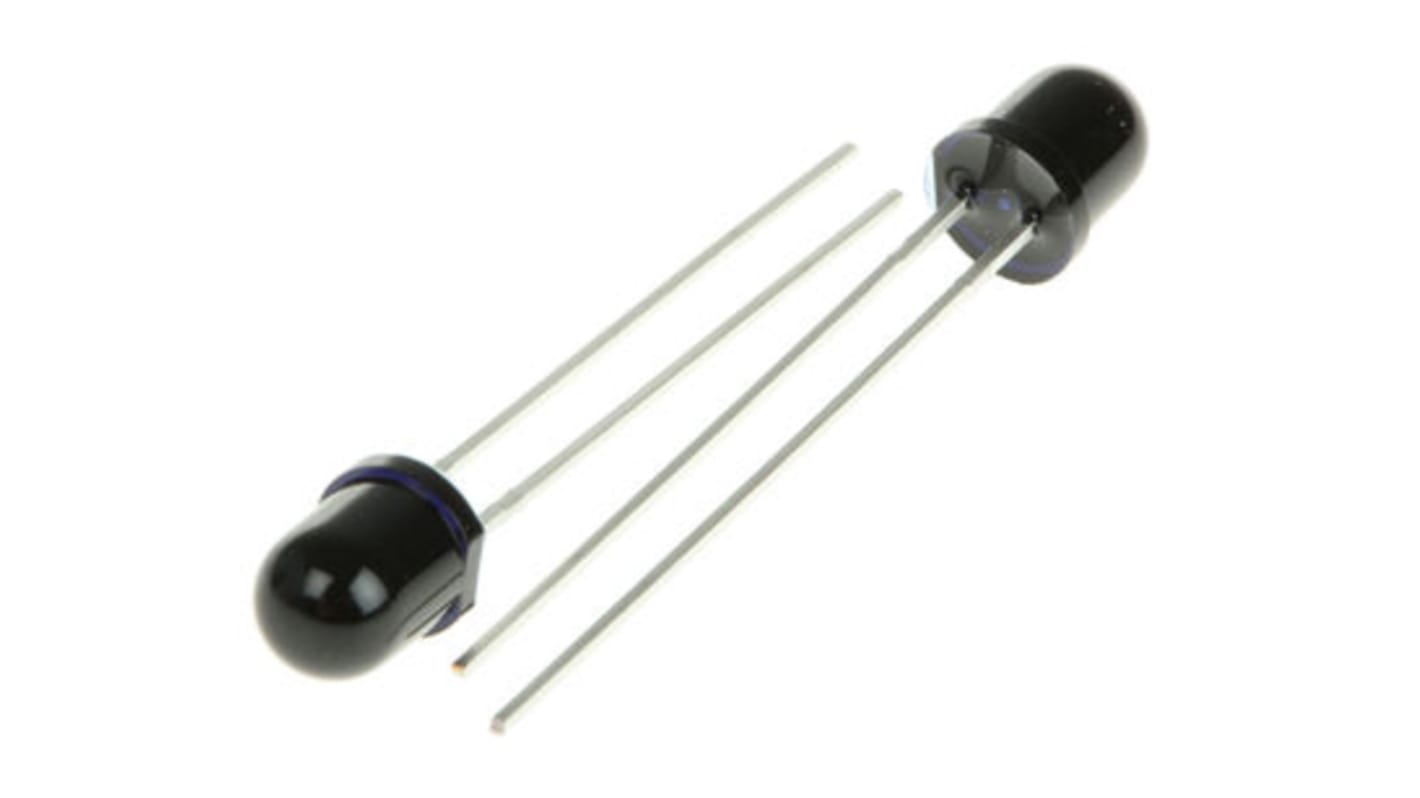

SFH 314 FA-2/3 ams OSRAM, 80 ° IR Phototransistor, Through Hole 2-Pin T-1 3/4 package
- RS Stock No.:
- 912-8560
- Mfr. Part No.:
- SFH 314 FA-2/3
- Manufacturer:
- ams OSRAM
Temporarily out of stock - back order for despatch 26/07/2024, delivery within 6 working days
Added
Price (VAT excluded) Each (In a Bag of 1000)
TWD9.20
(exc. GST)
TWD9.66
(inc. GST)
| Units | Per unit | Per Bag* |
| 1000 - 1000 | TWD9.20 | TWD9,200.00 |
| 2000 + | TWD9.00 | TWD9,000.00 |
| *price indicative | ||
- RS Stock No.:
- 912-8560
- Mfr. Part No.:
- SFH 314 FA-2/3
- Manufacturer:
- ams OSRAM
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Phototransistor T-1 3/4 (5mm) Package
This family of NPN silicon phototransistors, from OSRAM Opto Semiconductors, are a range of 5mm (T-1 3/4) through-hole devices. They have both clear or black plastic lenses, the diffused lenses being used for daylight filters. Suitable applications include; computer-controlled flashes, photointerrupters, industrial electronics and for control/drive circuits.
5mm (T-1 3/4) packages
Through-hole mounting
Through-hole mounting
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
IR Phototransistors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared |
| Typical Fall Time | 14µs |
| Typical Rise Time | 14µs |
| Number of Channels | 1 |
| Maximum Light Current | 8600µA |
| Maximum Dark Current | 200nA |
| Angle of Half Sensitivity | 80 ° |
| Polarity | NPN |
| Number of Pins | 2 |
| Mounting Type | Through Hole |
| Package Type | T-1 3/4 |
| Dimensions | 5.9 x 5.9 x 6.9mm |
| Collector Current | 50mA |
| Maximum Wavelength Detected | 1080nm |
| Spectral Range of Sensitivity | 740 → 1080 nm |
| Minimum Wavelength Detected | 740nm |
| Length | 5.9mm |
| Width | 5.9mm |
| Height | 6.9mm |
