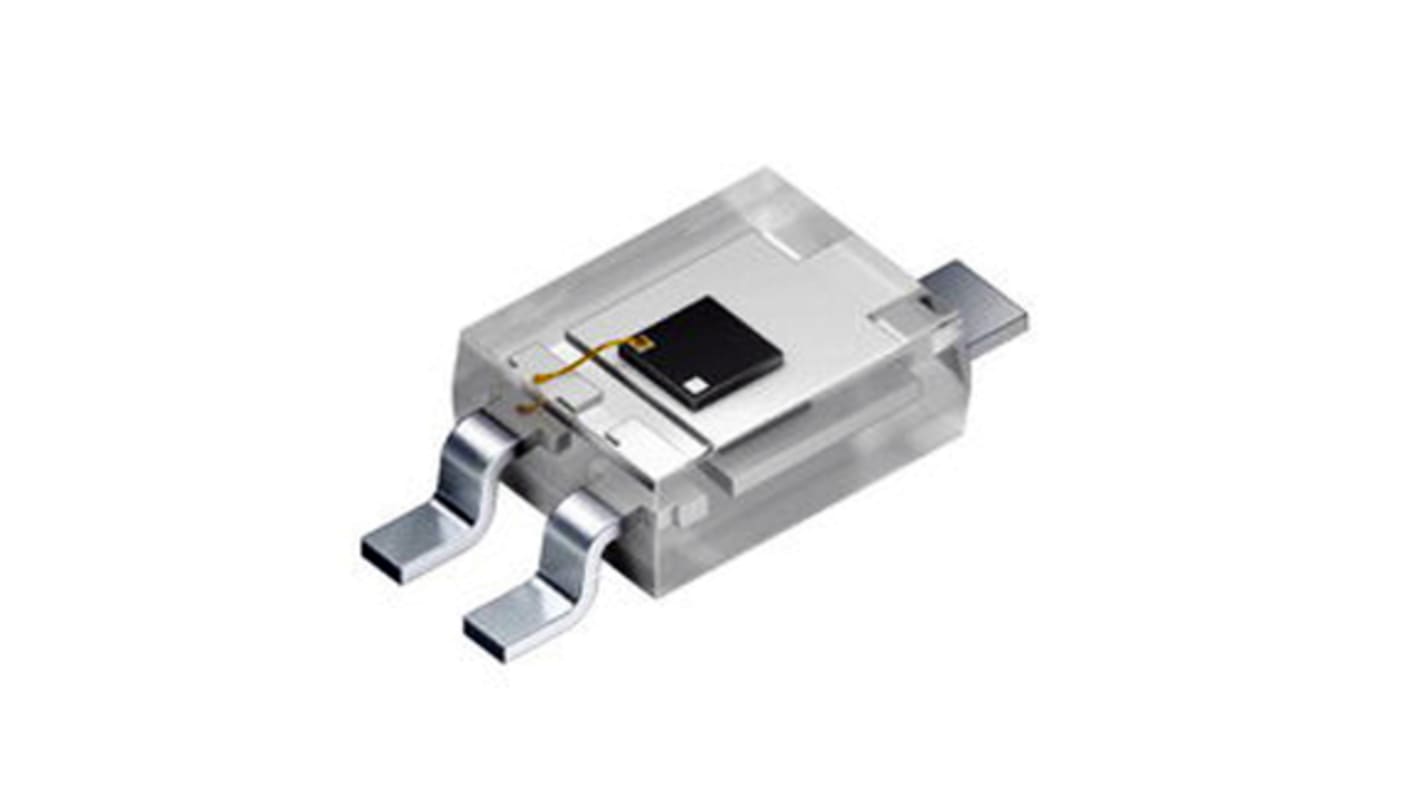

SFH 3410-Z ams OSRAM, 120 ° Full Spectrum Phototransistor, Surface Mount 3-Pin DIP package
- RS Stock No.:
- 497-5352
- Mfr. Part No.:
- SFH 3410-Z
- Manufacturer:
- ams OSRAM
Temporarily out of stock - back order for despatch 15/08/2024, delivery within 6 working days
Added
Price (VAT excluded) Each (In a Pack of 5)
TWD33.80
(exc. GST)
TWD35.49
(inc. GST)
| Units | Per unit | Per Pack* |
| 5 + | TWD33.80 | TWD169.00 |
| *price indicative | ||
- RS Stock No.:
- 497-5352
- Mfr. Part No.:
- SFH 3410-Z
- Manufacturer:
- ams OSRAM
Product overview and Technical data sheets
Legislation and Compliance
Product Details
Ambient Light Sensors - Vlambda
A range of NPN silicon phototransistors from OSRAM Opto Semiconductors, with improved V lambda characteristics. These compact phototransistors are suitable for a wide range of applications including; ambient light detectors, exposure meters for both daylight and artificial light, sensor for backlight dimming and for control and drive circuits.
Adapted to human eye sensitivity (Vλ)
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
Ambient Light Sensors, OSRAM Opto Semiconductors
Specifications
Attribute | Value |
|---|---|
| Spectrums Detected | Infrared, Ultraviolet, Visible Light |
| Number of Channels | 1 |
| Maximum Light Current | 3.2µA |
| Maximum Dark Current | 3nA |
| Angle of Half Sensitivity | 120 ° |
| Polarity | NPN |
| Number of Pins | 3 |
| Mounting Type | Surface Mount |
| Package Type | DIP |
| Dimensions | 2.1 x 2.7 x 1.05mm |
| Collector Current | 20mA |
| Spectral Range of Sensitivity | 350 → 970 nm |
| Minimum Wavelength Detected | 350nm |
| Maximum Wavelength Detected | 970nm |
| Height | 1.05mm |
| Length | 2.1mm |
| Width | 2.7mm |
