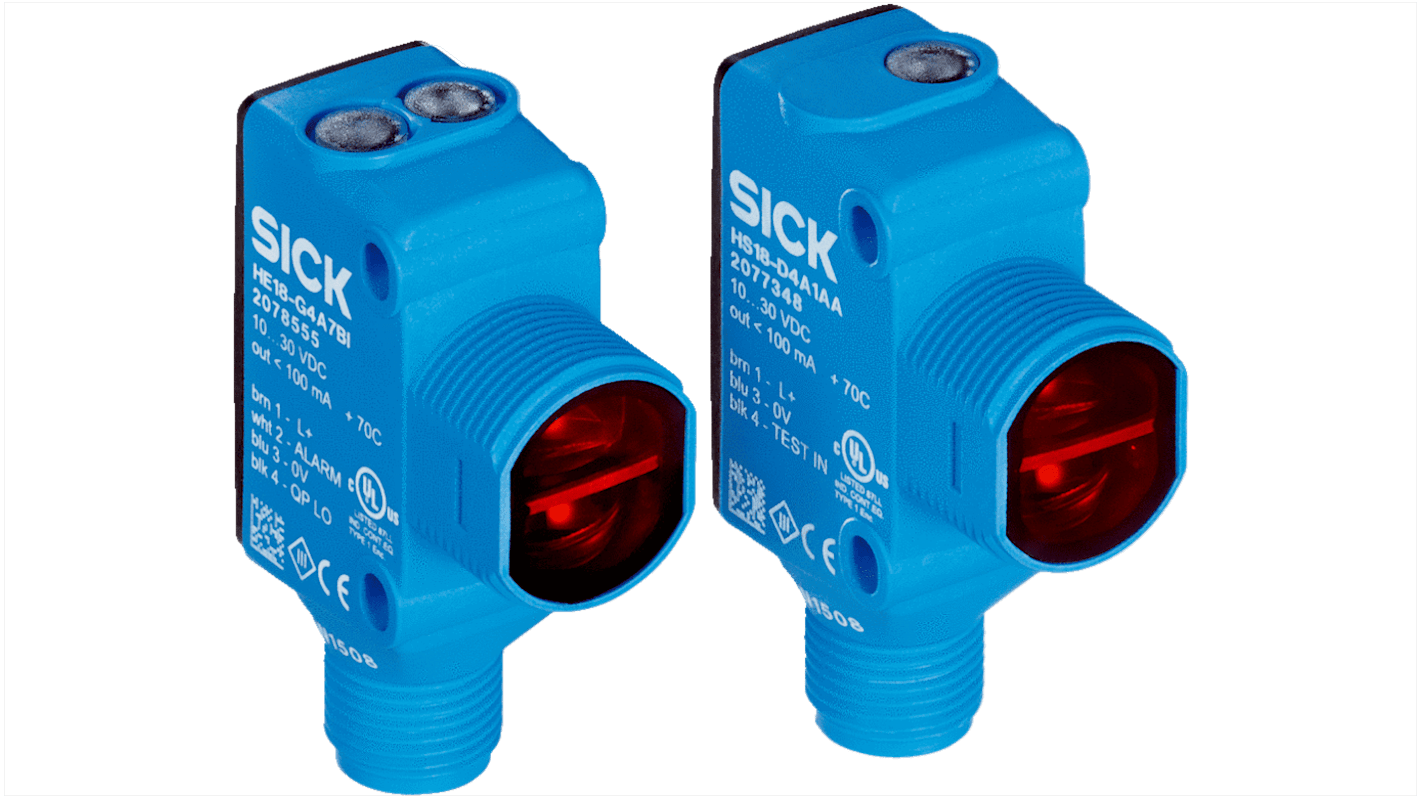

SICK Through Beam Photoelectric Sensor, Barrel Sensor

RS Stock No.:: 266-8151
Mfr. Part No.:: HSE18-P4A1BB
Manufacturer:: SICK

Subtotal (1 unit)*

TWD8,511.00

(exc. GST)

TWD8,936.55

(inc. GST)

FREE delivery for orders over NT$1,300.00

Temporarily out of stock

Shipping from May 14, 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	TWD8,511.00

*price indicative

RS Stock No.:: 266-8151
Mfr. Part No.:: HSE18-P4A1BB
Manufacturer:: SICK

Specifications

Product overview and Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	SICK
	Sensor Style	Barrel
	Product Type	Photoelectric Sensor
	Detection Type	Through Beam
	Output Type	PNP
	Terminal Type	4-Pin M12
	Maximum DC Voltage	30V dc
	Interface Type	4-Pin Connector
	Light Source	LED
	IP Rating	IP69K, IP67
	Minimum Operating Temperature	-40°C
	Maximum Current	20mA
	Maximum Operating Temperature	70°C
	Standards/Approvals	CE, cULus, ECOLAB
	Response Time	0.5ms
	Hazardous Area Certification	No
	Housing Material	Plastic, Vistal
	Mount Type	Threaded
	Series	HSE18
	Thread Size	M12
	Detection Range	0 → 20 mm

	Select all
	Brand SICK
	Sensor Style Barrel
	Product Type Photoelectric Sensor
	Detection Type Through Beam
	Output Type PNP
	Terminal Type 4-Pin M12
	Maximum DC Voltage 30V dc
	Interface Type 4-Pin Connector
	Light Source LED
	IP Rating IP69K, IP67
	Minimum Operating Temperature -40°C
	Maximum Current 20mA
	Maximum Operating Temperature 70°C
	Standards/Approvals CE, cULus, ECOLAB
	Response Time 0.5ms
	Hazardous Area Certification No
	Housing Material Plastic, Vistal
	Mount Type Threaded
	Series HSE18
	Thread Size M12
	Detection Range 0 → 20 mm

Datasheet - HSE18-P4A1BB

COO (Country of Origin):: US

Overview

The SureSense family of photoelectric sensors provides reliable detection of virtually any object in any environment. This versatility allows detection of the very basic to most difficult objects including black, shiny, transparent, varying color and more. SureSense does this by providing best-in-class performance along with an extremely broad offering of sensing options, output types and advanced features.

An intuitive signal strength light bar makes installation and troubleshooting easier than ever. All this cutting edge technology is built into a VISTAL™ housing, which is 9 times stronger than ABS housings.

At a glance

The most flexible and complete portfolio of hybrid sensors

New and intuitive light strip

Best background suppression in the sector

Detection of transparent objects with Auto Adapt technology

VISTAL housing

Your Benefit

Solve the vast majority of a customer's applications with a single sensor family

Standardize mounting designs, accessories, set-up procedures and suppliers

Fast and simple alignment during installation

Continuous indication of signal strength

Reliably sense objects of varying colors and materials

Transparent object detection in tough environments with minimal need for additional cleaning

Reduce replacement costs and down time due to damages during installation or use

Applications

Machines with a wide variety of detection tasks

Detection of transparent objects

Detection of objects with a wide variety of colors

Applications with AC power supply

Detection of small objects and through small openings

OEM machine construction (e.g., packaging industry, consumer goods, wood processing, etc.)
