Siretta ALPHA11/1M/SMAM/S/S/20 Blade Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE

RS Stock No.:: 124-8661
Mfr. Part No.:: ALPHA11/1M/SMAM/S/S/20
Manufacturer:: Siretta

Siretta ALPHA11/1M/SMAM/S/S/20 Blade Multiband Antenna with SMA Connector, 2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE

Temporarily out of stock - back order for despatch 24/06/2024, delivery within 6 working days

Added

Price (VAT excluded) Each

TWD380.00

(exc. GST)

TWD399.00

(inc. GST)

Units	Per unit
1 - 9	TWD380.00
10 - 49	TWD370.00
50 +	TWD333.00

RS Stock No.:: 124-8661
Mfr. Part No.:: ALPHA11/1M/SMAM/S/S/20
Manufacturer:: Siretta

Product overview and Technical data sheets

ALPHA11 Antenna Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

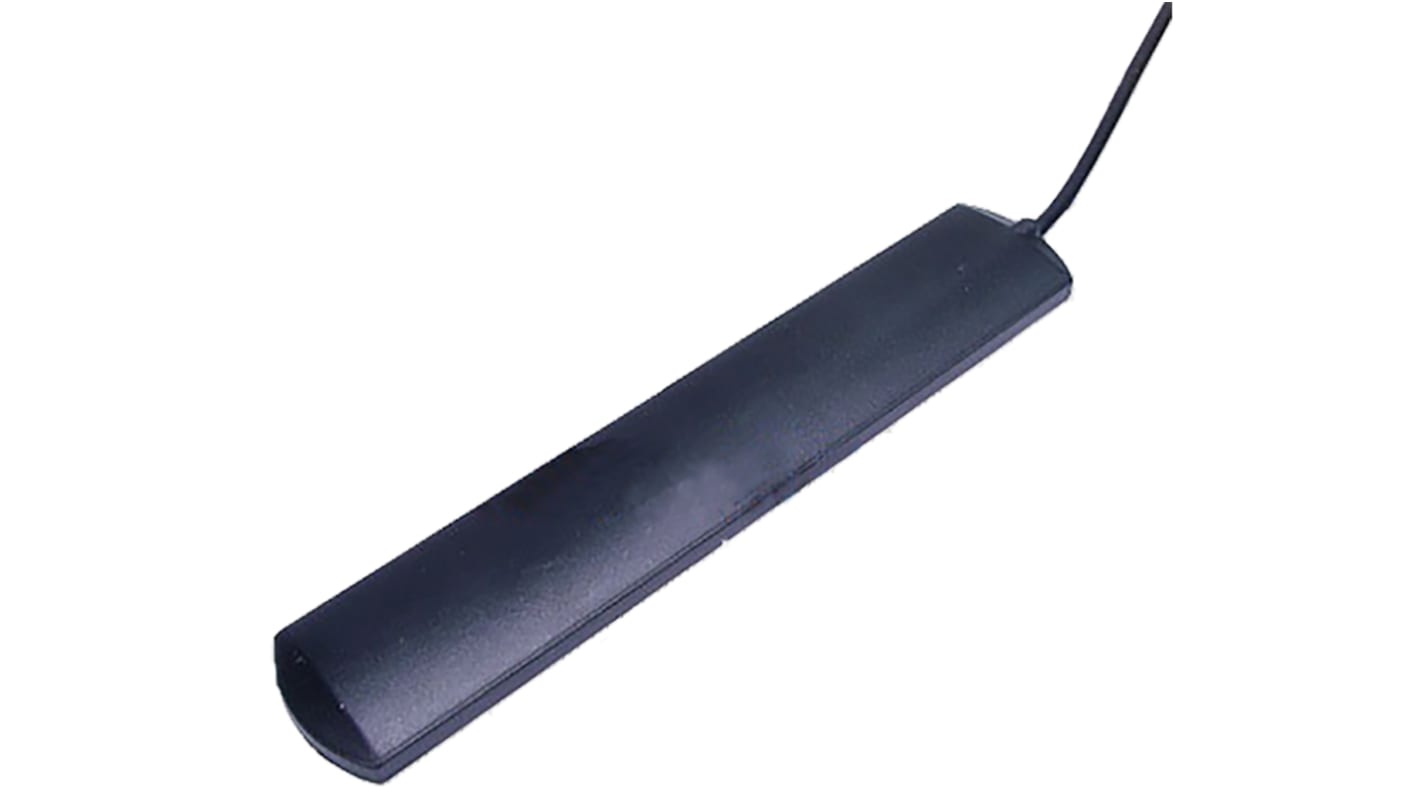

ALPHA 11 Quad Band Flat Blade Antenna, Siretta

The ALPHA 11 is a slim, flat blade antenna from Siretta with quad band for GSM/GPRS, 2G and 3G/UMTS. You can attach the antenna to most surfaces, in most environments, with an easy peel adhesive on the base.

Features & Benefits of the ALPHA 11
•2.5 dBi peak gain
•2.5 m RG174 coaxial cable with a SMA male connector
•-40° C to +85° C operating temperature range
•50 ohm impedance
•Vertical / omnidirectional polarization
•850, 900, 1800, 1900 MHz GSM/GPRS
•2.1 GHz 3G
•868 MHz ISM
•115 mm x 22 mm x 4 mm

Mobile Communication Antenna (GSM/GPRS/2G/3G/4G), Siretta

Specifications

Attribute	Value
RF Protocols	2G (GSM/GPRS), 3G (UTMS), 4G, 4G (LTE Cat-M), 4G (LTE) 5G (LTE), Bluetooth (BLE), Cat-M, LoRaWAN, NB IoT, WiFi, WiFi (Dual Band)
Frequency Range	880 → 6000 Mhz
Connector Type	SMA
Gain	2.5dBi
Internal/External	Internal
Antenna Mounting Type	Adhesive
Antenna Physical Form	Blade
Series	Alpha 11
Lead Length	1m
Antenna Directivity	Omnidirectional
Includes Lead	Yes
Connector Gender	Male
