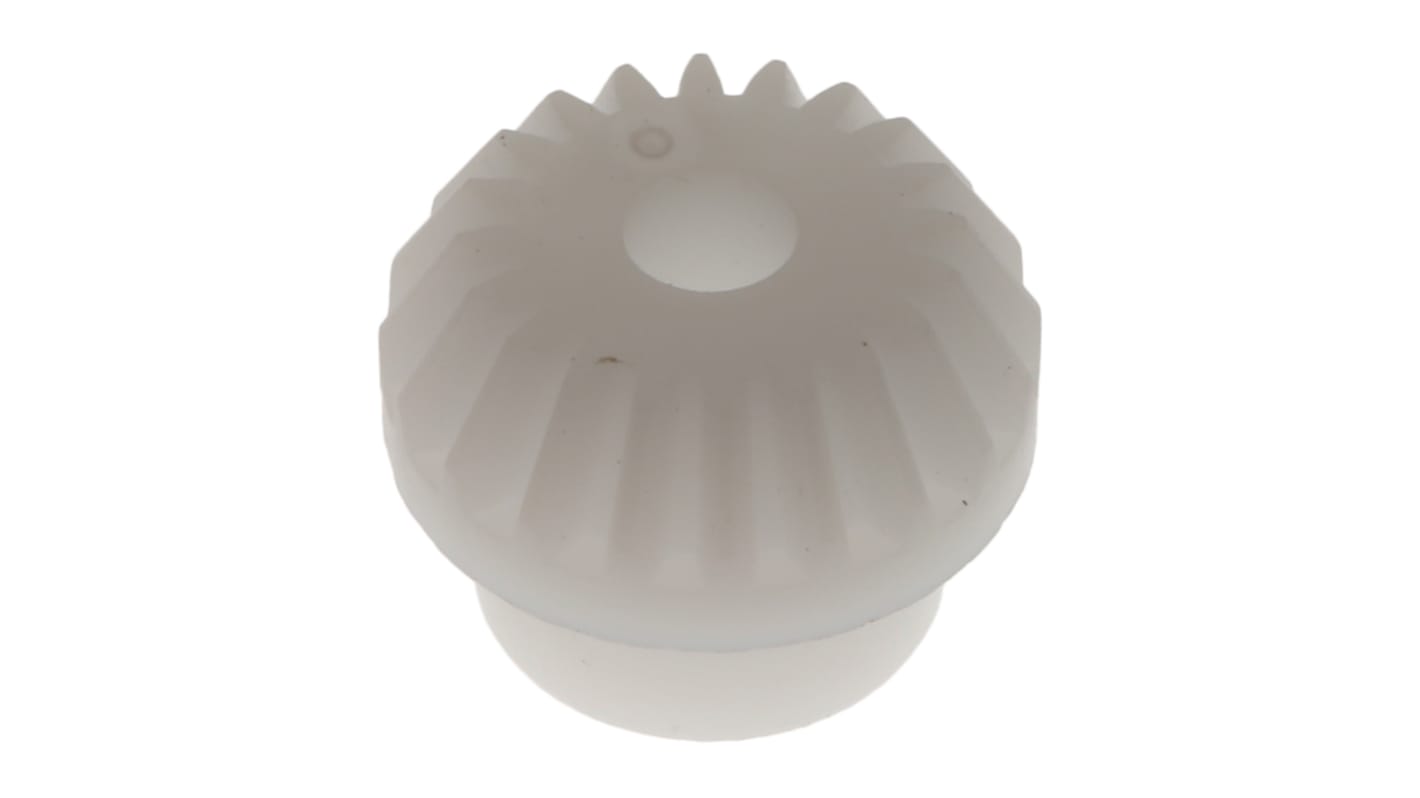

RS PRO POM Bevel Gear, 3mm Bore, 20 Teeth, 0.5 Module
- RS Stock No.:
- 521-6092
- Manufacturer:
- RS PRO
2 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
TWD141.00
(exc. GST)
TWD148.05
(inc. GST)
| Units | Per unit |
| 1 - 9 | TWD141.00 |
| 10 - 49 | TWD136.00 |
| 50 + | TWD111.00 |
- RS Stock No.:
- 521-6092
- Manufacturer:
- RS PRO
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Delrin Bevel Gears
Injection moulded acetal co-polymer bevel gears.
Tensile strength 75N/mm2
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Hardness (Rockwell R) 110-120
Pitch angle 63° 26' (gear) 26° 34' (pinion)
Face angle 65° 36' (gear) 30° 29' (pinion)
Note
Gears sold as a single unit, match pair with module size to give a 2:1 ratio.
Specifications
Attribute | Value |
|---|---|
| Bore | 3mm |
| Module | 0.5 |
| Gear Type | Bevel |
| Material | POM |
| Number of Teeth | 20 |
| Nominal Gear Ratio | 2:1 |
| Pitch | 0.5mm |
| Pressure Angle | 20° |
| Hardness | 110 → 120HRR |
