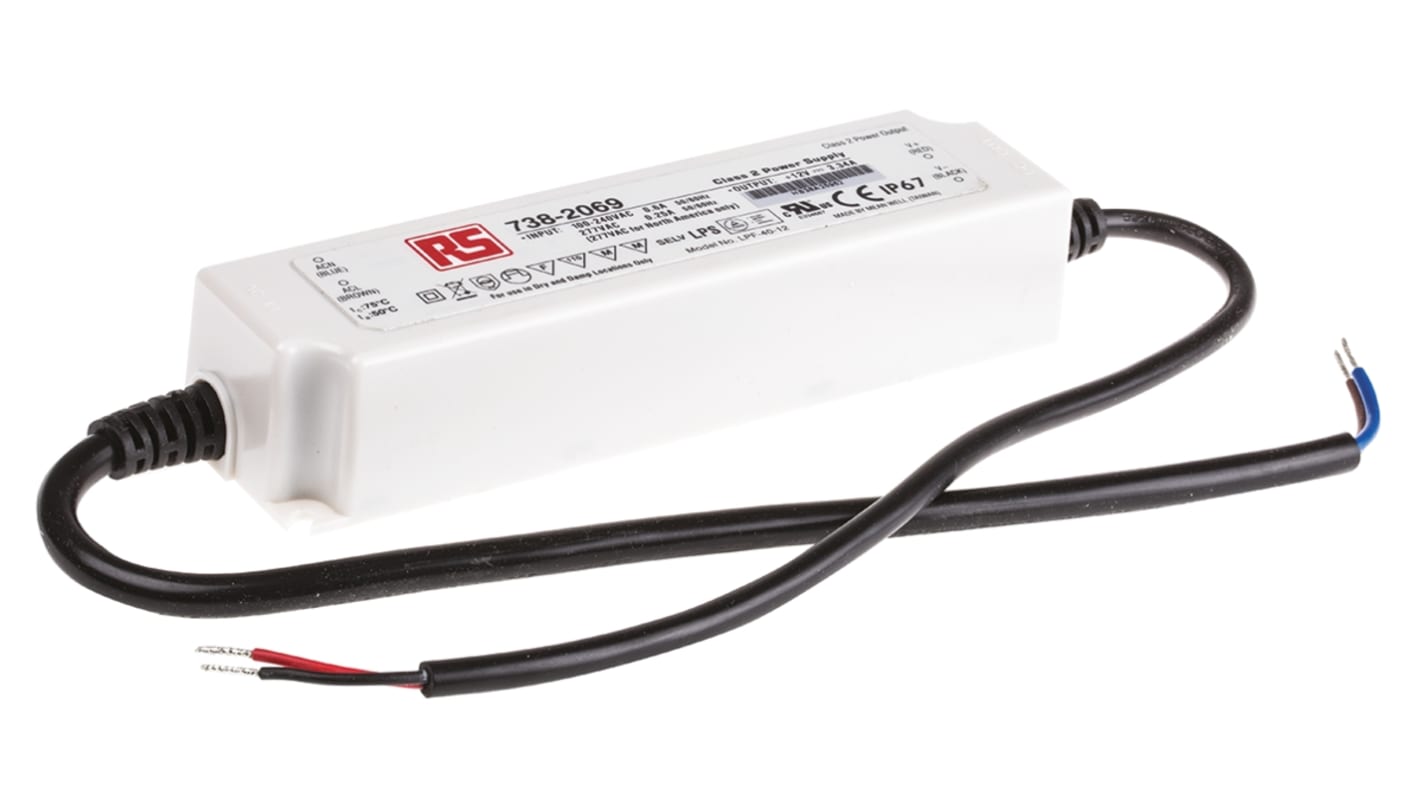

MEAN WELL LED Driver, 12V Output, 40.08W Output, 3.34A Output, Constant Voltage
- RS Stock No.:
- 738-2069
- Mfr. Part No.:
- LPF-40-12RS
- Manufacturer:
- MEAN WELL
Temporarily out of stock - back order for despatch 12/06/2024, delivery within 6 working days
Added
Price (VAT excluded) Each
TWD994.00
(exc. GST)
TWD1,043.70
(inc. GST)
| Units | Per unit |
| 1 - 4 | TWD994.00 |
| 5 - 9 | TWD964.00 |
| 10 - 24 | TWD934.00 |
| 25 - 49 | TWD913.00 |
| 50 + | TWD893.00 |
- RS Stock No.:
- 738-2069
- Mfr. Part No.:
- LPF-40-12RS
- Manufacturer:
- MEAN WELL
Product overview and Technical data sheets
Legislation and Compliance
Product Details
RS - 40W Waterproof (IP67) Constant Voltage LED Driver / Power Supply With PFC
40W IP67 waterproof constant voltage LED driver / power supply with universal AC input. These fully encapsulated IP67 waterproof LED drivers / power supplies have a built in active PFC function and a fully isolated plastic case. Suitable applications for these IP67 LED drivers / power supplies include LED lighting and moving applications and can be used in dry or damp locations.
Full range universal AC input
Fully encapsulated to IP67 level
Free air convection cooling
Built in active PFC function
Fully isolated plastic case
High efficiency of up to 89%
Short circuit, overload, over voltage and over temperature protection
Compliance to worldwide safety regulations for lighting
EMC compliance to EN55015
Harmonic current compliance to EN61000-3-2 Class C (≥60% load) ; EN61000-3-3
Fully encapsulated to IP67 level
Free air convection cooling
Built in active PFC function
Fully isolated plastic case
High efficiency of up to 89%
Short circuit, overload, over voltage and over temperature protection
Compliance to worldwide safety regulations for lighting
EMC compliance to EN55015
Harmonic current compliance to EN61000-3-2 Class C (≥60% load) ; EN61000-3-3
Note
For Industrial Use Only, not in scope of Regulation (EC) No 125/2009.
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature
MTBF to MIL-HDBK-217F
Derate output above 50°C operating temperature
Standards
UL8750, EN61347-1, EN61347-2-13 independent, IP67 approved ; Design refer to UL60950-1, TUV EN60950-1
Approvals
cULs, TUV
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V |
| Maximum Output Power | 40.08W |
| Output Current | 3.34A |
| Dimmable | No |
| Input Voltage | 127 → 431 V dc, 90 → 305 V ac |
| Operation | Constant Voltage |
| LED Driver Type | LED Driver |
| AC or DC Input Voltage | ac, dc |
| IP Rating | IP67 |
| Number of Outputs | 1 |
| Voltage Rating | 127 → 431 V dc, 90 → 305 V ac |
