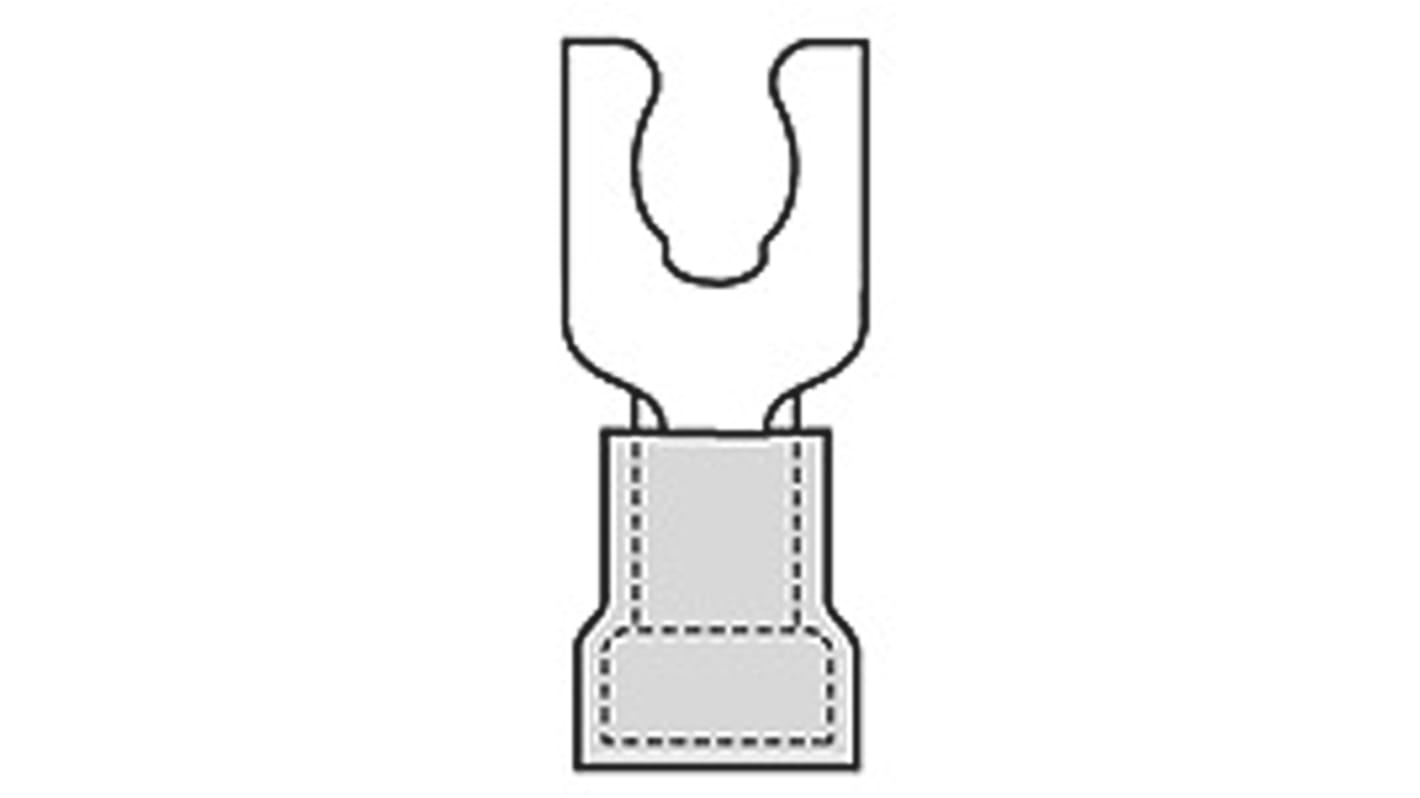

Molex, 19115 Insulated Crimp Spade Connector, 22AWG to 18AWG, M3.5 (#6) Stud Size Nylon, Red
- RS Stock No.:
- 822-1261
- Mfr. Part No.:
- 19115-0009
- Manufacturer:
- Molex
11600 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each (In a Pack of 100)
TWD6.30
(exc. GST)
TWD6.62
(inc. GST)
| Units | Per unit | Per Pack* |
| 100 - 400 | TWD6.30 | TWD630.00 |
| 500 - 900 | TWD6.10 | TWD610.00 |
| 1000 - 2400 | TWD6.00 | TWD600.00 |
| 2500 - 4900 | TWD5.80 | TWD580.00 |
| 5000 + | TWD5.70 | TWD570.00 |
| *price indicative | ||
- RS Stock No.:
- 822-1261
- Mfr. Part No.:
- 19115-0009
- Manufacturer:
- Molex
Product overview and Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
Molex Avikrimp™ Spade Terminals
These spade connector terminals are nylon insulated made of copper with tin plating. Offer you the ultimate in high-performance terminal design and rugged construction. A funnel ferrule wire entrance into the barrel prevents wire strand "fold back". Block, snap or flange type. Various wire sizes and colours available.
Approvals
CSA, UL
Specifications
Attribute | Value |
|---|---|
| Series | 19115 |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Width | 6.48mm |
| Minimum Wire Size AWG | 22AWG |
| Shrouded/Unshrouded | Shrouded |
| Maximum Wire Size AWG | 18AWG |
| Stud Size | M3.5 (#6) |
| Colour | Red |
| Overall Length | 20.6mm |
| Contact Plating | Tin |
| Contact Material | Copper |
