Diodes Inc ZTX605 NPN Darlington Transistor, 1 A 120 V HFE:500, 3-Pin E-Line

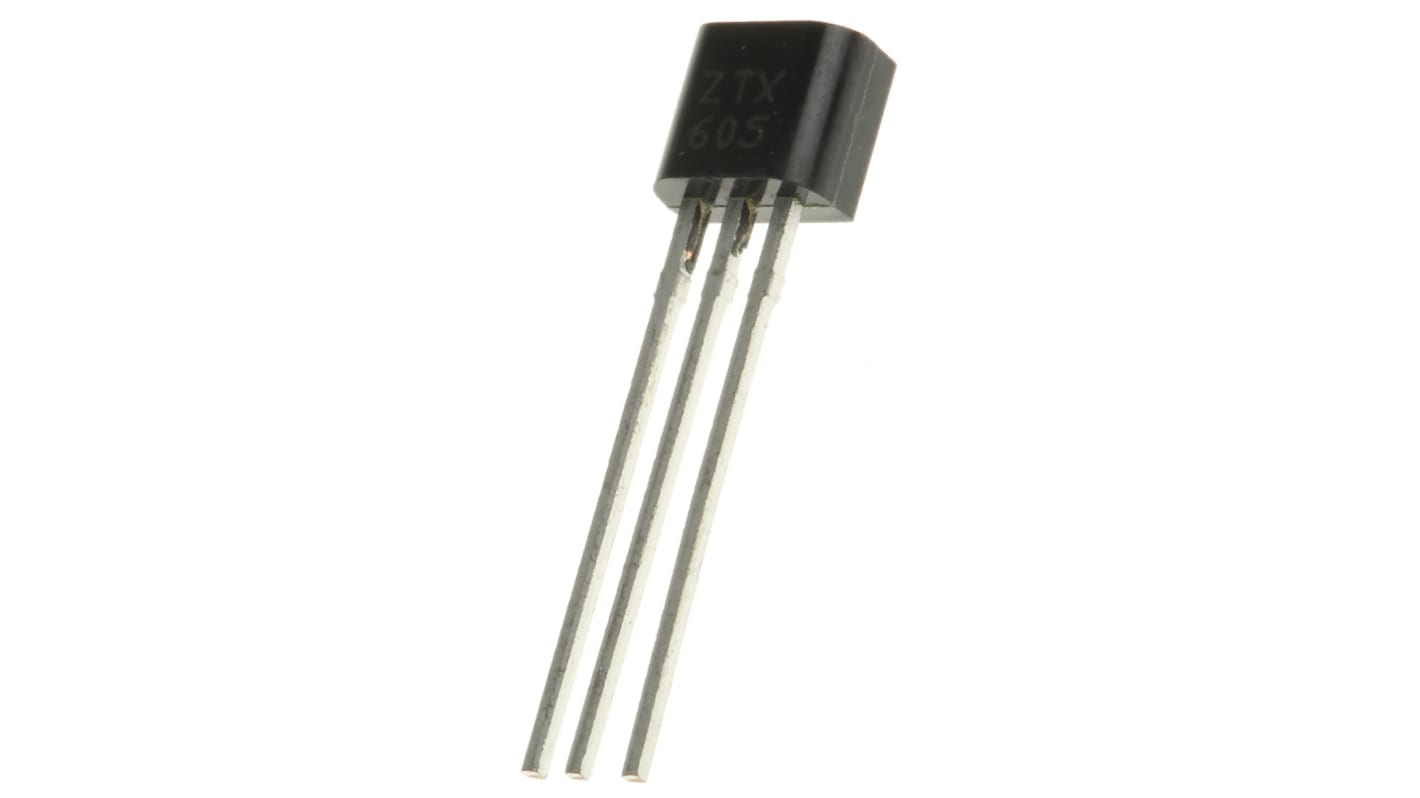

The image is for reference only, please refer to product details and specifications

Bulk discount available

Subtotal (1 pack of 5 units)**

TWD81.00

(exc. GST)

TWD85.05

(inc. GST)

65 In stock for delivery within 6 working days*

* Delivery dates may change based on your chosen quantity and delivery address.

Real time qty checker

**price indicative

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	DiodesZetex
	Transistor Type	NPN
	Maximum Continuous Collector Current	1 A
	Maximum Collector Emitter Voltage	120 V
	Maximum Emitter Base Voltage	10 V
	Package Type	E-Line
	Mounting Type	Through Hole
	Pin Count	3
	Transistor Configuration	Single
	Number of Elements per Chip	1
	Minimum DC Current Gain	500
	Maximum Base Emitter Saturation Voltage	1.8 V
	Maximum Collector Base Voltage	140 V
	Maximum Collector Emitter Saturation Voltage	1.5 V
	Maximum Collector Cut-off Current	0.00001mA
	Width	2.41mm
	Minimum Operating Temperature	-55 °C
	Dimensions	4.77 x 2.41 x 4.01mm
	Height	4.01mm
	Length	4.77mm
	Maximum Operating Temperature	+200 °C

	Select all
	Brand DiodesZetex
	Transistor Type NPN
	Maximum Continuous Collector Current 1 A
	Maximum Collector Emitter Voltage 120 V
	Maximum Emitter Base Voltage 10 V
	Package Type E-Line
	Mounting Type Through Hole
	Pin Count 3
	Transistor Configuration Single
	Number of Elements per Chip 1
	Minimum DC Current Gain 500
	Maximum Base Emitter Saturation Voltage 1.8 V
	Maximum Collector Base Voltage 140 V
	Maximum Collector Emitter Saturation Voltage 1.5 V
	Maximum Collector Cut-off Current 0.00001mA
	Width 2.41mm
	Minimum Operating Temperature -55 °C
	Dimensions 4.77 x 2.41 x 4.01mm
	Height 4.01mm
	Length 4.77mm
	Maximum Operating Temperature +200 °C
