Product Details

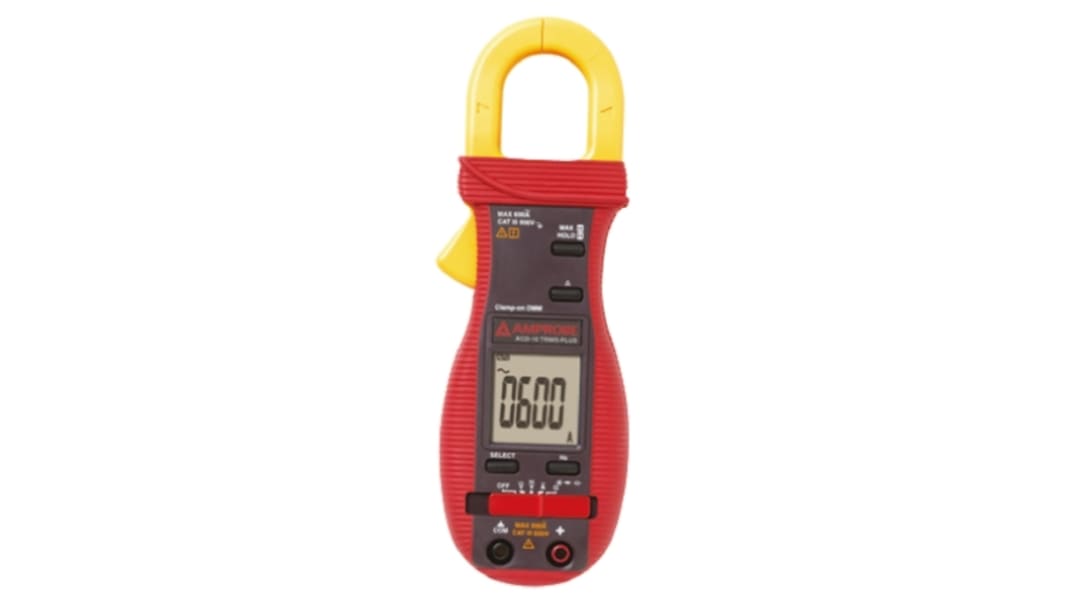

ACD-10 PLUS 600A Clamp Meter
The ACD-10 PLUS Current clamp meter offers thinner jaws over standard clamp meters. The digital clamp meter takes AC/DC measurements and offers Capacitance and Frequency.
The clamp meter also offers thinner jaws over standard clamp meters allowing access to tight areas and still accommodates conductors up to 26mm
AC and DC Voltage to 600V
AC Current to 600A
Thin Jaws, only 10mm thick
Resistance to 40MΩ
Continuity Buzzer
Capacitance to 3000 μF
Frequency measurement
In rush current
Hold and Maximum reading functions
Accommodates conductors up to 26mm in diameter
Auto ranging
Auto power off
Rubber over-molded case
Overload protected
AC and DC Voltage to 600V
AC Current to 600A
Thin Jaws, only 10mm thick
Resistance to 40MΩ
Continuity Buzzer
Capacitance to 3000 μF
Frequency measurement
In rush current
Hold and Maximum reading functions
Accommodates conductors up to 26mm in diameter
Auto ranging
Auto power off
Rubber over-molded case
Overload protected
Supplied with
Test leads, battery installed, soft carrying pouch and users manual
Specifications
Attribute | Value |
---|---|
Absolute Maximum AC Current Measurement | 600A ac |
Absolute Maximum AC Voltage Measurement | 600V ac |
Absolute Maximum DC Voltage Measurement | 600V dc |
Absolute Maximum Resistance Measurement | 40MΩ |
Model Number | ACD-10 PLUS |
Clamp Meter Type | AC/DC Clamp Meter |
Best AC Current Accuracy | ±(1.5% rdg + 8dgts) |
Best AC Voltage Accuracy | ±(1.5% rdg + 5dgts) |
Functions Measured | AC Current, AC Voltage, DC Voltage, Resistance |
Jaw Capacity Busbars | 26mm |
Best DC Voltage Accuracy | ±(0.3% rdg + 4dgts) |
Maximum Conductor Size | 26mm |
Weight | 139g |
Safety Category Level | CAT III |
Height | 32mm |
Minimum Operating Temperature | 0°C |
Dimensions | 190 x 63 x 32mm |
Length | 190mm |
Width | 63mm |
Power Source | Battery |
Battery Type | 3 V Coin Battery |
Safety Category Voltage | 600V |
Maximum Operating Temperature | +40°C |
Best Resistance Measurement Accuracy | ±2% + 4 Digits |
Safety Category | CAT III 600V |
Display Type | LCD |
