ALWAYSE Ball Transfer Unit with 6.4mm diameter Stainless Steel ball Stainless Steel ball

RS Stock No.:: 743-1414
Mfr. Part No.:: 11MI-06-17
Manufacturer:: ALWAYSE

ALWAYSE Ball Transfer Unit with 6.4mm diameter Stainless Steel ball Stainless Steel ball

48 In stock for delivery within 6 working days

Added

Price (VAT excluded) Each

TWD580.00

(exc. GST)

TWD609.00

(inc. GST)

Units	Per unit
1 - 5	TWD580.00
6 - 11	TWD557.00
12 +	TWD533.00

RS Stock No.:: 743-1414
Mfr. Part No.:: 11MI-06-17
Manufacturer:: ALWAYSE

Product overview and Technical data sheets

Mini Ball Transfer Units Data Sheet

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

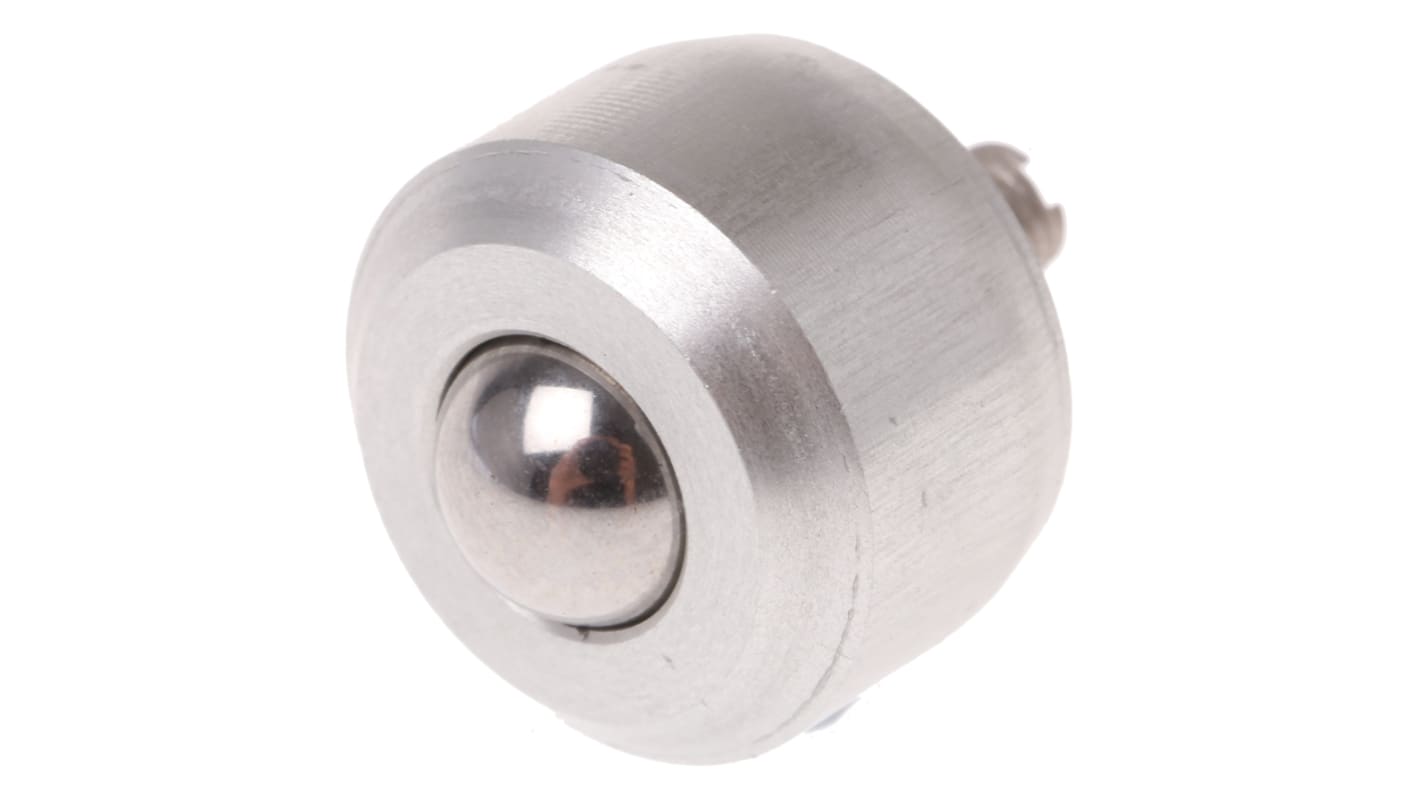

ALWAYSE Mini Ball Transfer Unit

The ALWAYSE stud mount mini ball transfer unit is a highly efficient device with a maximum load capacity is 10kg. This unit is used to move or transfer loads in all direction. Engineered with precision and features coarse metric threads.

Note:
Please refer to the manufacturer’s datasheet for each mini ball transfer unit’s technical specification.

Features and Benefits

Ball diameter is 6.4mm
Case material is aluminium
Load ball and small ball material is stainless steel
Material of housing outer cover is aluminium and screw thread is stainless steel
Stud diameter is M3
Stud length is 6mm

Applications

Clean room equipment's
Lightweight mini turntables
Measuring equipment
Small linear motion guides
Other miniature mechanisms

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Specifications

Attribute	Value
Ball Diameter	6.4mm
Mounting Type	Stud
Maximum Load	10kg
Load Ball Material	Stainless Steel
Small Ball Material	Stainless Steel
Case Material	Aluminium
Stud Diameter	M3
Stud Length	6mm
