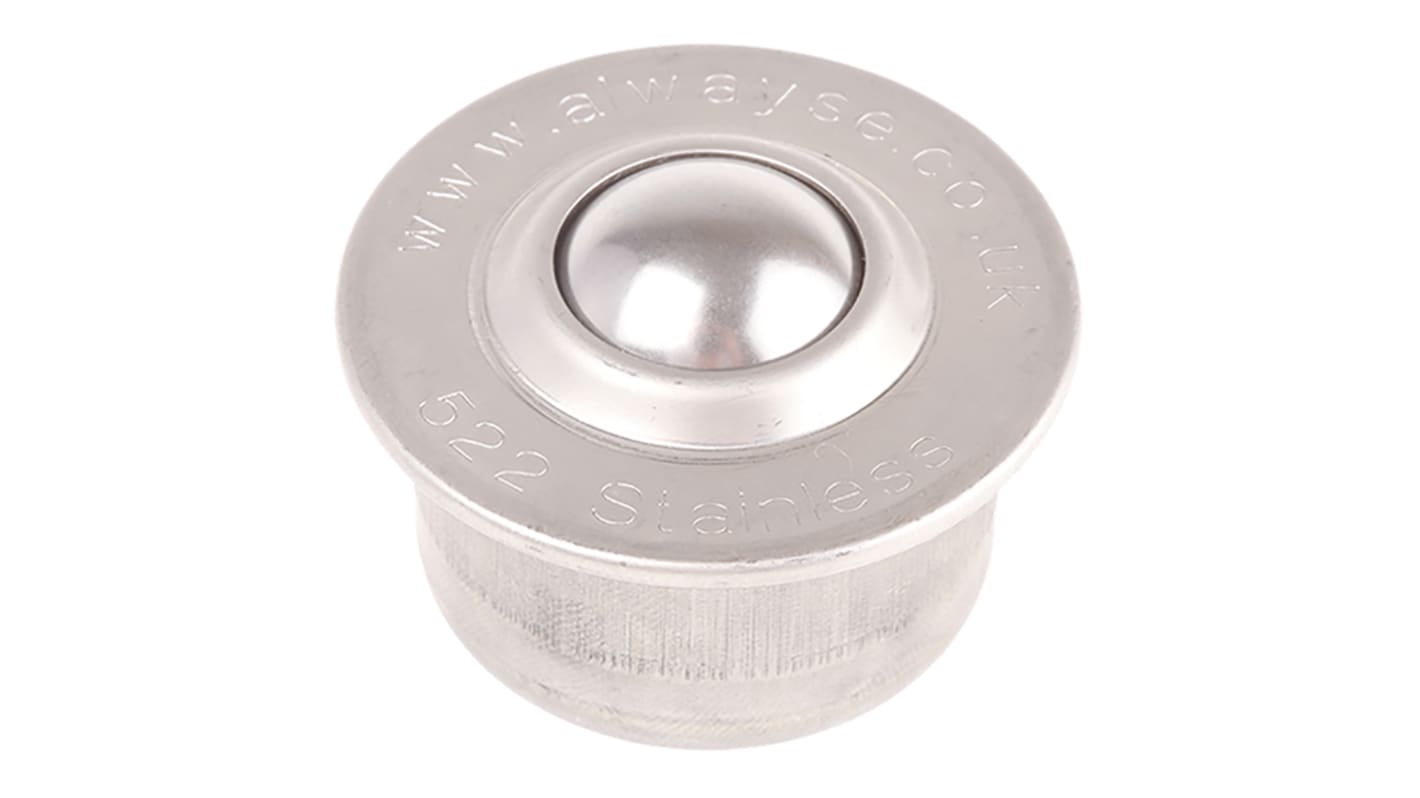

ALWAYSE Ball Transfer Unit with 22mm diameter Stainless Steel ball
- RS Stock No.:
- 687-988
- Mfr. Part No.:
- 522015
- Manufacturer:
- ALWAYSE
72 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
Was TWD830.00
You pay
TWD372.00
(exc. GST)
TWD390.60
(inc. GST)
| Units | Per unit |
| 1 - 5 | TWD372.00 |
| 6 - 24 | TWD365.00 |
| 25 + | TWD357.00 |
- RS Stock No.:
- 687-988
- Mfr. Part No.:
- 522015
- Manufacturer:
- ALWAYSE
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Euro Ball Transfer Unit
Pre-lubricated ball transfer units to move or transfer loads in all directions. Max speed 1m/sec. Available in a wide choice of load capacities, sizes and fixings. Operating temperatures -30°C to 70°C (continuous use, depending on seals used).
Features and Benefits
Main bearing cup toughened steel
Felt or plastic seal (except 15mm)
Self-cleaning hole
Flange type fitting
Felt or plastic seal (except 15mm)
Self-cleaning hole
Flange type fitting
Fixing Clip
Fixing clips that allow fixing from either the top side of a ball deck or the underside. Suitable for deck thicknesses up to 4mm.
Stainless Steel or Mild Steel, Zinc Plated
Specifications
Attribute | Value |
|---|---|
| Ball Diameter | 22mm |
| Mounting Type | Circular Flange |
| Maximum Load | 90kg |
| Load Ball Material | Stainless Steel |
| Case Material | Stainless Steel |
| Flange Diameter | 45mm |
