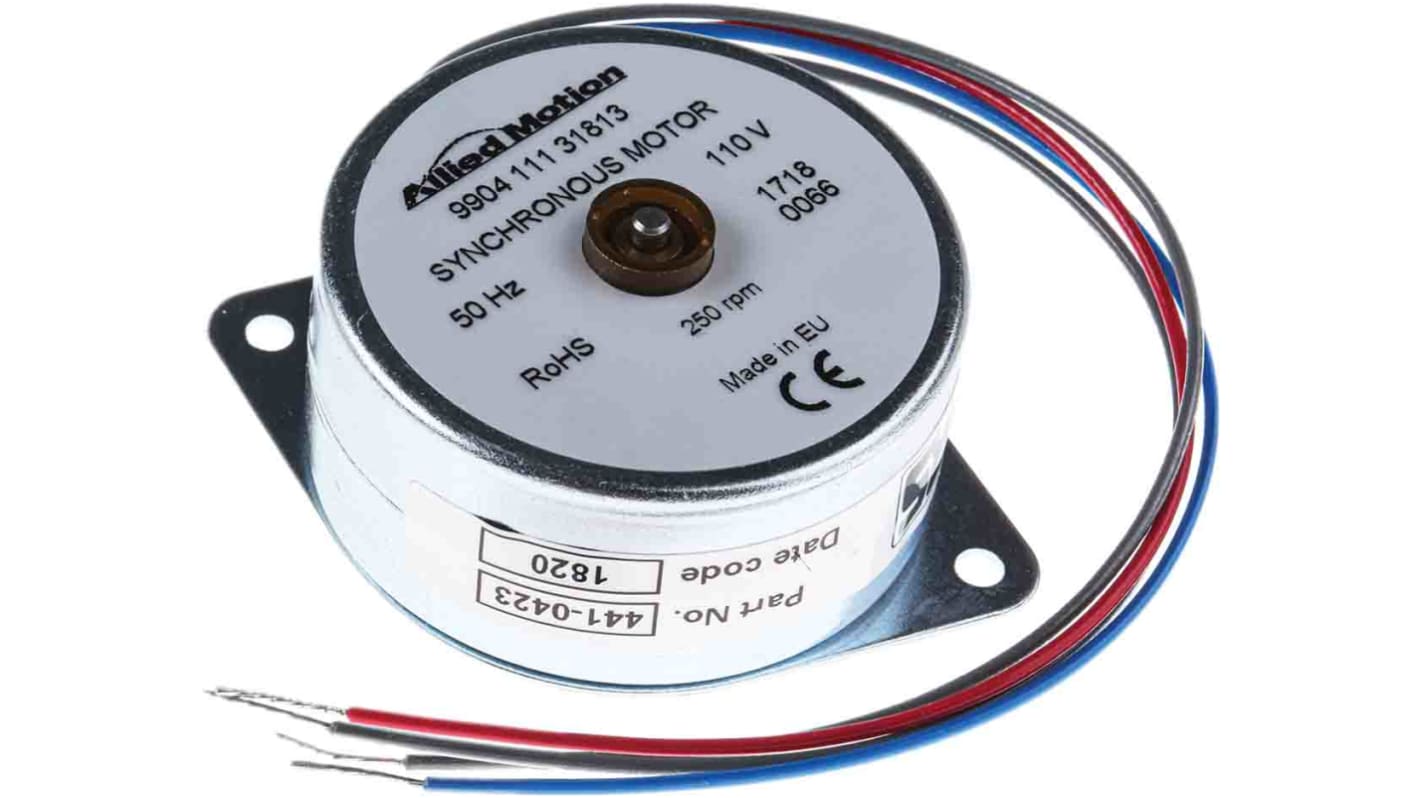

McLennan 9904 Reversible Synchronous AC Motor, 1.8 W, 1 Phase, 24 Pole, 110 V, Flange Mount Mounting
- RS Stock No.:
- 441-0423
- Mfr. Part No.:
- 9904 111 31813
- Manufacturer:
- McLennan Servo Supplies
5 In stock for delivery within 6 working days
Added
Price (VAT excluded) Each
Was TWD3,772.00
You pay
TWD2,422.00
(exc. GST)
TWD2,543.10
(inc. GST)
| Units | Per unit |
| 1 + | TWD2,422.00 |
- RS Stock No.:
- 441-0423
- Mfr. Part No.:
- 9904 111 31813
- Manufacturer:
- McLennan Servo Supplies
Product overview and Technical data sheets
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- NL
Product Details
Record Deck Synchronous Motor
Specialist motor designed for belt driven record decks
Low speed - 250 rpm @ 50Hz
Special rotor for low vibration and low audible noise
Suitable for 110Vac, for 220Vac operation requires a 6.8KΩ resistor
Low speed - 250 rpm @ 50Hz
Special rotor for low vibration and low audible noise
Suitable for 110Vac, for 220Vac operation requires a 6.8KΩ resistor
AC Synchronous Motors
These synchronous motors are for direct driving from an a.c. supply. Ideally suited for time driving in instrumentation, machine and process control. The smaller units can be directly connected to the synchronous gearboxes (typical stock no. 332-868 etc).
Specifications
Attribute | Value |
|---|---|
| Power Rating | 1.8 W |
| AC Motor Type | Synchronous |
| Supply Voltage | 110 V ac |
| Phase | 1 |
| Output Speed | 250 rpm @ 230 V |
| Number of Poles | 24 |
| Mounting Type | Flange Mount |
| Shaft Diameter | 3mm |
| Shaft Length | 12.7mm |
| Length | 23.9mm |
| Rotation | Reversible |
| Maximum Output Torque | 10 mNm |
| Current Rating | 18 mA |
| Series | 9904 |
| Dimensions | 51 (Dia.) x 23.9 mm |
