LEDs - Light Emitting Diodes

We offer a comprehensive range of LEDs and LED accessories which includes visible and high brightness LEDs in all colours as well as cool, warm and neutral white. The range features leading brands such as RS Pro, OSRAM Opto Semiconductors, Avago, Lumileds, Nichia, Bivar, CREE and Lite-on.

Here are the main types of LED, all available to buy from us:

IR LEDs: infrared Light Emitting Diodes are a solid-state light that emits light in the infrared spectrum. They're a cheap and efficient way of producing infrared light. They're used in a number of electrical devices including remote controls and infrared cameras. IR LEDs are increasingly used for machine to machine (M2M) communication. Put simply, an IR LED is the same as a normal (visible) LED.
LED Light Pipes: used to transport light from an LED mounted on a circuit board to a point where the LED light is required to be visible. LED light pipes are really useful as they allow you to change the position of your LED light without changing the location of the LED itself. Most LED light pipes are panel mounted or press fit, making them easy to install. There are three main types of LED light pipes: rigid vertical, flexible and ridged right angle.
UV LEDs: Ultraviolet LEDs emit light in the UV spectrum which is visible to the human eye as a bluey purple colour. Ultraviolet LEDs can be broken down into three different types due to the differences in their wavelengths: UV-A - this style of LED has been used since the 1990s and is typically used in counterfeit detection and validation for documents such as driver's licenses, currency and documentation. UV-B - typically used for UV curing, biomedical and DNA and other types of sensing analysis sectors. UV-C - this area is still under development and is typically used for air and water purification. These are typically the most expensive type of UV LED.
Visible LEDs: a type of semiconductor that converts electricity directly into light through the movement of electrons. In common with other diodes, electricity can only flow in one direction with the cathode being indicated by a flat side on the casing and the anode having a slightly longer leg. Most LEDs are constructed from gallium arsenide phosphide. They can be affixed either via surface mount or through a hole.

The colour of the LED is changed depending on the materials used, as such they're available in a multitude of colours and in certain instances, LEDs can switch between multiple colours (Bi-colour, Tricolour and RGB red blue and green).

IR LEDs

LEDs

UV LEDs

7462 Products showing for LEDs - Light Emitting Diodes

Sort By

370 of 374

ams OSRAM Green LED SMD, LG T67F-R1T1-24-1-20-R18-Z

RS Stock No. 238-1483
Mfr. Part No. LG T67F-R1T1-24-1-20-R18-Z

Each (In a Pack of 25)

TWD5.60

Quantity

ROHM1.9 V Orange LED 3mm Through Hole, SLI-343 SLI-343DU3F

RS Stock No. 752-6534P
Mfr. Part No. SLI-343DU3F

Each (Supplied in a Bag)

TWD21.40

Quantity

Cree LED White LED 3535 SMD, XLamp XP-G XPGWHT-01-0000-00EE5

RS Stock No. 162-8036
Mfr. Part No. XPGWHT-01-0000-00EE5

Each (On a Reel of 1000)

TWD38.50

Quantity

ams OSRAM2.2 V Yellow LED PLCC 2 SMD, TOPLED Black Lens LY T66F-ABBB-46-1

RS Stock No. 688-9629P
Mfr. Part No. LY T66F-ABBB-46-1

Each (Supplied on a Reel)

TWD7.20

Quantity

ROHM Blue & Red LED 1315 (0605) SMD, SML522BUNWT86

RS Stock No. 249-1153P
Mfr. Part No. SML522BUNWT86

Each (Supplied on a Reel)

TWD24.70

Quantity

ams OSRAM2 V Red LED SMD, SIDELED LS A676-P2S1-1

RS Stock No. 654-6063
Mfr. Part No. LS A676-P2S1-1

Each (In a Pack of 25)

TWD3.30

Quantity

Cree LED3 V White LED SMD, XLamp XP-G2 XPGBWT-HE-0000-00HE7

RS Stock No. 179-0492
Mfr. Part No. XPGBWT-HE-0000-00HE7

Each (On a Reel of 1000)

TWD29.40

Quantity

Broadcom Red LED Chip LED, SMD SMD, HSMH-H190

RS Stock No. 253-9458
Mfr. Part No. HSMH-H190

Each (On a Reel of 4000)

TWD3.50

Quantity

Broadcom Green LED 3 mm SMD, HLMP-1790-A00A2

RS Stock No. 261-7474
Mfr. Part No. HLMP-1790-A00A2

Each (On a Reel of 2000)

TWD14.00

Quantity

Kingbright2.5 V Yellow LED 2012 (0805) SMD, KP-2012YC

RS Stock No. 861-0040
Mfr. Part No. KP-2012YC

Each (In a Pack of 100)

TWD3.80

Quantity

ams OSRAM2.8 V White LED SMD, GW PLLRA1.PM GW PLLRA1.PM-N4N6-XX51-1-700-R18

RS Stock No. 215-1024P
Mfr. Part No. GW PLLRA1.PM-N4N6-XX51-1-700-R18

Each (Supplied on a Reel)

TWD32.60

Quantity

Kingbright4.1 V Green LED Subminiature SMD, KM2520ZGC03

RS Stock No. 872-1689P
Mfr. Part No. KM2520ZGC03

Each (Supplied on a Reel)

TWD18.30

Quantity

SFH 4551-BWCW ams OSRAM, SFH 4551 860nm IR LED, SMD Little Star SMD package

RS Stock No. 161-1864
Mfr. Part No. SFH 4551-BWCW

Each (On a Reel of 1000)

TWD12.00

Quantity

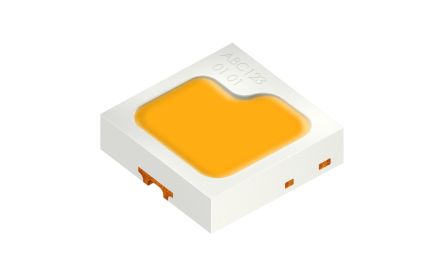

ams OSRAM3.5 V Yellow LED SMT SMD, KY DDLN31.FY KY DDLN31.FY-5H8H-5F-8E8G

RS Stock No. 556-571
Mfr. Part No. KY DDLN31.FY-5H8H-5F-8E8G

Each

TWD7.00

Quantity

Cree LED2.9 V White LED 3535 SMD, XLamp XP-G XPGWHT-L1-0000-00G53

RS Stock No. 711-8120P
Mfr. Part No. XPGWHT-L1-0000-00G53

Each (Supplied on a Reel)

TWD66.00

Quantity

ams OSRAM1.8 V Red LED 1608 (0603) SMD, SmartLED LS L29K-G1J2-1

RS Stock No. 654-5183
Mfr. Part No. LS L29K-G1J2-1

Each (In a Pack of 50)

TWD8.40

Quantity

Kingbright2.4 V Red LED 1608 (0603) SMD, KPG-0603SURC-TT

RS Stock No. 125-4489P
Mfr. Part No. KPG-0603SURC-TT

Each (Supplied on a Reel)

TWD7.90

Quantity

ams OSRAM2.5 V Red LED PLCC 4 SMD, Power TOPLED Lens LS E63F-EAFB-1-1

RS Stock No. 915-4812P
Mfr. Part No. LS E63F-EAFB-1-1

Each (Supplied on a Reel)

TWD11.70

Quantity

ams OSRAM2.65 V Yellow LED SMD, TOPLED KY DELPS1.22-UGVI-36-J3S5

RS Stock No. 161-1892P
Mfr. Part No. KY DELPS1.22-UGVI-36-J3S5

Each (Supplied on a Reel)

TWD3.70

Quantity

WL-ICLED IntCont LED Chip Comp IC RGB

RS Stock No. 146-466
Mfr. Part No. 1312020030000

Each (On a Tape of 10)

TWD24.00

Quantity
